SVAN 948 USER MANUAL
5 - 51
Saving setup in the instrument’s memory – SAVE SETUP and SAVE SETUP NEXT
The SAVE SETUP (path: MENU / FILE / SAVE SETUP) position is used for storing data in the
FLASH DISC memory of the instrument as a file (see Appendix B for the file formats). In order to enter
this position the user has to select the SAVE text in the FILE list, using the <

> (or <

>) push-button.
After the selection the <ENTER> push-button must be pressed. The additional function for results saving
(the SAVE NEXT – save a file with the name increased by one) is available after pressing the <

>, <

>
push-buttons.

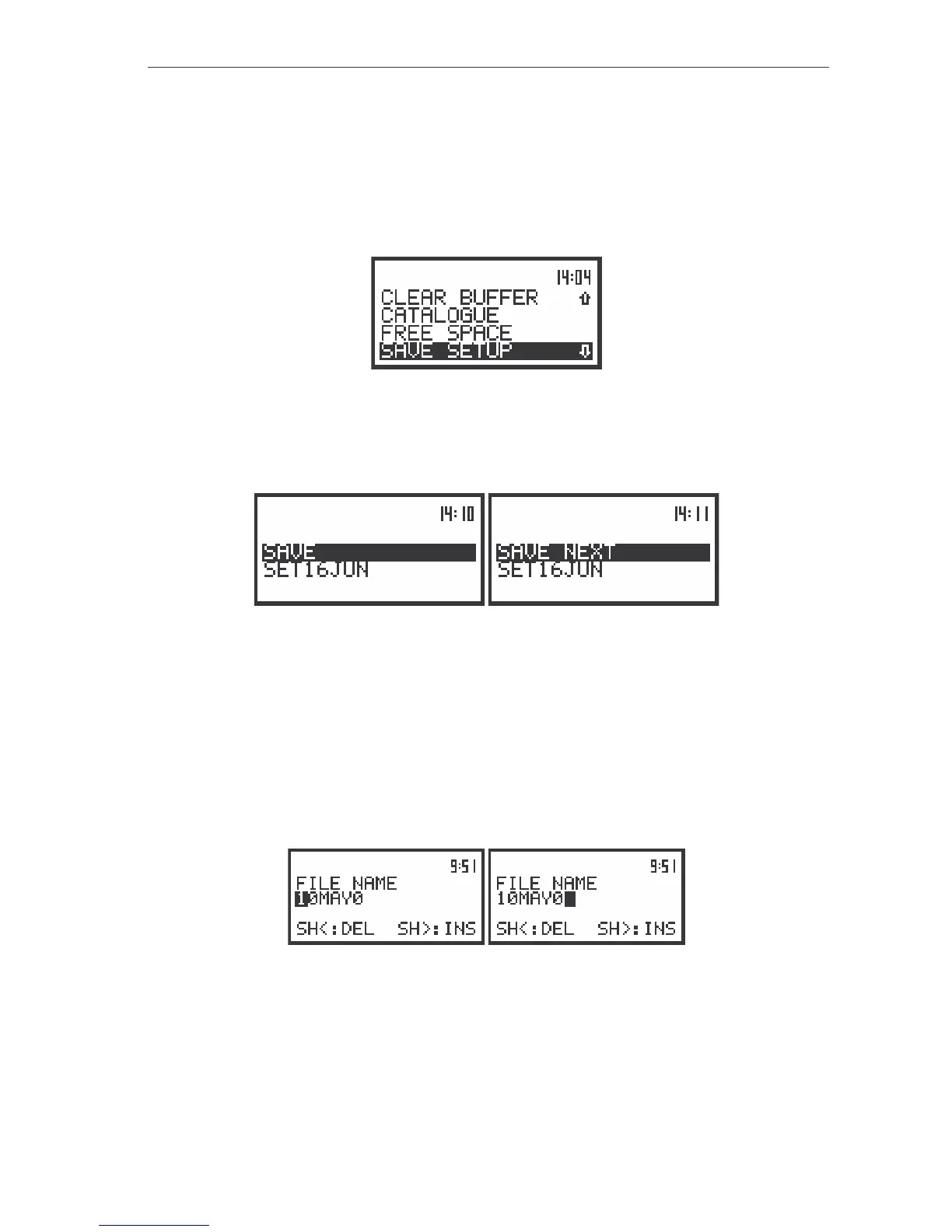

The view of the displays in the FILE sub-list with the SAVE SETUP text highlighted (displayed inversely)
The additional function for results saving (the SAVE NEXT – save a file with the name increased by
one) is available after pressing the <

>, <

> push-buttons. The return to the FILE sub-list is possible
after pressing the <ESC> push-button.
The view of the displays with the SAVE SETUP position opened
The name of the file, in which the configuration of meter is saved, is displayed under the SAVE or
SAVE NEXT text. The default name for a file is displayed in the case of the first entering to this position
(after power on) and the last saved file’s name – in the case of the next entering. It is possible to edit this
name in two ways: full and simplified.
The window of the full edition of the file’s name (the FILE NAME) is opened after pressing the
<ENTER> push-button in the case when the SAVE function was selected for saving the results of the
measurements.
The user can skip the full edition of the file’s name pressing once more the <ENTER> push-button.
It will result in the passing to the phase of the file’s saving described just after the FILE NAME window.
The view of the displays during the process of setting the character in the edited name
One can select the proper position of the character in the edited text using the <

>, <

> push-
buttons. The available ASCII characters can be changed using the <

>, <

> push-buttons. The
subsequent big letters, digits, space and underline appear on the display in the inversely displayed
position after each pressing of the mentioned above push-buttons.
The empty space is created for the introduction of a new character in the edited name (the INS
operation is executed) when the <SHIFT> push-button is pressed together with the <

>.
