SVAN 948 USER MANUAL _
5 - 28

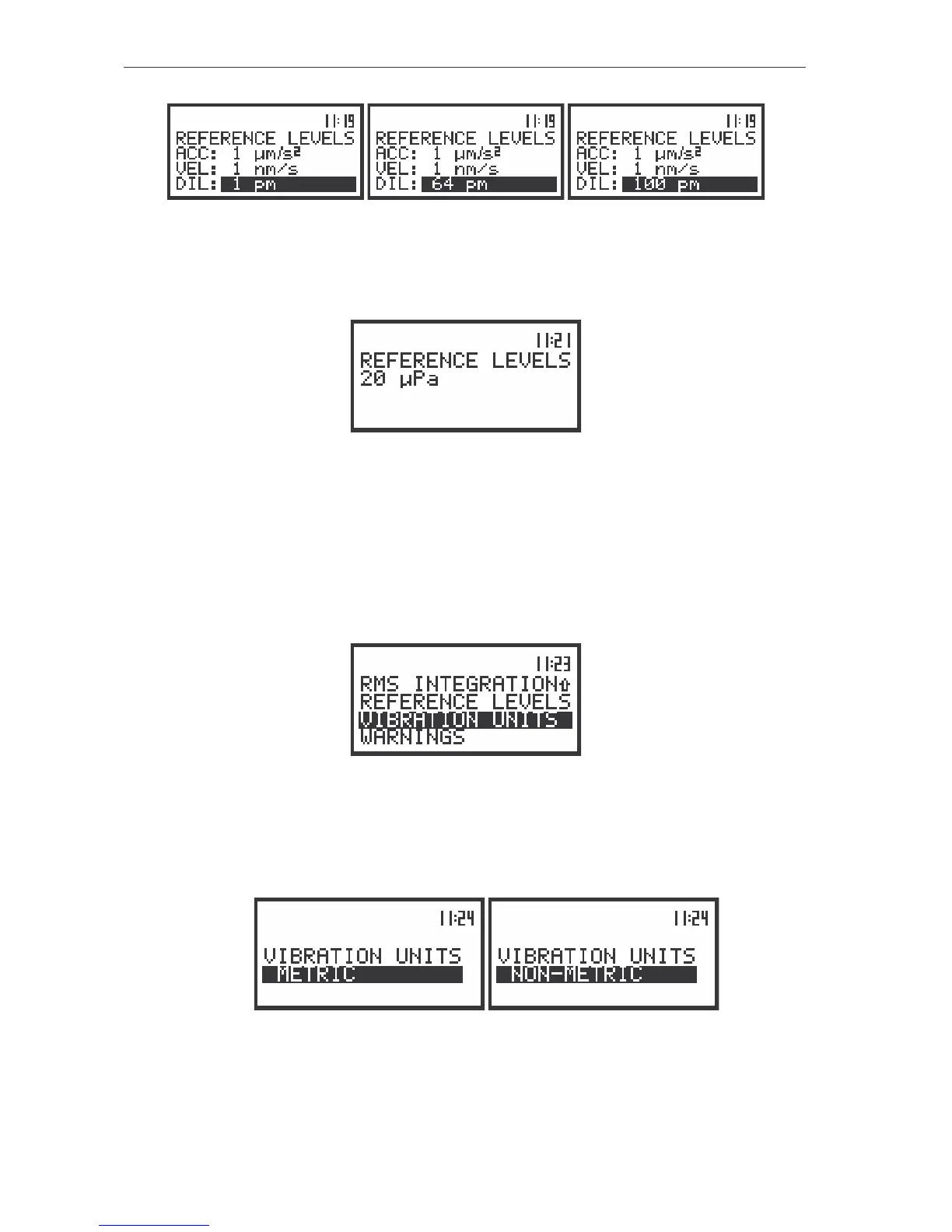

The display’s view in the REFERENCE LEVEL sub-list; the reference level setting of displacement signal
In the case of sound measurements the REFERENCE LEVEL sub-lists is used only to inform the
user that the reference level of the acoustic signal is equal to 20 µPa. After pressing the <ESC> or
<ENTER> push-buttons the sub-list is closed.
The view of the display in the REFERENCE LEVEL sub-list; the reference level of the acoustic signal
Selection of the vibration units - VIBRATION UNITS
The VIBRATION UNITS (path: MENU / SETUP / VIBRATION UNITS) position enables the user to
select the units for the vibration measurements. In order to enter this position the user has to select the
VIBRATION UNITS text in the SETUP list, using the <
>, <
> (or <
>, <
>) push-buttons and press
the <ENTER>.
The view of the display in the SETUP list, the VIBRATION UNITS text highlighted (displayed inversely)
It is possible to select the METRIC units (e.g. m/s
2
, m/s, m etc.) or NON-METRIC units (e.g. g, ips,
mil etc.). The selection is done by means of the <
>, <
> push-buttons. In order to confirm the selection
the <ENTER> push-button has to be pressed. Such pressing closes the sub-list. After pressing the
<ESC> push-button the sub-list is also closed but all changes, which were made, are ignored.
The view of the displays with the available options of the VIBRATION UNITS position
