It is possible to change RANGE in VIBRATION mode. In this case the instrument operates in two
input ranges 117.8 m/s
2
and 316 m/s
2
, which can be selected by means of the range position. In order to
change the mode of the range the user has to press the <
>, <
> push-buttons.
The return to the CHANNEL x list is made after pressing the <ESC> push-button (ignoring the
changes) or <ENTER> push-button (confirming the selection).

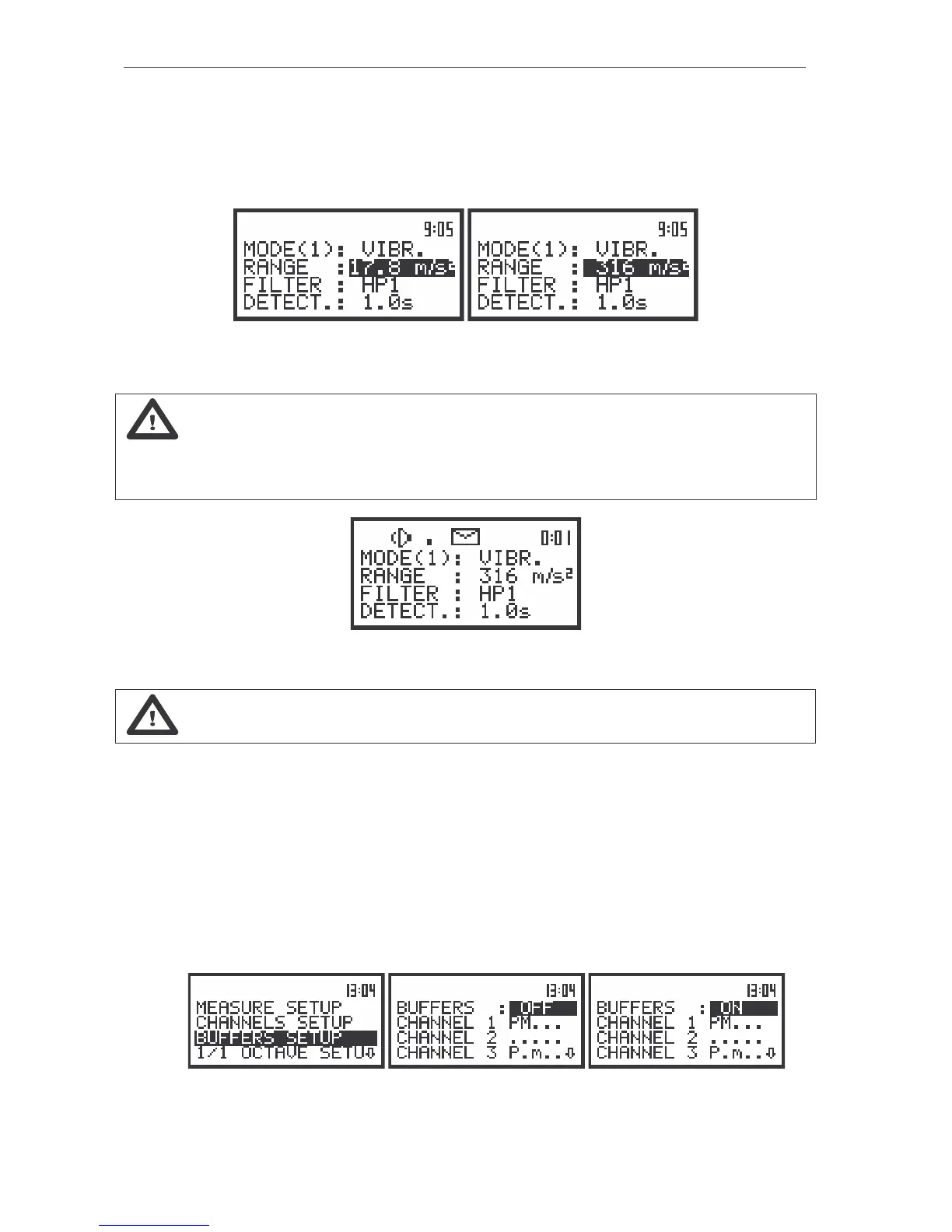

The view of the displays with the RANGE (path: MENU / INPUT / CHANNEL x / RANGE) position selected
in case of VIBRATION signal
Notice: It is not possible to change the range of the measurements during the execution
of the measurements. It is possible to open different lists and sub-lists but the positions in these lists are
not displayed inversely and so - not accessible. The “Loudspeaker” icon indicates that the instrument is
in the measurement process. In order to change the range the measurement must be finished!
The view of the displays with RANGE position (path: MENU / INPUT / CHANNEL x / RANGE) not accessible.
Notice: If an OVERLOAD occurs it is signalled by the ”Bell” icon (cf. Chapter 3 for details).
Selection of 1/1 OCTAVE analysis result of vibration signal to be saved in the buffer’s file -
BUFFES SETUP
The measurements results from each channel can be saved in the buffer’s file of the instrument’s
VLM mode. The selection of the OFF option means that no result from the described channel have to be
saved in the buffer’s file. User can switch OFF or ON BUFFERS position by pressing the <
> or <
>
push-buttons. After pressing the <ENTER> push-button any changes made in the sub-list are confirmed
and the sub-list is closed. The return to the BUFFERS SETUP sub-list ignoring any changes made in the
sub-list is made after pressing the <ESC> push-button.
The view of the displays in the BUFFERS SETUP sub-list list (path: MENU / INPUT / BUFFERS SETUP); the
selection of the BUFFERS store
