Selection of 1/3 OCTAVE analysis result of vibration signal to be saved in the
buffer’s file - BUFFERS SETUP
The measurements results from each channel can be saved in the buffer’s file of the instrument’s
VLM mode. The selection of the OFF option means that no result from the described channel have to be
saved in the buffer’s file. User can switch OFF or ON BUFFERS position by pressing the <

> or <

>
push-buttons. The selection of the OFF text means that the results are not saved in the buffer’s file. After
pressing the <ENTER> push-button any changes made in the sub-list are confirmed and the sub-list is
closed. The return to the BUFFERS SETUP sub-list ignoring any changes made in the sub-list is made
after pressing the <ESC> push-button.

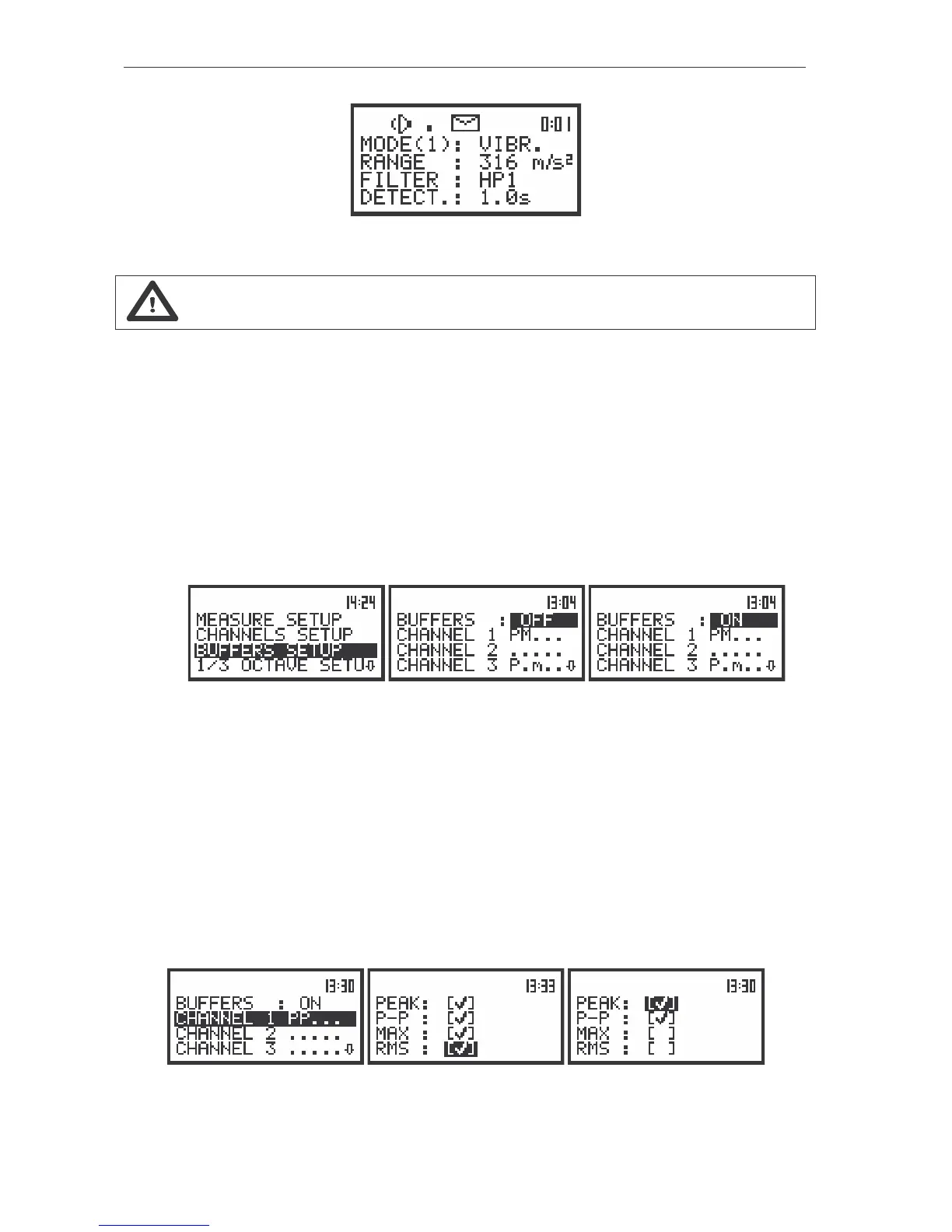

The view of the displays in the BUFFERS SETUP sub-list list (path: MENU / INPUT / BUFFERS SETUP); the
selection of the BUFFERS store
The user can select the following results, which can be saved: PEAK, P–P, MAX and RMS in the
case of vibration measurement. The selection of the parameter from the CHANNEL x sub-list is made by
pressing the <

>, <

> push-buttons. After pressing the <ENTER> push-button any changes made in the
sub-list are confirmed and the sub-list is closed. The return to the BUFFERS SETUP sub-list ignoring any
changes made in the sub-list is made after pressing the <ESC> push-button.
In order to switch parameters in the buffer, the user has to place special character in the chosen
position; available values are: [√
√√
√] or [ ]. The selection of the required buffers parameter is made with the
<

>, <

> push-buttons. The user can pass to the selection of the next parameter from the CHANNEL x
sub-list pressing the <

>, <

> push-buttons. After pressing the <ENTER> push-button any changes
made in the sub-list are confirmed and the sub-list is closed. The return to the BUFFERS SETUP sub-list
ignoring any changes made in the sub-list is made after pressing the <ESC> push-button.
The view of the displays in the CHANNEL 1 sub-list; the selection of the parameters
to be saved in the buffer’s file
