SVAN 948 USER MANUAL
5 - 5
Selection of the weighted Filters - TOTAL VALUES
The TOTAL VALUES (path: MENU / DISPLAY / DISPLAY SETUP/ CHANNEL x / TOTAL VALUES) sub-
list which is available only in 1/1 OCTAVE or 1/3 OCTAVE analysis; enables the user to select the
weighted filters. In order to enter this list one has to press the <ENTER> push-button on the inversely
displayed TOTAL VALUES text of the DISPLAY SETUP/ CHANNEL x list. The TOTAL VALUES sub-list
is closed and the instrument returns to the CHANNEL x list after pressing the <ESC> push-button.

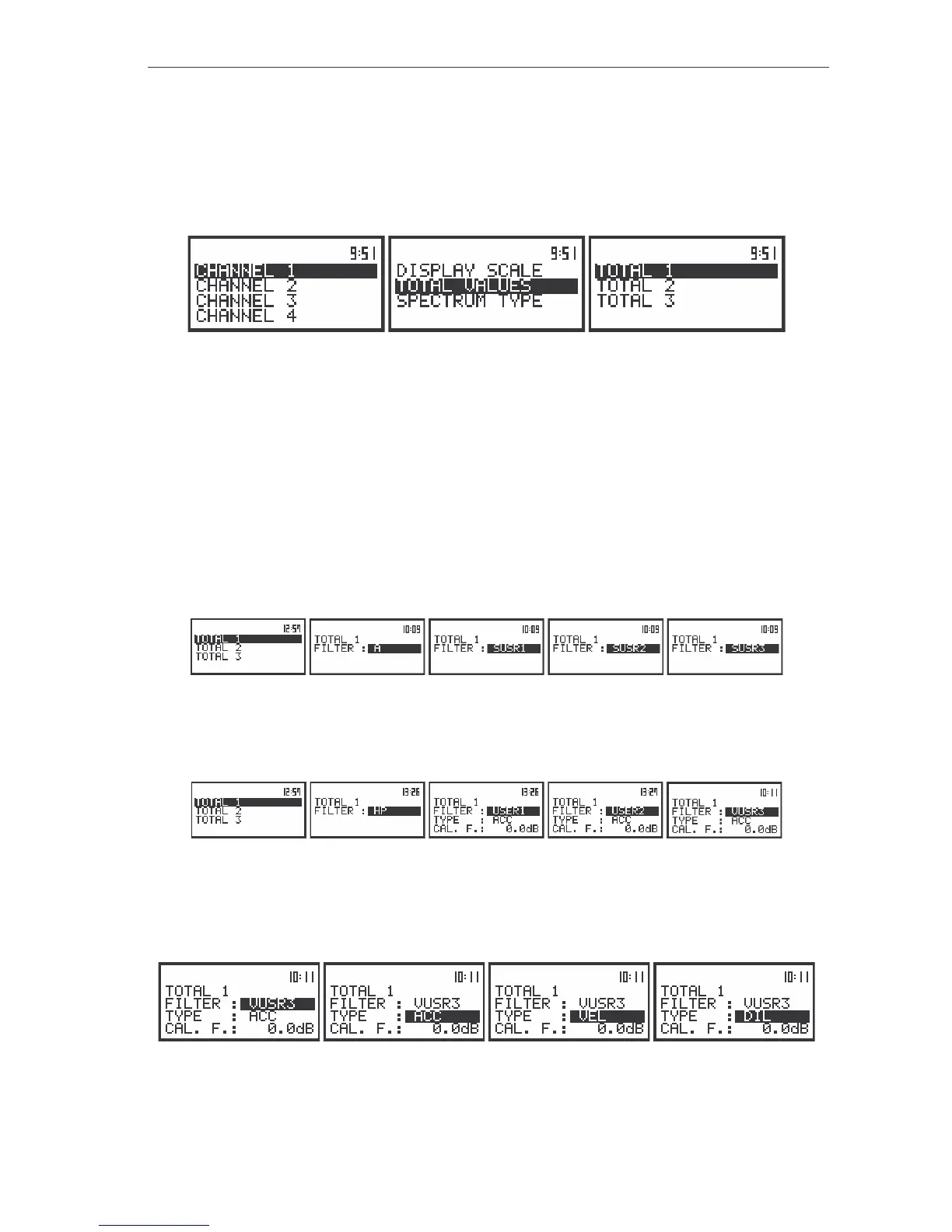

The view of the display with the DISPLAY SETUP list, the TOTAL VALUES text highlighted
(path: MENU / DISPLAY / DISPLAY SETUP / CHANNEL x / TOTAL VALUES)
Selection of the Weighted Filters for the 1
st
profile - TOTAL 1
The TOTAL 1 sub-list enables one to select the weighted filter to be used for the calculation of the
TOTAL value in the first profile (FILTER). In the case of vibration measurements it is also possible to
determine the type (TYPE) of the filter and the calibration coefficient (CAL. F.). The TOTAL 1 sub-list is
closed and the instrument returns to the TOTAL VALUES list after pressing the <ESC> push-button,
which ignores any changes in the positions of the sub-list or the <ENTER> push-button, which confirms
the changes.
v FILTER: (position); available values of the weighted filters:
o in the case of sound measurements: A, SUSR1, SUSR2, SUSR3 or any other sent to the unit
by means of the interface,
The view of the displays with the TOTAL 1 list opened in the case of sound measurements
o in the case of vibration measurements: HP, VUSR1, VUSR2, VUSR3 or any other sent to the
unit by means of the interface.
The view of the displays with the TOTAL 1 list opened in the case of vibration measurements
v TYPE: (position available only for vibration measurements); available values if VUSR1, VUSR2, or
VUSR3 was selected in the previous position: ACC, VEL and DIL; if the HP filter was selected this
position is not displayed.
The displays with the TOTAL 1 list opened in the case of vibration measurements; USER3 filter selected
