• A type 1 according to the IEC 651 and IEC 61672-1 standards,
• C type 1 according to the IEC 651 and IEC 61672-1 standards.
The view of the displays in the CHANNEL 3 sub-list; the selection of the weighting filter
The characteristics of the filters are given in Appendix D. The selection of the required filter is made
with the <

>, <

> push-buttons. The user can pass to the selection of the next parameter from the
CHANNEL x sub-list pressing the <

>, <

> push-buttons. After pressing the <ENTER> push-button any
changes made in the sub-list are confirmed and the sub-list is closed. The return to the
CHANNELS SETUP sub-list ignoring any changes made in the sub-list is made after pressing the <ESC>
push-button.
Selection of the weighting filter in VLM - FILTER
The following weighting filters are available in a channel of the instrument for the vibration signals:
• in the case of the acceleration measurements: HP1, HP3, HP10, W–Bxy, W–Bz, H–A, W–Bc, KB,
Wk, Wd, Wc and Wj;

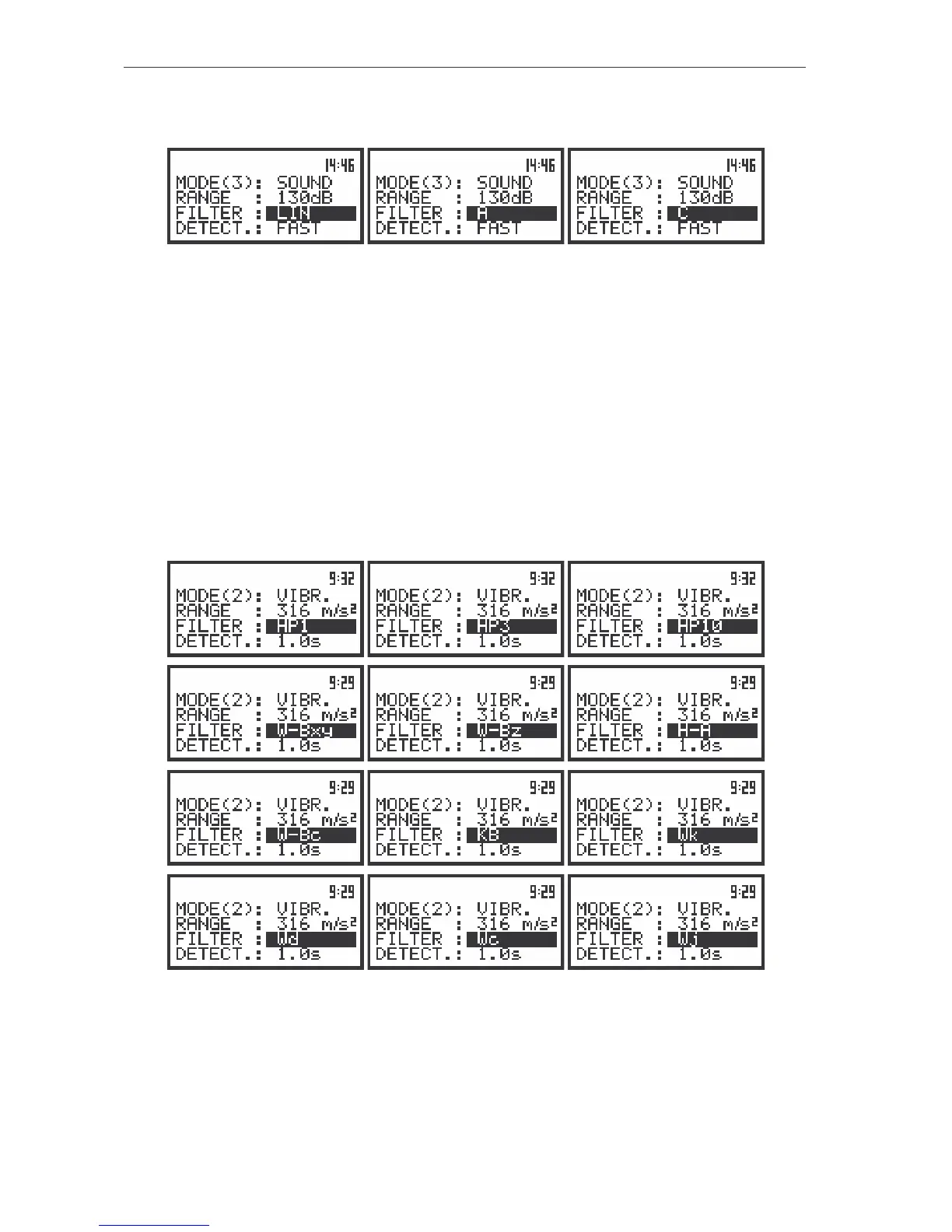

The view of the displays in the PROFILE 2 sub-list; the selection of the weighting filter in the case of
acceleration measurements
• in the case of the velocity measurements: Vel1, Vel3, Vel10 and VelMF;
