In one profile and 3 PROFILES modes the results are presented in the same way as in the case of
the VLM mode with only one difference that instead of the continuous line the doted one is used. The
active channel is changed after each pressing of the <SHIFT> and <
> or <SHIFT> and <
> push-
buttons. The change of the result from the same channel is done by pressing the <
>, <
> push-
buttons.

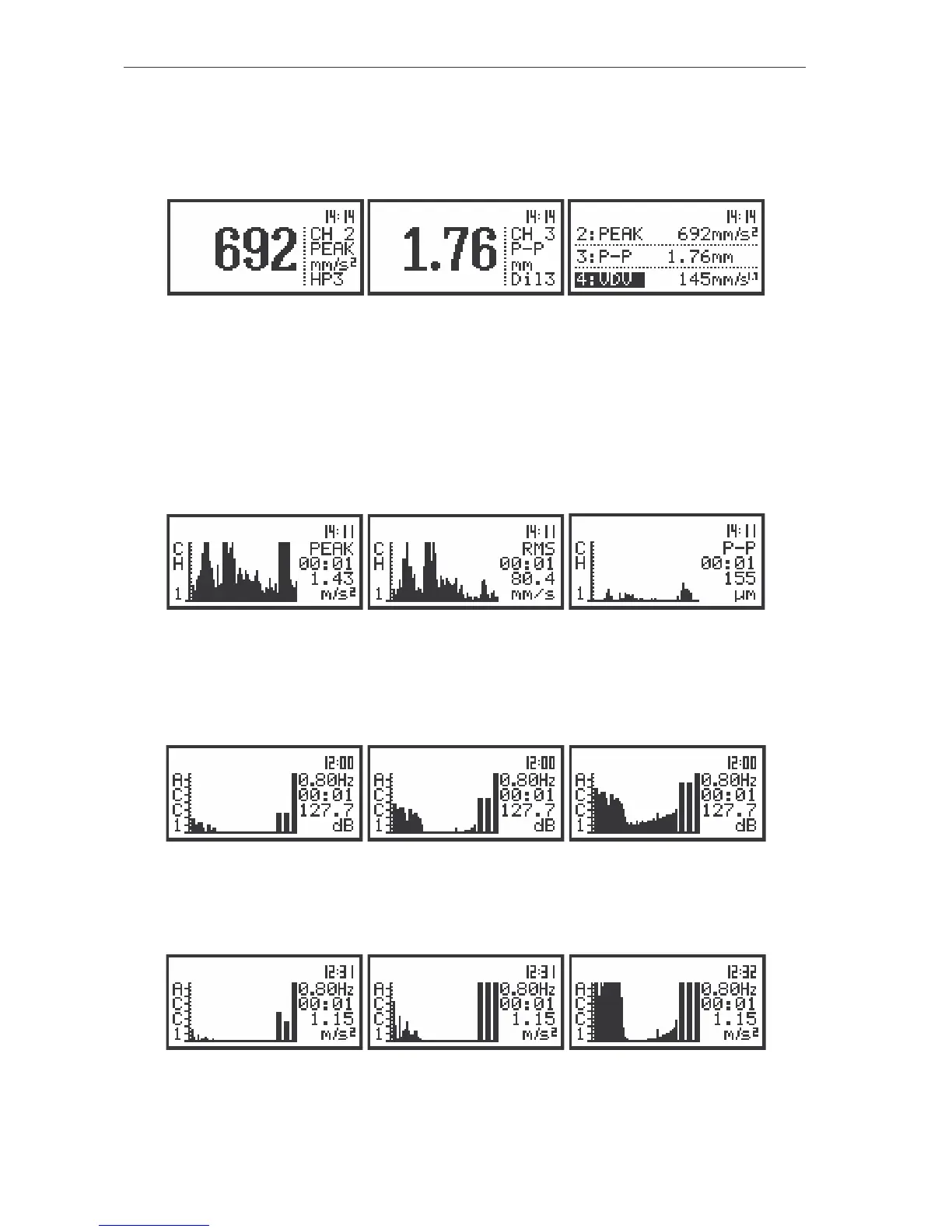

The view of the displays in 1/3 OCTAVE analysis in one profile and 3 PROFILES modes of result’s
presentation
In the PLOT mode the results are presented which are saved in the buffer from the channels (in
case when text ON in the BUFFERS positions is selected and user selects in the CHANNEL x sub-lists
position to display in PLOT mode. The selection of the OFF text means that the results are not saved in
the buffer’s file.) with the step set for all channels in the BUF. STEP position. The active channel is
changed after pressing the <
> and <
> push-buttons. The position of the cursor can be done after
pressing the <
>, <
> push-buttons. It is also possible to shift the horizontal axis in relation to the
vertical one of the presented results using the <SHIFT> and <
> or <SHIFT> and <
> push-buttons
(similarly as it has to be done in the SPECTRUM mode).
The view of the displays in 1/3 OCTAVE analysis in the PLOT mode; the registered results from
CHANNEL 1
In the SPECTRUM mode it is possible to shift the horizontal axis in relation to the vertical one of the
presented results using the <SHIFT> and <
> or <SHIFT> and <
> push-buttons. After each pressing
of these buttons the presented picture moves 10 dB down or up - respectively.
The view of the displays in 1/3 OCTAVE analysis with the shifted horizontal axis in relation to vertical one;
LOGarithmic units (path: MENU / DISPLAY / DISPLAY SETUP / CHANNEL x / DISPLAY SCALE / LOG); the next one
display is obtained from the previous one after TWO consecutive pressing of <SHIFT> and <
> push-
buttons
The view of the displays in 1/3 OCTAVE analysis with the shifted horizontal axis in relation to vertical one;
LINear (path: MENU / DISPLAY / DISPLAY SETUP / CHANNEL x / DISPLAY SCALE / LIN), METRIC (path: MENU /
SETUP / VIBRATION UNITS / METRIC) vibration units; the next one display is obtained from the previous one
after ONE pressing of <SHIFT> and <
> push-buttons
