SVAN 948 USER MANUAL
4 - 79
…

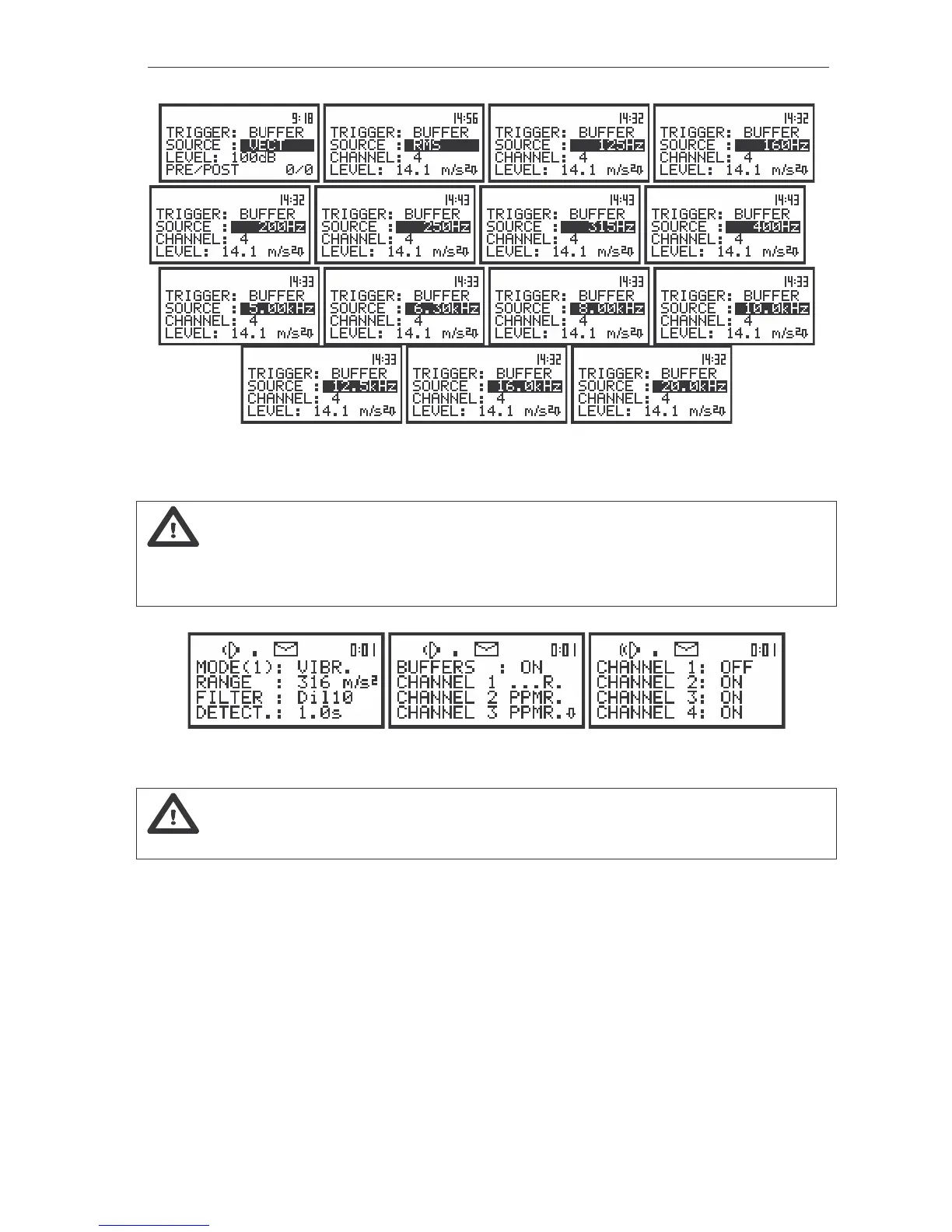

The view of the displays in TRIGGER SETUP window; the selection of the signal used for triggering
purposes in BUFFER mode; METRIC units selected
Notice: It is not possible to change the values of the parameters during the execution of
the measurements. It is possible to open different lists and sub-lists but the positions in these lists are not
displayed inversely and so - not accessible. The “Loudspeaker” icon indicates that the instrument is in
the measurement process. In order to change the range the measurement must be finished!
The view of the displays with not accessible parameters of the BUFFERS SETUP sub-lists
Notice: All other settings of the instrument are common for 1/3 OCTAVE analyser and the
level meter mode.
