SVAN 948 USER MANUAL
2 - 5
• analogue output with the signal from the input of the analogue / digital converter (before the
correction); this signal can be registered using magnetic recorder or observed on the oscilloscope (the
ANALOG setting)
• digital input for external interrupt (the DIGITAL IN setting)
• digital output for external trigger (the DIGITAL OUT setting)
The Ext. Power socket located on the bottom cover of the instrument is Marushin MJ-14
compatible socket, dedicated for the standard ĭ 5.5 / 2.1 mm plug (the right one in the Fig. above). The
user can connect the external mains adapter (110 V / 230 V) which furnishes the proper DC level. The
instrument can be charged from the external DC source (from 6 V to 24 V). The current consumption
depends on the voltage of the power supplier.
Notice: Switch the power off before connecting the instrument to any other device (e.g. a
printer or a Personal Computer).

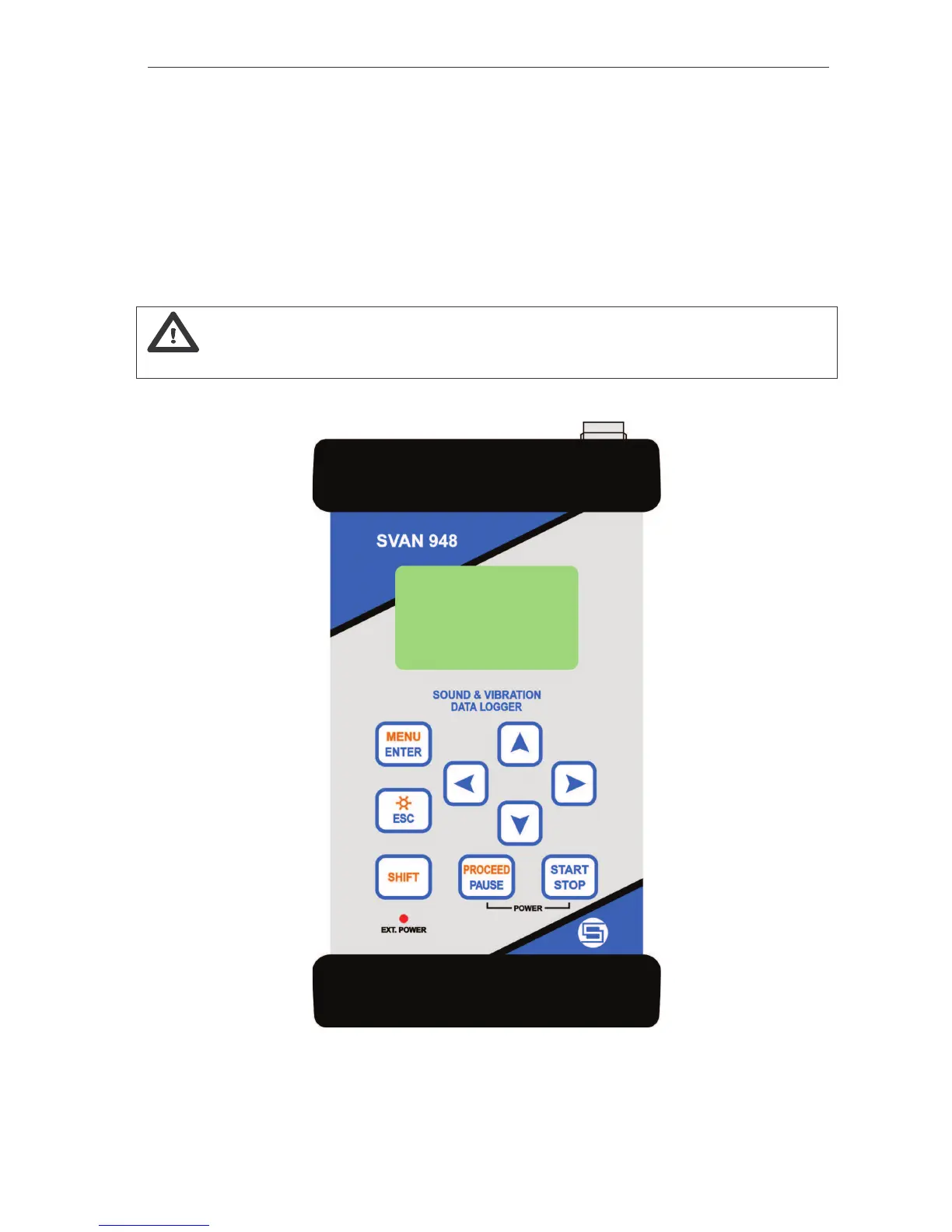

The view of the front panel of the SVAN 948 instrument in 1:1 scale
