INPUT / MEASURE SETUP / BUF. STEP)). There are 57 lines presented on the display with the dynamics
not greater than 80 dB.
The read-out of the interested value can be done using the cursor controlled by the <

>, <

>
push-buttons. The selected channel’s number is presented on the left side of the display. The selected
profile, time of the measurement and the measured result with its unit are presented on the right side of
the display. Each new measurement result saved in the file of the buffer during the PLOT mode shifts the
cursor position to the right. When the cursor achieved the right limit of the display, new measurement
results appears on the right end of the display and the results from 58*BUF. STEP disappears from the
left end of the display. It looks like the movement of the presentation to the left. The display is updated
every BUF. STEP time for the BUF. STEP greater than or equal to 1 second and every second for the
BUF. STEP smaller than 1 second.

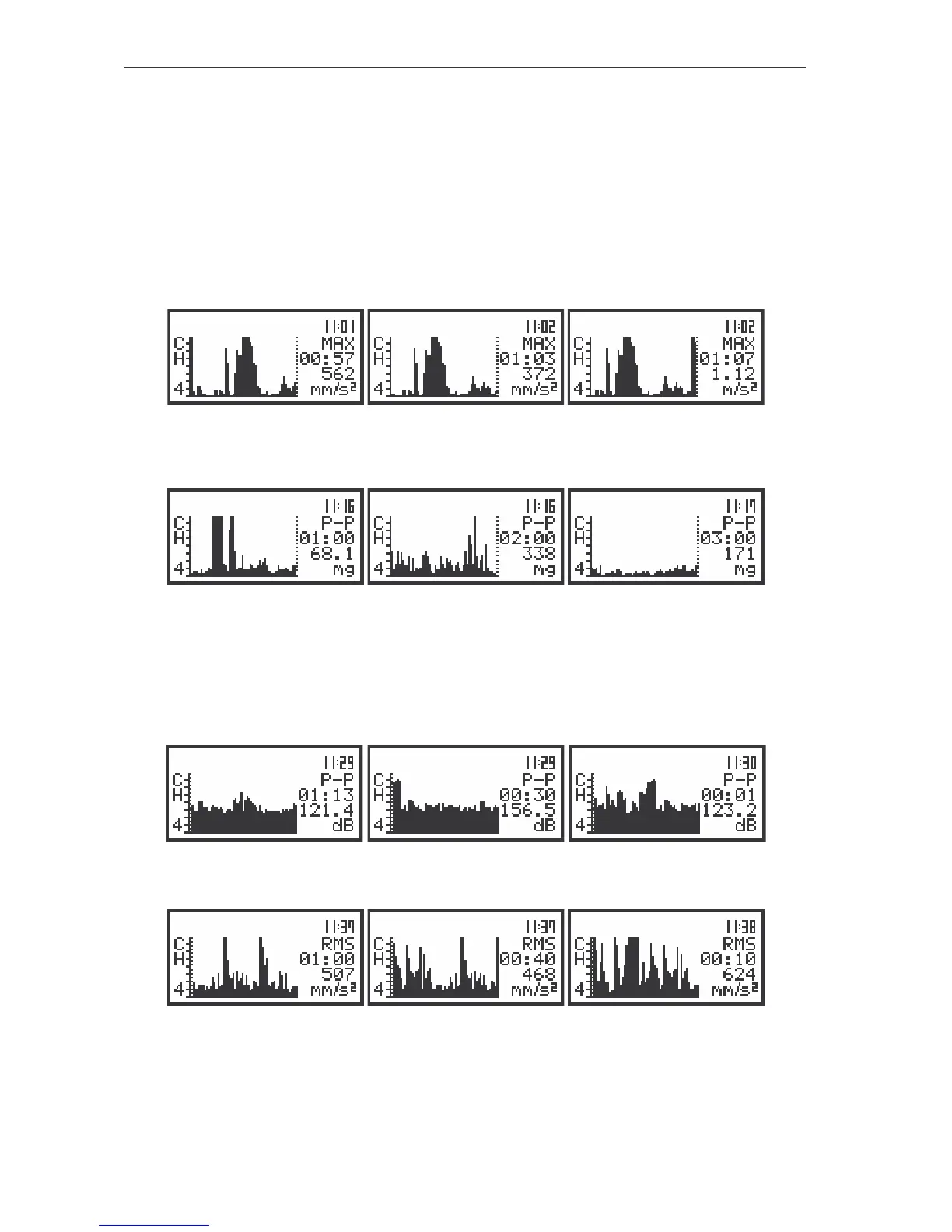

The displays in the PLOT presentation mode; the overview of the values later stored in the buffer, METRIC
(path: MENU / SETUP / VIBRATION UNITS / METRIC) units and LINear scale (path: MENU / DISPLAY /
DISPLAY SETUP / CHANNEL x / DISPLAY SCALE / LIN) settings selected
The displays in the PLOT presentation mode; the overview of the values later stored in the buffer, NON-
METRIC (path: MENU / SETUP / VIBRATION UNITS / NON METRIC) units and LINear (path: MENU / DISPLAY /
DISPLAY SETUP / DISPLAY SCALE / LIN) scale setting selected
After finishing the registration it is possible to overview all saved results. For this reason the cursor
has to be placed to the left or right limit of the presentation. Each pressing of the <

>, <

> push-buttons
results in the appearing of the display, respectively - the earlier or later value. The whole presented time
history is shifted one position to the right (or to the left).
The displays in the PLOT presentation mode; the overview of the values earlier stored in the buffer,
LOGarithmic scale (path: MENU / DISPLAY / DISPLAY SETUP / DISPLAY SCALE / LOG) setting selected
The displays in the PLOT presentation mode; the overview of the values earlier stored in the buffer,
METRIC (path: MENU / SETUP / VIBRATION UNITS / METRIC) units and LINear (path: MENU / DISPLAY /
DISPLAY SETUP/ CHANNEL x / DISPLAY SCALE / LIN) scale setting selected
If in each channel a selected result is saved, in order to view time history in all profiles the user has
to press the <

> and <

> push-buttons.
