a) b)

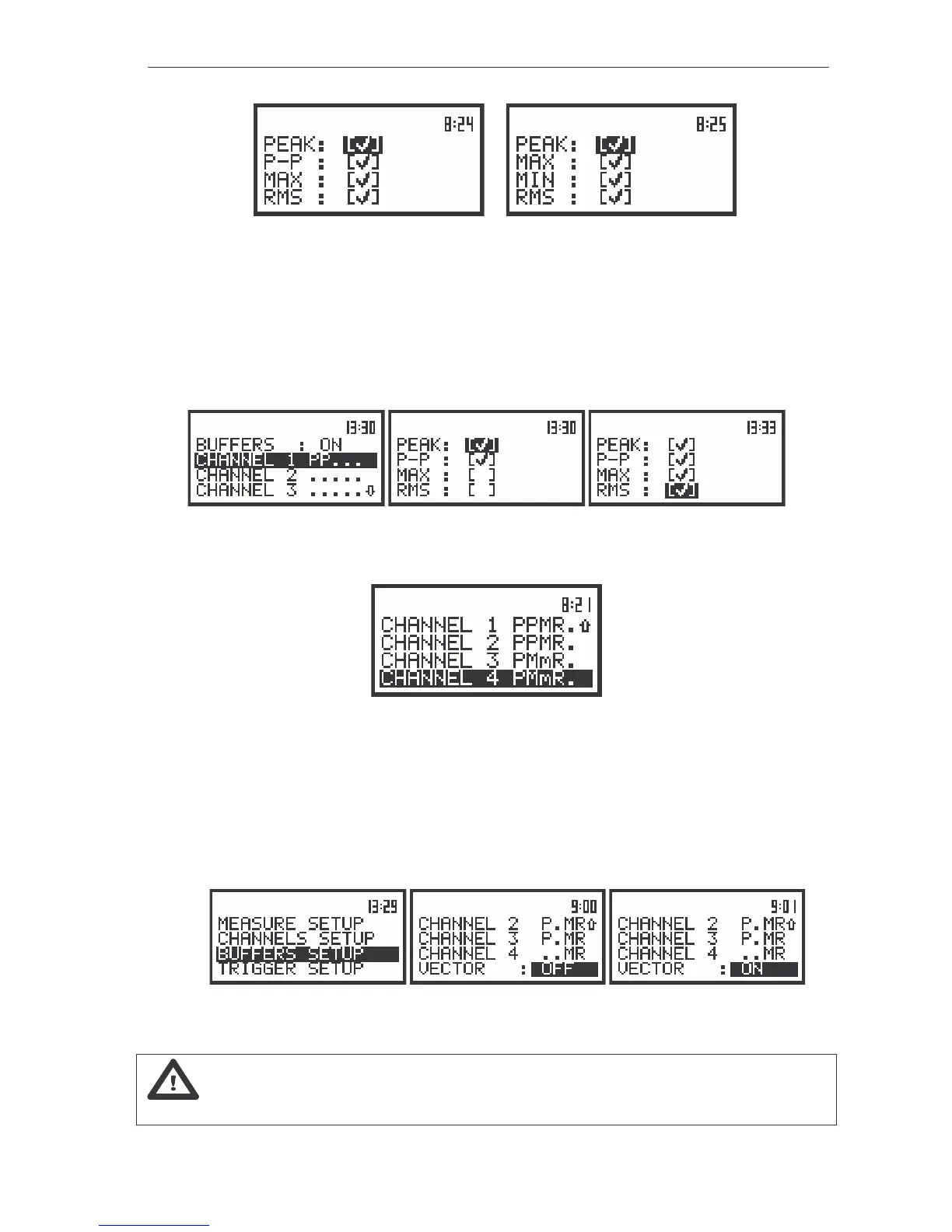

The view of the displays in the CHANNEL x sub-list; the selection of the parameters
to be saved in the buffer’s file in the case of vibration mode (a) and sound mode (b)
In order to switch parameters in the buffer, the user has to place special character in the chosen
position; available values are: [√
√√
√] or [ ]. The selection of the required buffers parameter is made with the
<
>, <
> push-buttons. The user can pass to the selection of the next parameter from the CHANNEL x
sub-list pressing the <
>, <
> push-buttons. After pressing the <ENTER> push-button any changes
made in the sub-list are confirmed and the sub-list is closed. The return to the BUFFERS SETUP sub-list
ignoring any changes made in the sub-list is made after pressing the <ESC> push-button.
The view of the displays in the CHANNEL 1 sub-list; the selection of the parameters
to be saved in the buffer’s file
The view of the displays in the BUFFERS SETUP sub-list; the all the parameters were selected
to be saved in the buffer’s file; in CHANNEL 1 and 2 vibration and in CHANNEL 3 and 4 sound parameters
The values of VECTOR can be saved in the buffer’s file of the instrument’s VLM mode. The
selection of the OFF option means that no result from the described vector have to be saved in the
buffer’s file. User can switch OFF or ON VECTOR position by pressing the <
> or <
> push-buttons.
After pressing the <ENTER> push-button any changes made in the sub-list are confirmed and the sub-list
is closed. The return to the INPUT sub-list ignoring any changes made in the sub-list is made after
pressing the <ESC> push-button.
The view of the displays in the BUFFERS SETUP sub-list (path: MENU / INPUT / BUFFERS SETUP); the selection
of the VECTOR store
Notice: The change of the channels parameters is not possible when the
measurement is performed. The user has to finish the current measurement.
