CHAPTER 5  GNSS RECEIVER CONFIGURATION
GNSS receiver conguration is used to congure GNSS Type, GNSS Port, and PRN, and other GNSS parameters, and to view GNSS
status information.
GNSS receiver conguration
NOTE: These settings are required for rate control, assisted/
auto steering, and tilt sensor operation, as well as proper
implement operation.
1. Press CONFIGURATION side tab .
2. Press
GNSS Receiver Conguration .
3. Select from:
►GNSS type – sets to accept GNSS source transmissions:
GPS, GLONASS, or SBAS (with or without DGPS required).
►GNSS port – sets GNSS communication port: internal or
external
►GNSS status information – displays current baud rate, baud
rate status, GNSS status information: GGA/VTG (data
rates), number of satellites, HDOP, PRN, GGA quality,
receiver, receiver version, UTM zone, and correction model
►Programme – allows direct programming of the GNSS
receiver through a command line interface. Only TeeJet
support technicians should use this feature. Use at your
own risk!
►PRN – selects the rst of two possible SBAS PRN's to
provide SBAS correction data.
►Alternate PRN – allows possible selection of a second
SBAS PRN to provide correction data
►Show refresh GNSS position button – establishes if the
refresh GNSS position button is available on the guidance
screens
4. Press RETURN arrow
or CONFIGURATION side tab
to return to the main Conguration screen.

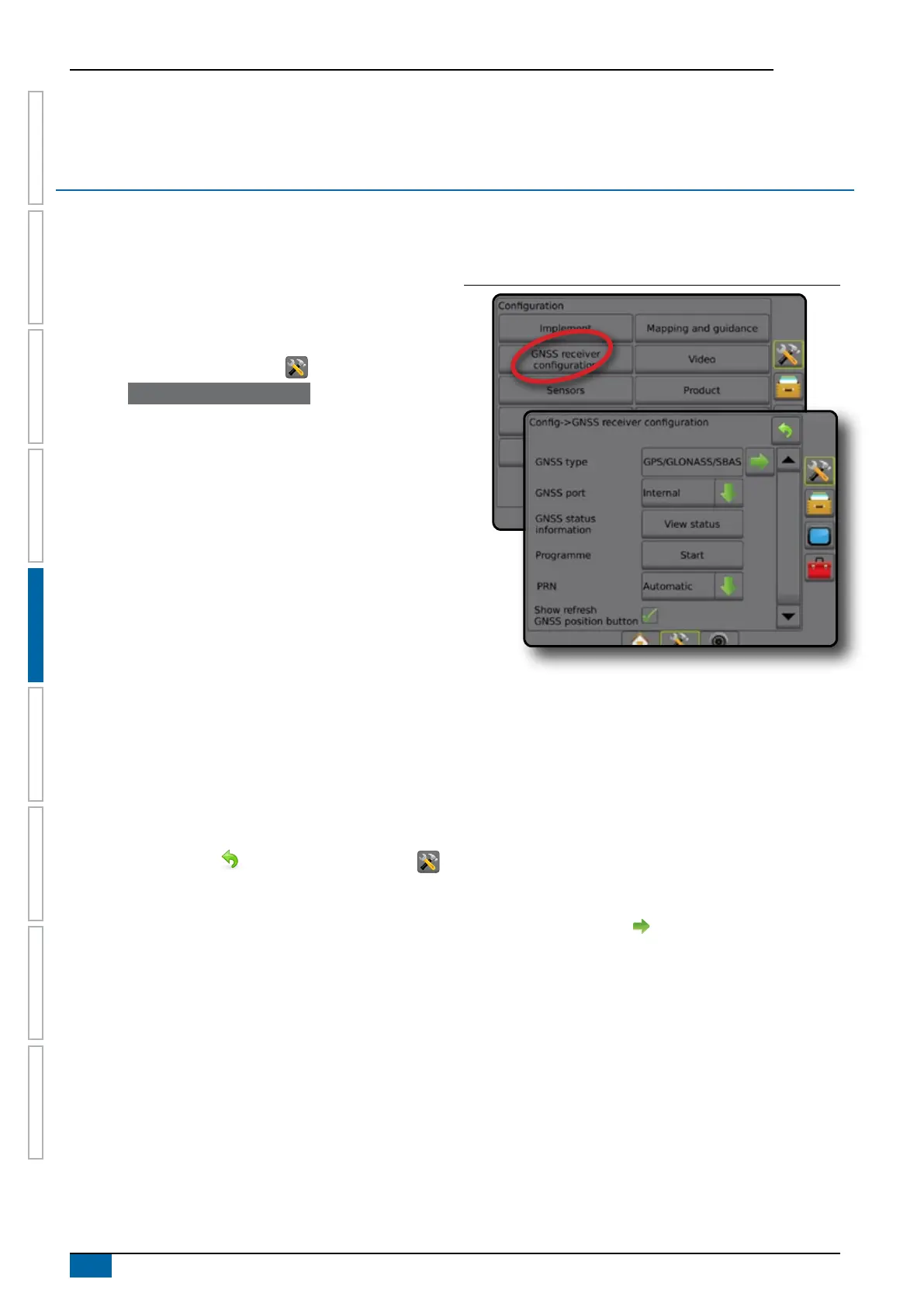

Figure 5-1: GNSS options
GNSS type
This menu allows the user to specify the requirements of the
GGA data received by the application software based on the
GGA Quality Indicator data eld. These selections dictate the
commands sent to program the internal receiver for use.
• GPS – uncorrected signals from the GPS system
• GLONASS – uncorrected signals from the GLONASS system
• SBAS (e.g. EGNOS, GAGAN, MSAS, SDCM, WAAS) –
differentially corrected signals from the SBAS system
• DGPS required – differentially corrected GPS signals
1. Press NEXT PAGE arrow to access the list of options.
2. Select:
►GPS – single point uncorrected position data based on GPS
only with a GGA QI of "1" is accepted.
NOTE: GPS is always selected.
►GPS+GLONASS – single point uncorrected position data
based on GPS and GLONASS with a GGA QI of "1" is
accepted.
►GPS+SBAS – either single point uncorrected or SBAS
corrected position data are accepted - GGA QI of "1" or "2"
(3, 4 or 5 are also accepted).
►GPS+GLONASS+SBAS – either single point uncorrected or
SBAS corrected position data are accepted - GGA QI of "1"
or "2" (3, 4 or 5 are also accepted).
