IMPLEMENT LATERAL OFFSET DISTANCE ADJUSTMENT
Implement lateral offset distance is used to enter the distance
from the centre line of the machine to the centre of the implement.
When on-screen mapping shows no overlap or gap, yet eld
application produces an overlap or gap consistently to only one
side in the direction of travell, an adjustment to the implement
lateral offset distance should be calculated and made to the
implement offset distance value.
If using a self-propelled sprayer or spreader, use the GNSS Offset
Adjustment Calculation to calculate the implement offset distance
adjustment.
If using a pull behind or trailed implement, use the Implement
Offset Adjustment Calculation to calculate the implement offset
distance adjustment.
NOTE: While using assisted/auto steering, if on-screen mapping
shows overlaps and gaps, adjustments may need to be
made to the assisted/auto steering settings.

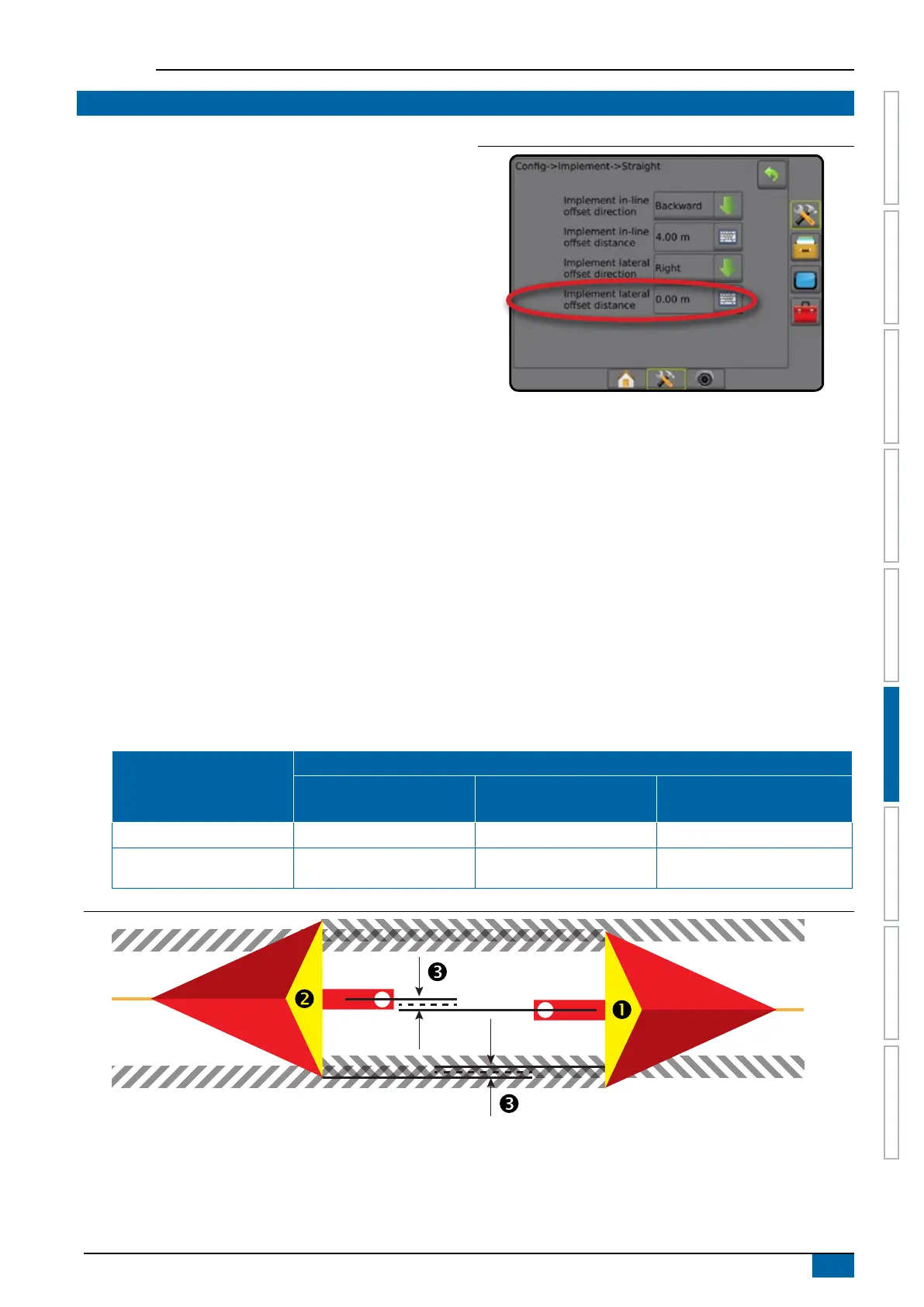

Figure 6-24: Implement lateral offset distance
GNSS offset adjustment calculation
To calculate a GNSS offset adjustment using the same guideline:
1. Create a straight AB line.
2. With assisted/auto steering engaged, drive pass at least 30 metres, and place ags at the draw bar or next to the machine.
3. Turn around and engage assisted/auto steering on pass on the same AB guideline. Place ags at the draw bar or next to the
machine, or stop while on the AB guideline next to the ags you placed on pass .
4. Measure the difference between the ags of pass and pass .
5. Divide the measured distance in half. This difference will be the offset adjustment.
6. Increase or decrease the offset distance as needed dependent on where the eld application overlap occurs and the current
implement offset direction setting.
Field application overlap
Current offset settings
Offset direction = left Offset direction = right
Offset direction = right
offset distance = 0 m
To the right of pass
Increase distance offset value Decrease distance offset value Increase distance offset value
To the left of pass
Decrease distance offset value Increase distance offset value
Change to implement offset direction to
left and increase distance offset value
Figure 6-25: GNSS offset distance
