Spreader – OEM
A virtual line is created in line with the delivery disks from which
the application section or sections can vary in length and can be at
different distances from the line.
Single section
No section control is available on the system.
1. Select Spreader implement type on Implement screen.
2. Press Implement type NEXT PAGE arrow
.
3. Select from:
►Setup type – used to select
OEM spreader type
►Antenna to Disks Distance – used to dene the distance
from the GNSS antenna to the disks or dispersal
mechanism
►Implement lateral offset direction – denes the lateral
direction, either left or right, from the centerline of the
machine to the center of the implement while facing in the
machine's forward direction
►Implement lateral offset distance – denes the lateral
distance from the centerline of the machine to the center of
the implement in decimal meters
►Start distance – used to set the start distance when exiting
an applied area (consult spreader manufacturer for value)
►Stop distance – used to set the stop distance when entering
an applied area (consult spreader manufacturer for value)
NOTE: Consult spreader manufacturer for start and stop
distances.
4. Press RETURN arrow to return to the Implement screen
or CONFIGURATION side tab to return to the main
Conguration screen.

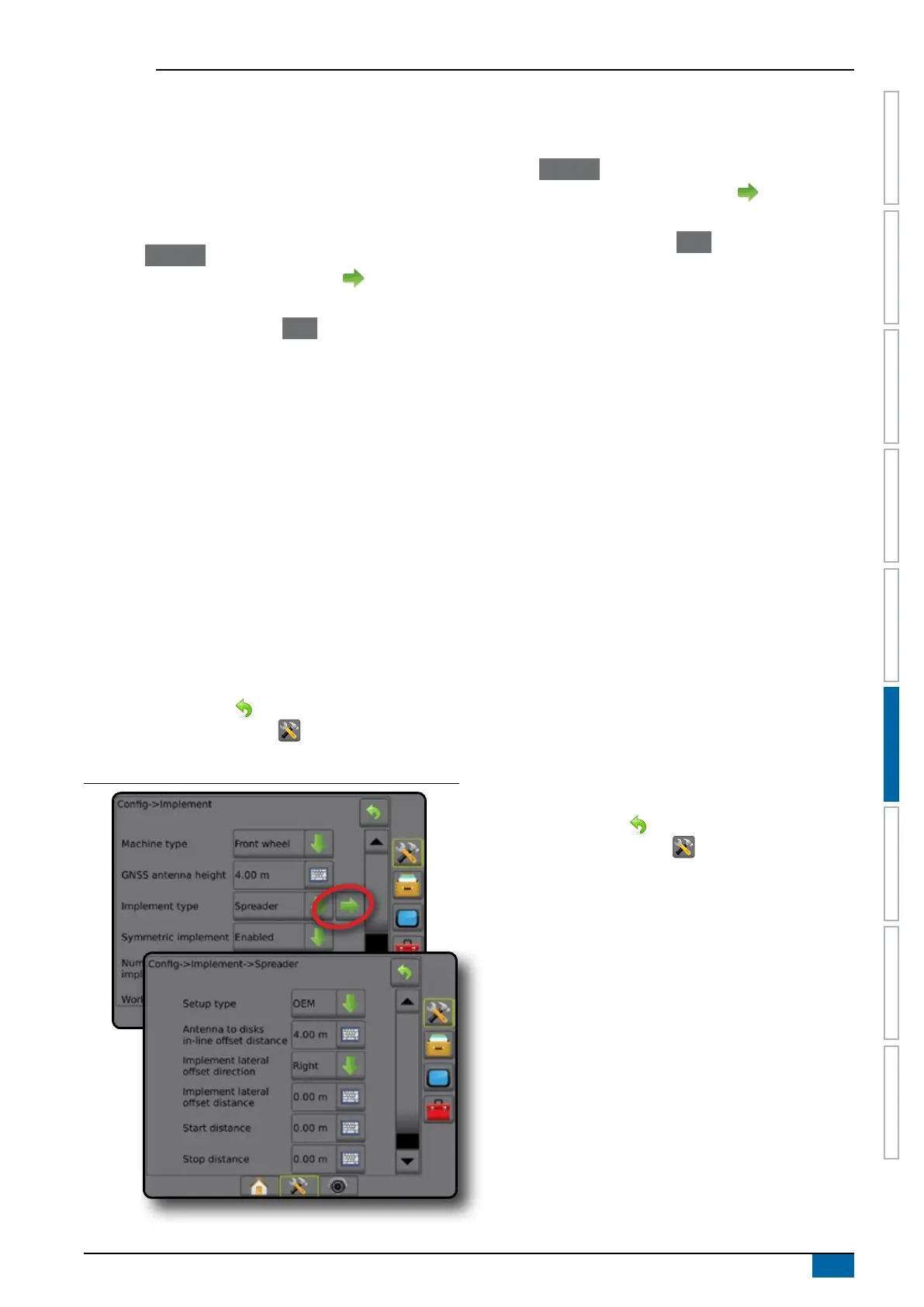

Figure 6-16: Single section
Multiple sections
Section control is available (SmartCable, Section driver module
(SDM), or Switch function module (SFM).
1. Select Spreader implement type on Implement screen.
2. Press Implement type NEXT PAGE arrow .
3. Select from:
►Setup type – used to select
OEM spreader type
►Antenna to disks distance – used to dene the distance
from the GNSS antenna to the disks or dispersal
mechanism
►Implement lateral offset direction – denes the lateral
direction, either left or right, from the centerline of the
machine to the center of the implement while facing in the
machine's forward direction
►Implement lateral offset distance – denes the lateral
distance from the centerline of the machine to the center of
the implement in decimal meters
►Start distance – used to set the start distance when exiting
an applied area (consult spreader manufacturer for value)
►Stop distance – used to set the stop distance when entering
an applied area (consult spreader manufacturer for value)
NOTE: Consult spreader manufacturer for start and stop
distances.
►Section start offsets – used to set the offset distance from
Section 1 to the leading edge of each section. Section 1 is
always 0. All other sections can be different distances.
►Section stop offsets – used to set the offset distance from
Section 1 to the trailing edge of each section. Each section
can be a different distance.
NOTE: Consult spreader manufacturer for section start
and stop offset values. Sections are numbered from left to
right while facing in the machine's forward direction.
4. Press RETURN arrow
to return to the Implement screen
or CONFIGURATION side tab to return to the main
Conguration screen.
