Figure 6-17: Multiple sections
Staggered
A virtual line is created in line with Section 1 from which the
application section or sections have no length and can be at
different distances from the line.
Multiple sections
Section control is available (SmartCable, Section driver module
(SDM), or Switch function module (SFM).

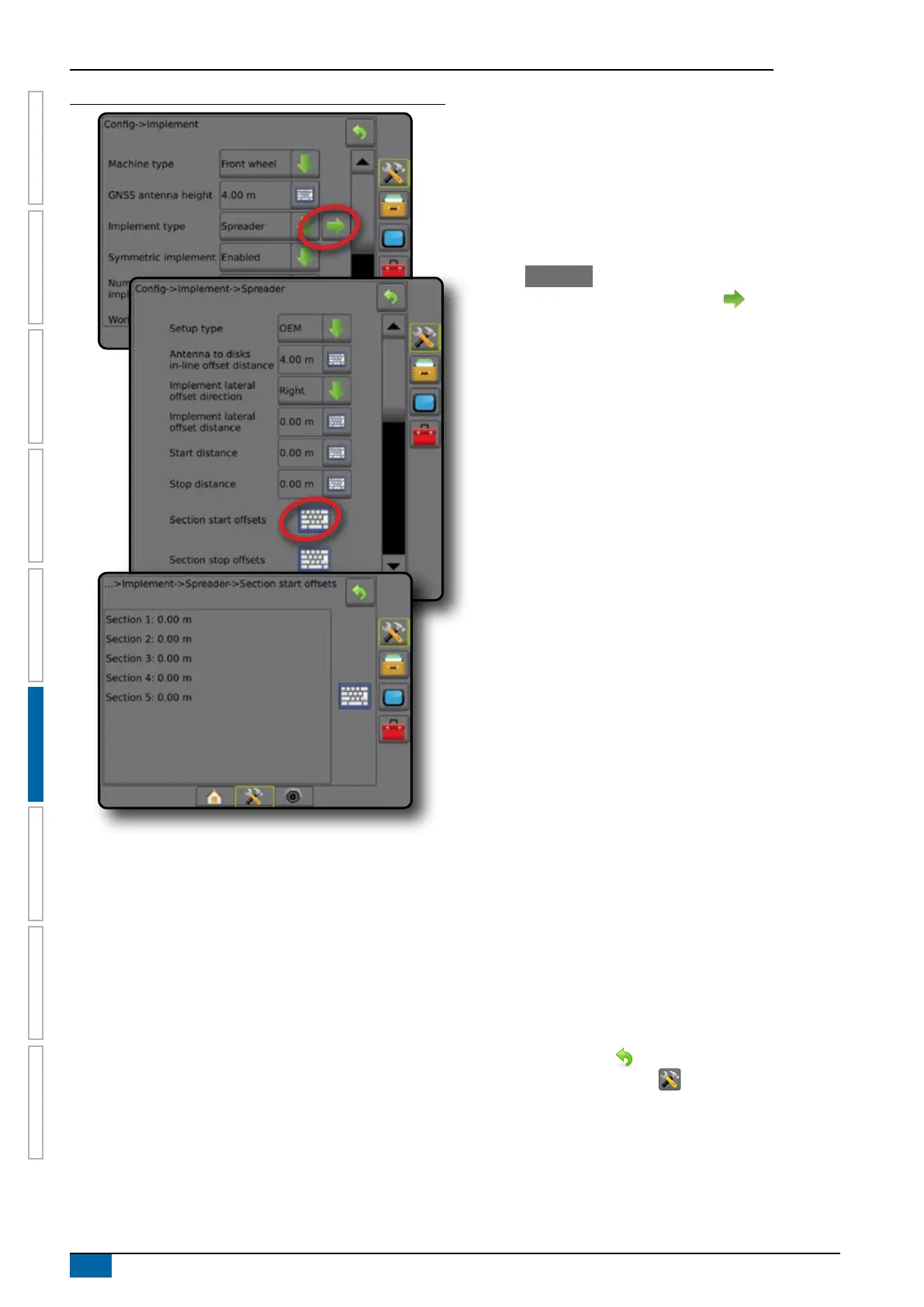

1. Select Staggered implement type on Implement screen.
2. Press Implement type NEXT PAGE arrow
.
3. Select from:
►In-line section 1 offset direction
 – used to select whether
Section 1 (the zero-point of the Section Offsets) is located
in front of or behind the GNSS antenna as the vehicle
moves in a forward direction
►In-line section 1 offset distance  – used to dene the
in-line distance from the GNSS antenna to Section 1 (the
zero-point of the Section Offsets)
►Implement lateral offset direction  – denes the lateral
direction, either left or right, from the centerline of the
machine to the center of the implement while facing in the
machine's forward direction
►Implement lateral offset distance  – denes the lateral
distance from the centerline of the machine to the center of
the implement in decimal meters
►Overlap – used to dene the amount of overlap allowed
when using automatic boom section control
►Delay on time – used to set the time when the section will
switch on when entering an area that has not been applied
NOTE: If the application turns on too soon when entering
an unapplied area, decrease the Delay on time. If the
application turns on too late, increase the Delay on time.
►Delay off time – used to set the time when the section will
switch off when entering an area that has been applied
NOTE: If the application turns off too soon when entering
an unapplied area, decrease the Delay off time. If the
application turns off too late, increase the Delay off time.
►Section offsets  – used to set the offset distance from
Section 1 (the In-line Section 1 offset distance line) to each
section. A positive offset value will move the section behind
Section 1. A negative offset value will move the section in
front of Section 1. Section 1 is always 0. All other sections
can be different distances.
4. Press RETURN arrow to return to the Implement screen
or CONFIGURATION side tab to return to the main
Conguration screen.
