REVERSE SENSE
Reverse sense options are used when adding a Reverse sense
module, SCM (Steering Control Module for FieldPilot IV) or SCM
Pro (Steering Control Module Pro for FieldPilot Pro/UniPilot Pro) to
any conguration. This allows for application mapping and control,
and on-screen guidance when travelling in reverse.
1. Press CONFIGURATION side tab .
2. Press
Implement .
3. In addition to standard options, select from:
►Allow BoomPilot in reverse – used to enable BoomPilot
function while travelling in reverse
►Reverse signal delay – used to set the delay when going
from forward to reverse or reverse to forward, after which
the vehicle icon on a navigation screen changes direction

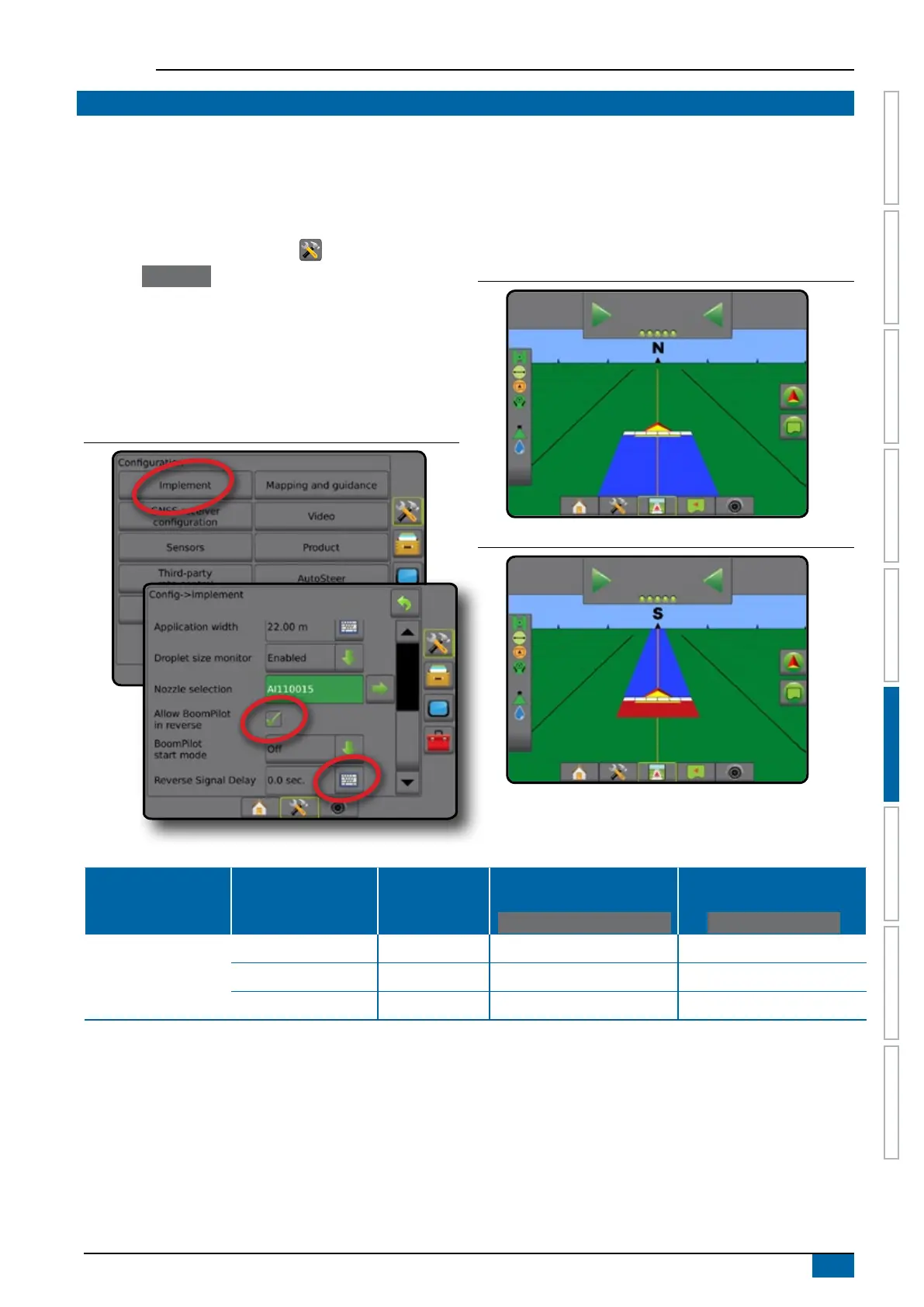

Figure 6-27: Reverse sense module
Reverse on guidance screens
While travelling in reverse, having BoomPilot in reverse active
allows for product application, automatic section control, and
mapping that is correct for reverse machine movement.
◄Speed on the Guidance bar will turn red while travelling in
reverse
Figure 6-28: Travelling Forward
13:18
7.2
km/h
0.0
Figure 6-29: Travelling in reverse
13:18
5.6
km/h
0.0
Availability with different system configurations
Automatic Section
Control device on
system
Device sensing
reverse vehicle
movement
BoomPilot in
reverse feature
available
BoomPilot in reverse can be
turned on/off in menu using
Allow BoomPilot in Reverse
Signal delay can be adjusted
using
Reverse Signal Delay
SDM or SFM
FieldPilot IV *
  
Reverse Sense Module
  
FieldPilot Pro / UniPilot Pro
  **
* Optional function that is hardware dependent.
** Controlled directly by the FieldPilot Pro / UniPilot Pro.
