Camera snapshot
RealView Camera Snapshot saves a still photo of the
current view on the screen to a USB drive.
1. Insert USB drive.
2. Press REALVIEW OPTIONS tab
to display RealView
options.
3. Press CAMERA SNAPSHOT icon
.

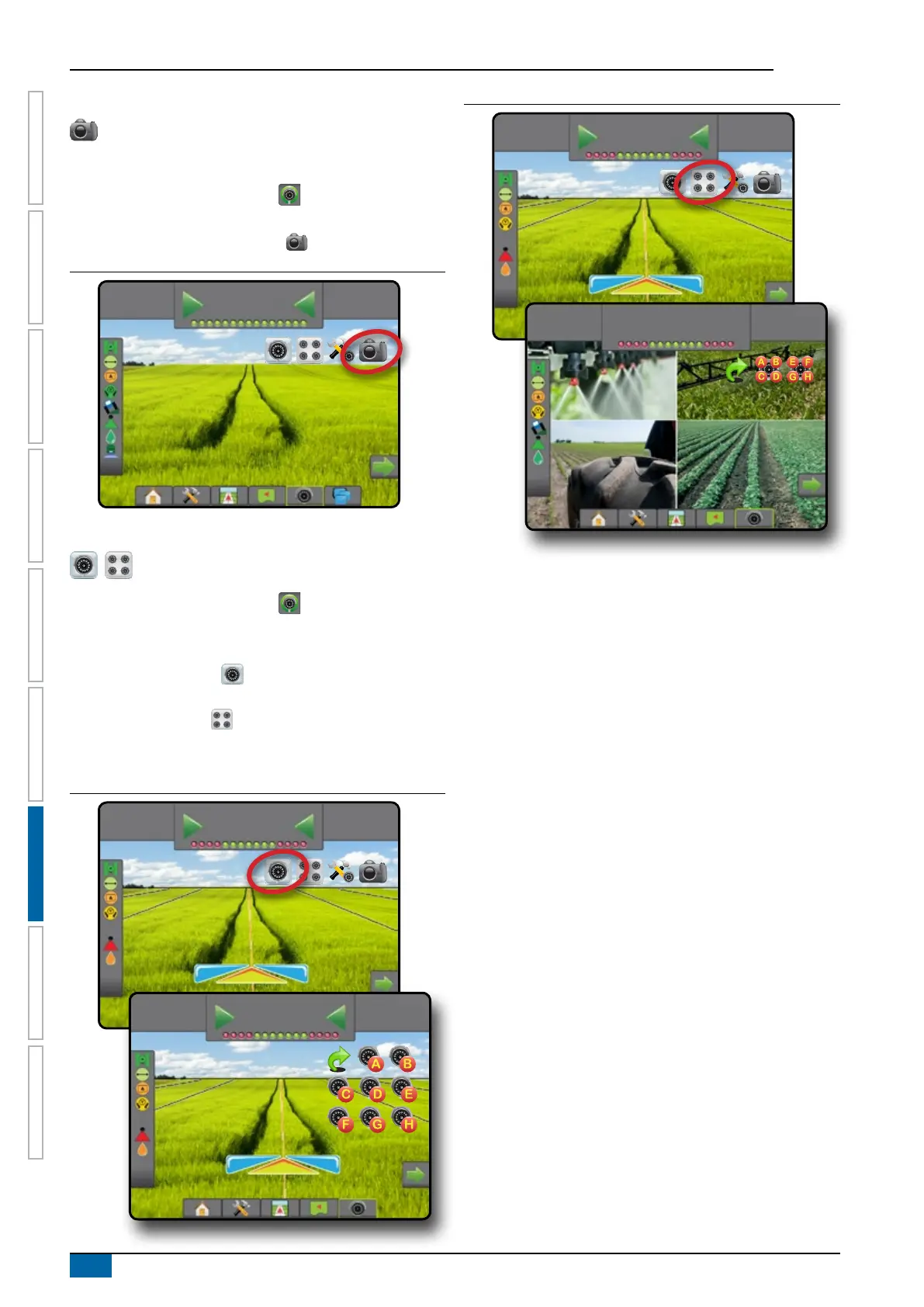

Figure 7-38: RealView camera snapshot
0.0
km/h
0.00
ha
0.0
VSM camera options
If a Video selection module (VSM) is installed on the
system, two (2) video options are available:
1. Press REALVIEW OPTIONS tab to display RealView
options.
2. Select from:
►Single camera view – one (1) of up to eight (8) camera
inputs can be selected to change the view of the video input
►Split camera view – one (1) of two (2) sets of four (4)
camera inputs (A/B/C/D or E/F/G/H) can be selected to
divide the screen into four separate video feeds
Figure 7-39: Single camera selection with VSM
