Current nozzle
Current Nozzle shows the active nozzle for determining current
droplet size information. Nozzles must be preset to be available for
current nozzle selection.
1. Press desired nozzle.
Selected nozzle will be shown:
◄The information box on the Implement screen
◄The Droplet/Pressure Status display from the status bar on
the guidance screens

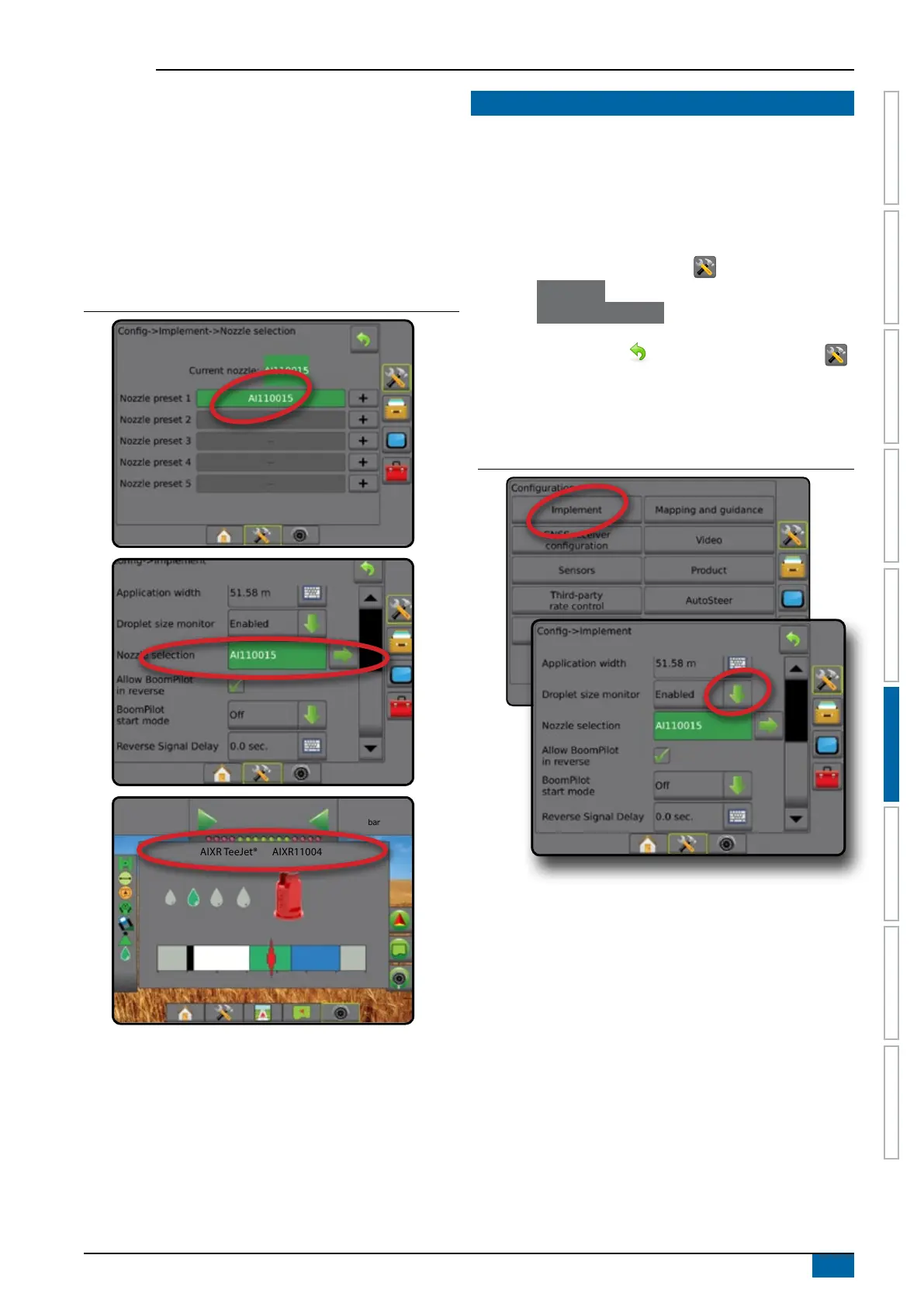

Figure 6-33: Current nozzle
VC 3.5
bar
Mark A
AIXR TeeJet® AIXR11004
Very coarse
0 1 2 3 4 5 6 bar
3.5
bar
DROPLET SIZE MONITOR
When the system includes a Pressure Sensor Interface Kit (PSIK),
Droplet Size Monitor can be enabled/disabled. The DSM then
becomes available on the operation screens.
Setup
Enable/disable DSM
1. Press CONFIGURATION side tab .
2. Press
Implement .
3. Press Droplet Size Monitor .
4. Select if droplet size monitor is enabled or disabled.
5. Press RETURN arrow or CONFIGURATION side tab
to return to the main Conguration screen.
NOTE: When Droplet size monitor is disabled, the droplet/
pressure status is not available on the guidance screen
status bar.
Figure 6-34: Droplet size monitor
