iCNC Performance
B-2 APPENDIX B Manual 0-5401

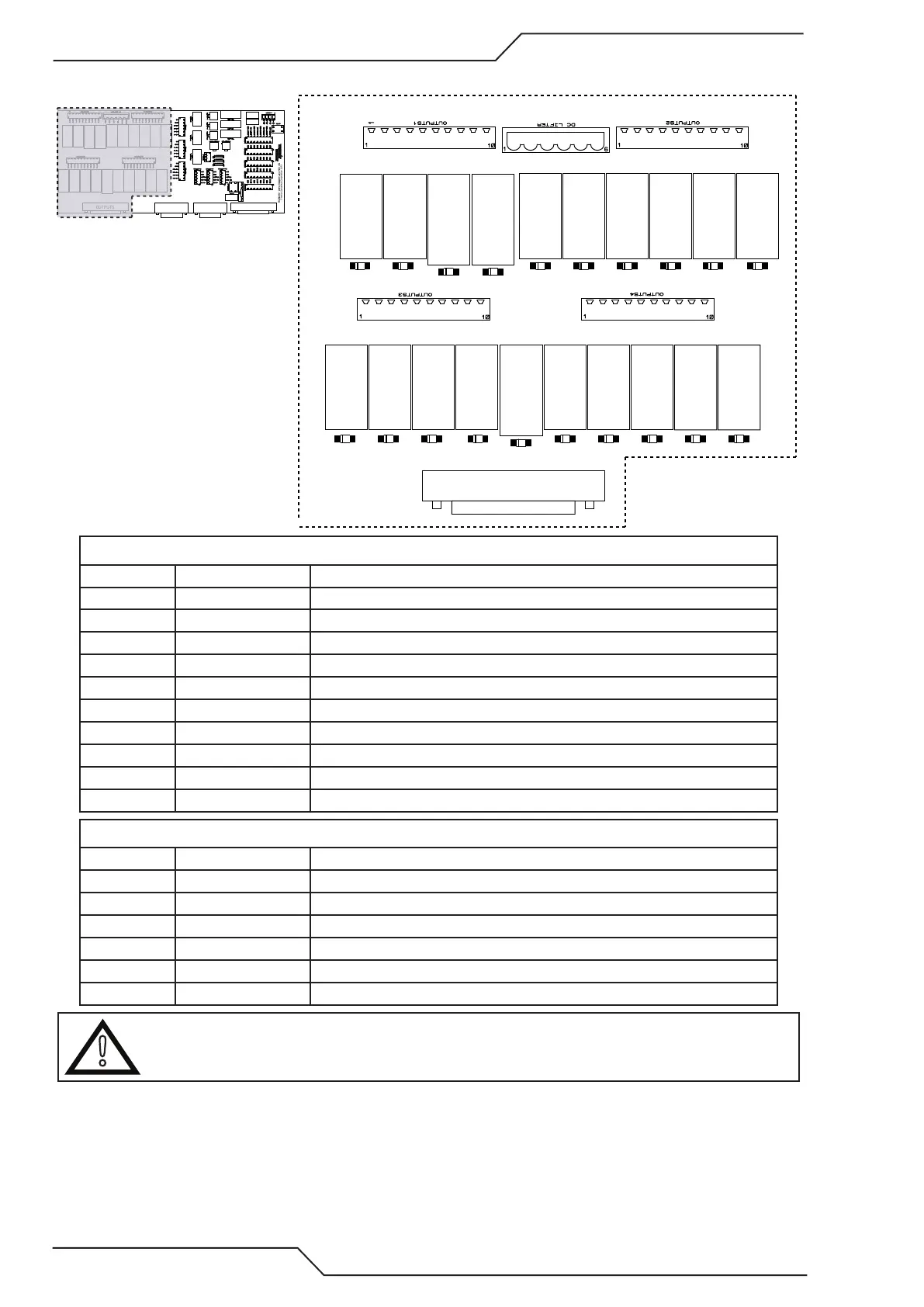

B.1.2 Output Connectors
OUTPUTS
10-NO 10-COM 11-NO 11-COM 12-NO 12-COM 13-NO 13-COM 14-NO 14-COM
15-NO 15-COM 16-NO 16-COM 17-NO 17-COM 18-NO 18-COM 19-NO 19-COM
00-NO 00-COM 01-NO 01-COM 02-NO 02-COM 03-NO 03-COM 04-NO 04-COM 05-NO 05-COM 06-NO 06-COM 07-NO 07-COM 08-NO 08-COM 09-NO 09-COM
VCC GND DC+ DC-
A-NO A-NC
D1D2
D3D4
D5D6D7D8D9D10
D11D12D13
D14
D15
D16D17
D18
D19D20
INPUTSSERVOENCODEROUTPUTS
Connectors Outputs 1-4, mating connector Wurth P/N 691321300010
Pin number Name Description
1 XX-NO Normally open (NO) relay contact, max rating 230VAC/3A 24VDC/2A
2 XX-COM Common (COM) to above signal
3 XX-NO Normally open (NO) relay contact, max rating 230VAC/3A 24VDC/2A
4 XX-COM Common (COM) to above signal
5 XX-NO Normally open (NO) relay contact, max rating 230VAC/3A 24VDC/2A
6 XX-COM Common (COM) to above signal
7 XX-NO Normally open (NO) relay contact, max rating 230VAC/3A 24VDC/2A
8 XX-COM Common (COM) to above signal
9 XX-NO Normally open (NO) relay contact, max rating 230VAC/3A 24VDC/2A
10 XX-COM Common (COM) to above signal
Connector: DC Lifter, mating connector Wurth P/N 691352710006
Pin number Name Description
1 VCC DC voltage input MAX 24VDC/6A, 48VDC/2A
2 GND DC GND
3 DC+ Lifter DC voltage output MAX 24VDC/6A, 48VDC/2A (Outbit 02)
4 DC- Lifter DC voltage output MAX 48VDC (Outbit 03)
5 A-NO NO DC voltage output MAX 24VDC/6A, 48VDC/2A (Outbit 14)
6 A-COM NC DC voltage output MAX 24VDC/6A, 48VDC/2A (Outbit 14)
!
CAUTION
Relay outputs are not fused. Provide fuses for overload protection.
