Thermal Dynamics iCNC Performance User Manual

iCNC Perfromance
Manual 0-5401 APPENDIX B B-25

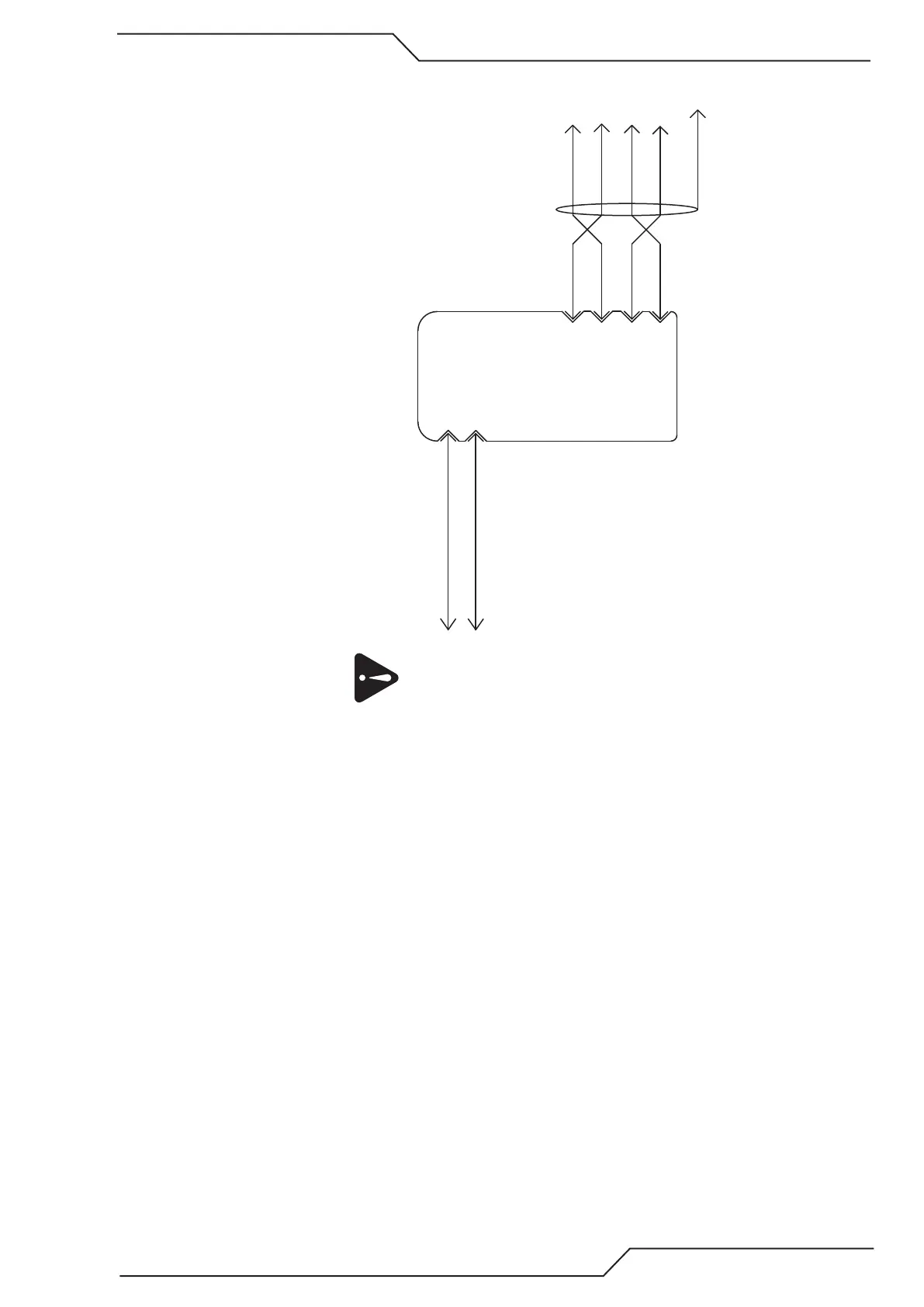

B.4.12 Connecting iHC to Panasonic A5
- Height control does not provide a servo enable signal - Motor rotation direction should be adjusted in servo drive parameters. - Maximum step frequency 146kHz
#25
GND
J53 GND #26
#7
COM+
J53 24VDC #7
#6 #5
Panasonic Minas A5 X4 Z-axis
PULS 1
#3
PULS 2
#4
J54 X STEP- #11 J54 X STEP+ #25
Cable shield to J54 connector casing or GND
SIGN 1
SIGN 2
J54 X DIR- #22
J54 X DIR+ #23

Thermal Dynamics iCNC Performance Specifications

General

Brand	Thermal Dynamics
Model	iCNC Performance
Category	Controller
Language	English
