Thermal Dynamics iCNC Performance - Collision Sensor Cable

iCNC Performance
B-18 APPENDIX B Manual 0-5401

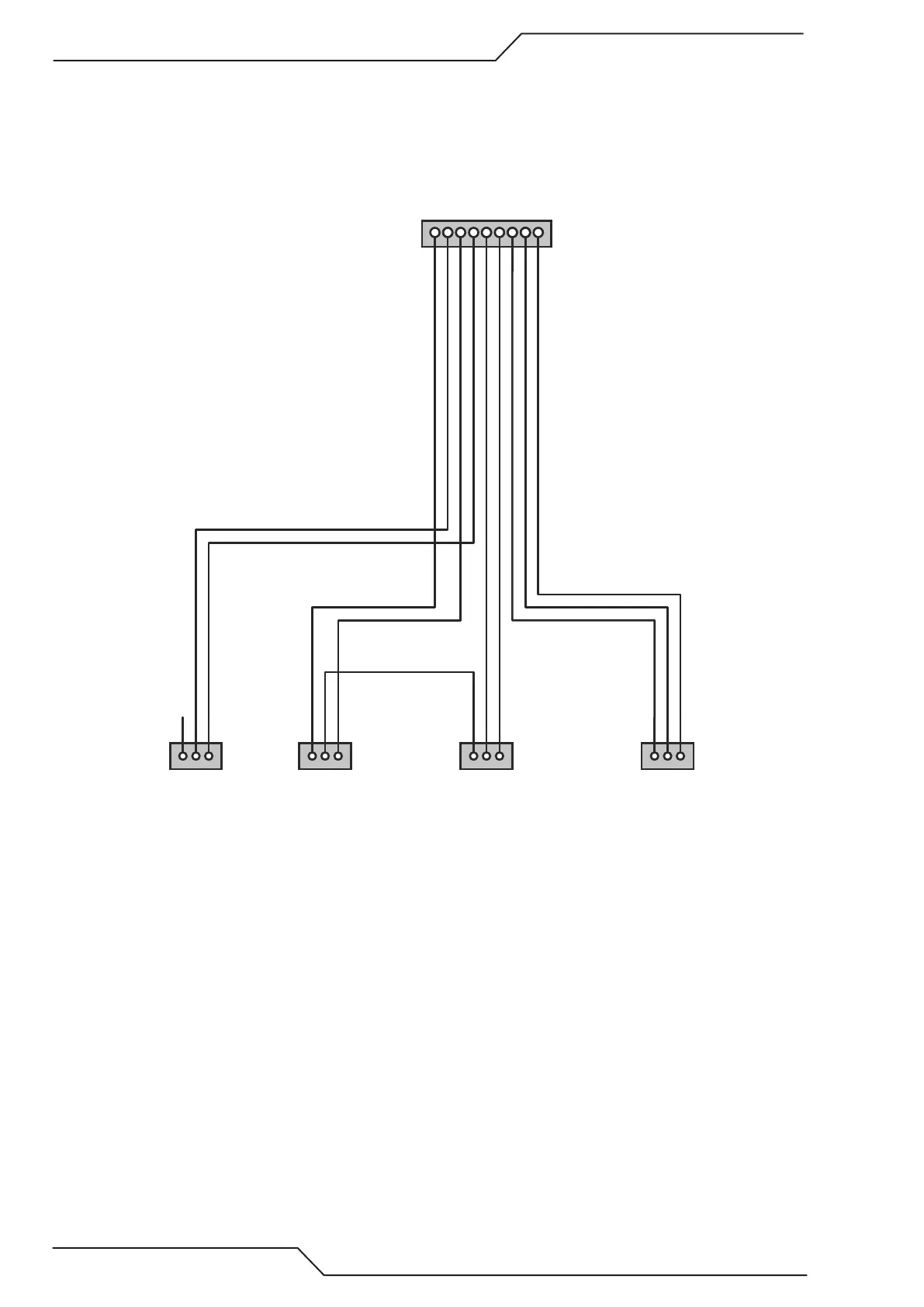

B.4.5 Collision Sensor Cable
1 2 3
UPPER LIMIT
Omron TL-W3MC1 Limit Switch or equiv.
1 2 3
COLLISION1
Omron E2B-S08KS02-MC-C1 or equiv.
1 2 3
COLLISION2
Limit Vcc / Brown
Limit Out / Black Limit GND / Blue
Collition Sensor Vcc / Brown
Collition Sensor Out / Black Collition Sensor GND / Blue
Collition Sensor Vcc / Brown
Collition Sensor Out / Black Collition Sensor GND / Blue
1 2 3 4 5 6 7 8 9
SENSORS
Connector: AMP 206705-2 (9pin male connector) Cable Clamp: AMP 182663-1 (size 13 clamp) Pins: AMP 1-66107-1 male
1 2 3
LASER
3pin plug female Binder 99-0976-100-03
Laser Vcc (max 24Vdc) Laser GND
Limit 24VDC
Limit out
Limit GND
Torch Breakaway 1 Output
Torch Breakaway 1 24VDC Torch Breakaway 2 24VDC
Torch Breakaway 2 GND
Pointer 24VDC
Pointer GND
Omron E2B-S08KS02-MC-C1 or equiv.
