Thermal Dynamics iCNC Performance - 2.3 Dimensions

iCNC Performance
2-2 SPECIFICATION Manual 0-5401

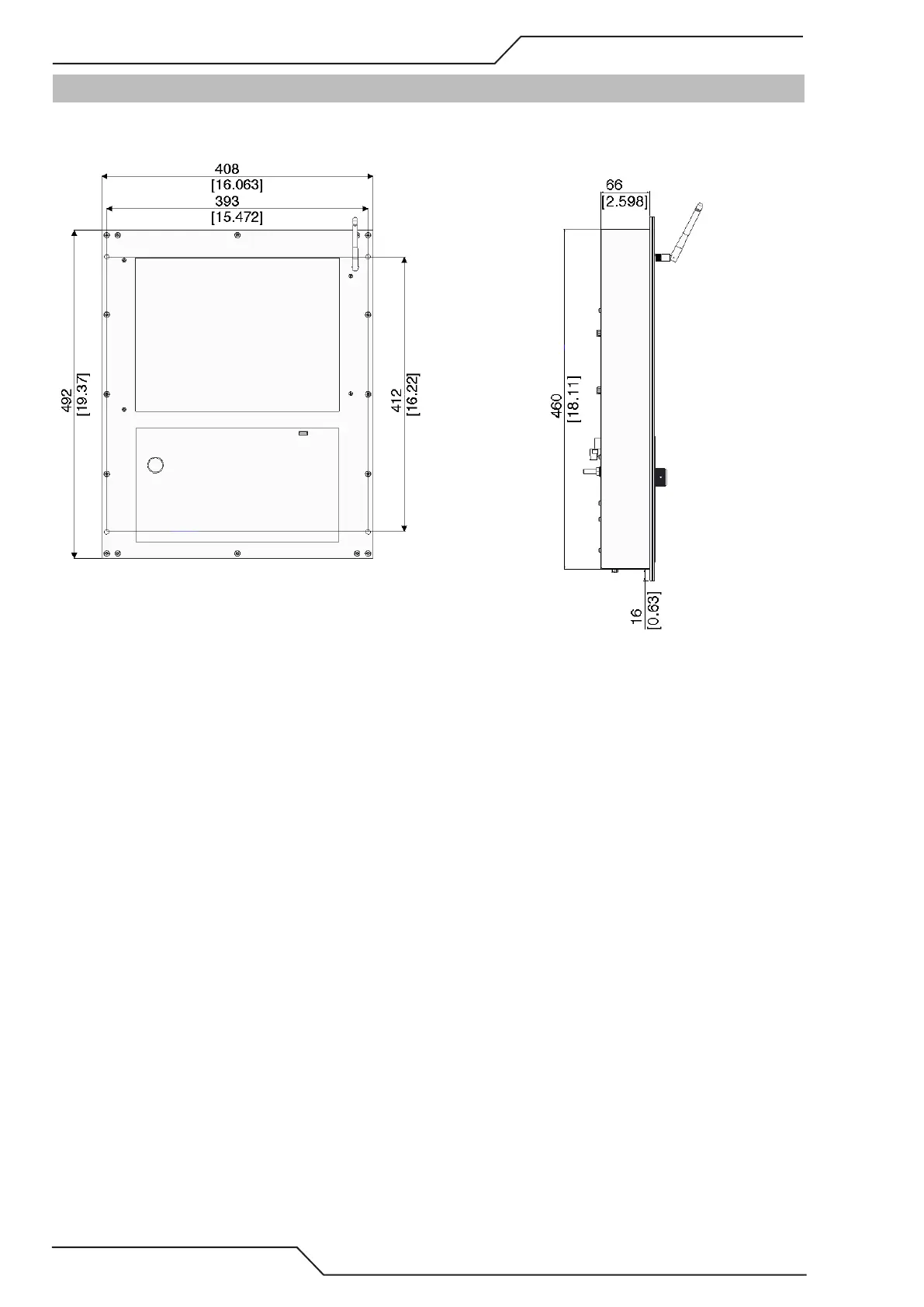

2.3 Dimensions
iCNC Performance has 4 x 8mm holes for mounting screws. There is a 16mm [0.63in] collar going around the unit.
Dimensions and weight (this does not take in account the dimensions for the connectors or cables):
Width: 408 [16.063]
Height: 492 [19.37]
Depth: 66 [2.598]
Weight: Under 7kg [16 lbs.]
