Thermal Dynamics iCNC Performance User Manual

iCNC Perfromance
Manual 0-5401 SPECIFICATIONS 2-3

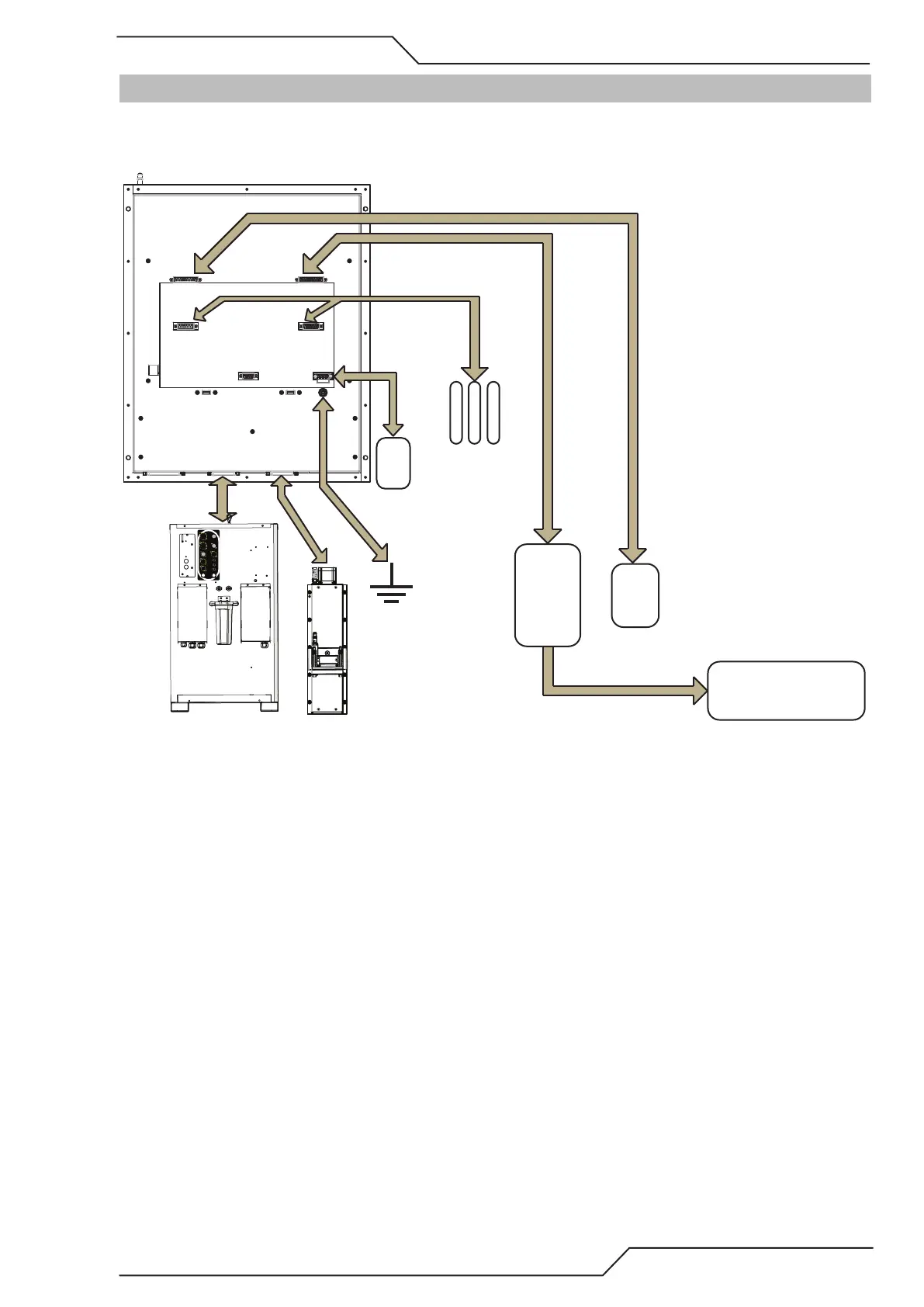

2.4 Basic System Layout
iCNC Performance has connections for inputs, outputs, motion control and a communication port. Usually the outputs
(grounding) controls relays and all inputs needs to be dry contact or common grounding inputs (more details on I/O section).
J48-EncoderJ47-Servo
Power
24VDC
J46-OutputsJ45- Inputs
J54-LifterJ55-Plasma I/O
USER INPUT
HEIGHT CONTROL
F1 - 8A SB 230 VAC F2 - 8A SB 230 VAC
CB4 - 5A 120 VAC
CB3 - 5A 24 VAC
CB2 - 5A 120 VAC
J55 - GCM
J15 - CNC
J59 - RAS
J70 - HE
J54 - TSC /COMM
PLASMA
Output
Relays
Inputs:
- Limits
- ...
Oxyfuel: - Solenoids
- Lifter
- ...
Servo Drives
Star Ground
Work
24VDC power
Supply
RS-485
iHC Lifter
