iCNC Performance
6-6 iHC Manual 0-5401

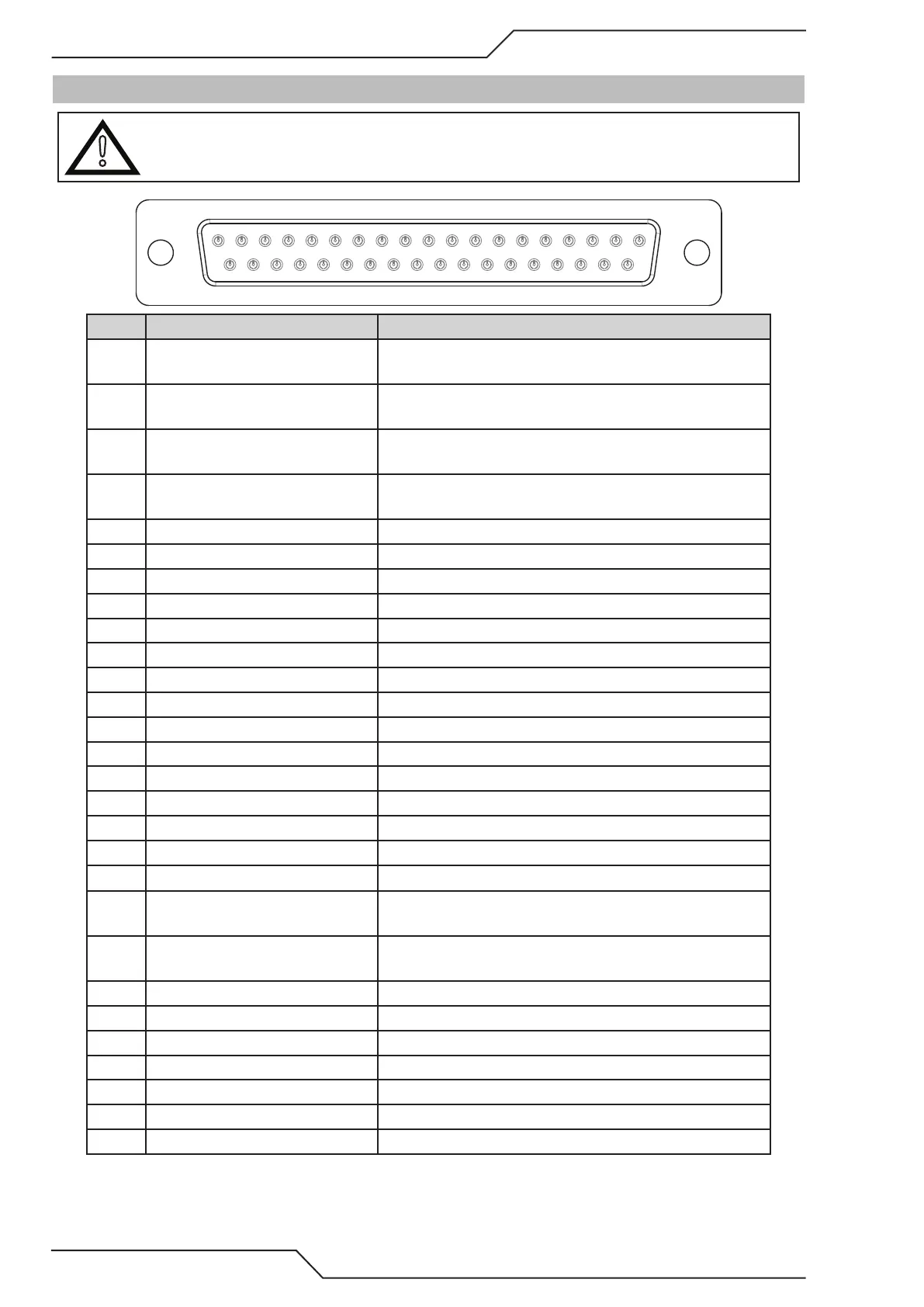

6.6 J53 CNC
CAUTION
When iHC is used with iCNC Performance all CNC to iHC signals are wired internally. Usually there is no need to connect
anything to J53 CNC connector.
12345678910111213141516171819
202122232425262728293031323334353637
Pin Name Description
1 IHS Start In IHS Start input, activate by providing a dry closing con-
tact to Input GND2 pin
2 Up In Torch Up input, activate by providing a dry closing con-
tact to Input GND2 pin
3 Marking In Marking input, activate by providing a dry closing con-
tact to Input GND2 pin
4 Laser pointer Laser pointer input, activate by providing a dry closing
contact to Input GND2 pin
5 Input GND2 Input GND2
6 N/A Not used
7 24VDC Out 24VDC Output max 0.5A
8 N/A Not used
9 N/A Not used
10 N/A Not used
11 N/A Not used
12 N/A Not used
13 IO Shield Cable shield
14 OK to Move COM OK to Move output, NO Relay contact, max 48V 0.5A
15 OK to Move NO OK to Move output, NO Relay contact, max 48V 0.5A
16 System Error COM System error output NO Relay contact, max 48V 0.5A
17 System Error NO System error output, NO Relay contact, max 48V 0.5A
18 Optional 1 COM Optional output, NO Relay contact, max 48V 0.5A
19 Optional 1 NO Optional output, NO Relay contact, max 48V 0.5A
20 Hold In Hold input, activate by providing a dry closing contact to
Input GND2 pin
21 Down In Torch down input, activate by providing a dry closing
contact to Input GND2 pin
22 Maintain In Reserved for future use
23 Input GND2 Input GND2
24 IO Shield Cable shield
25 Shield Cable shield
26 GND Out1 GND for 24VDC output in pin #7
27-34 N/A Not used
35-37 N/A Reserved fo future use
