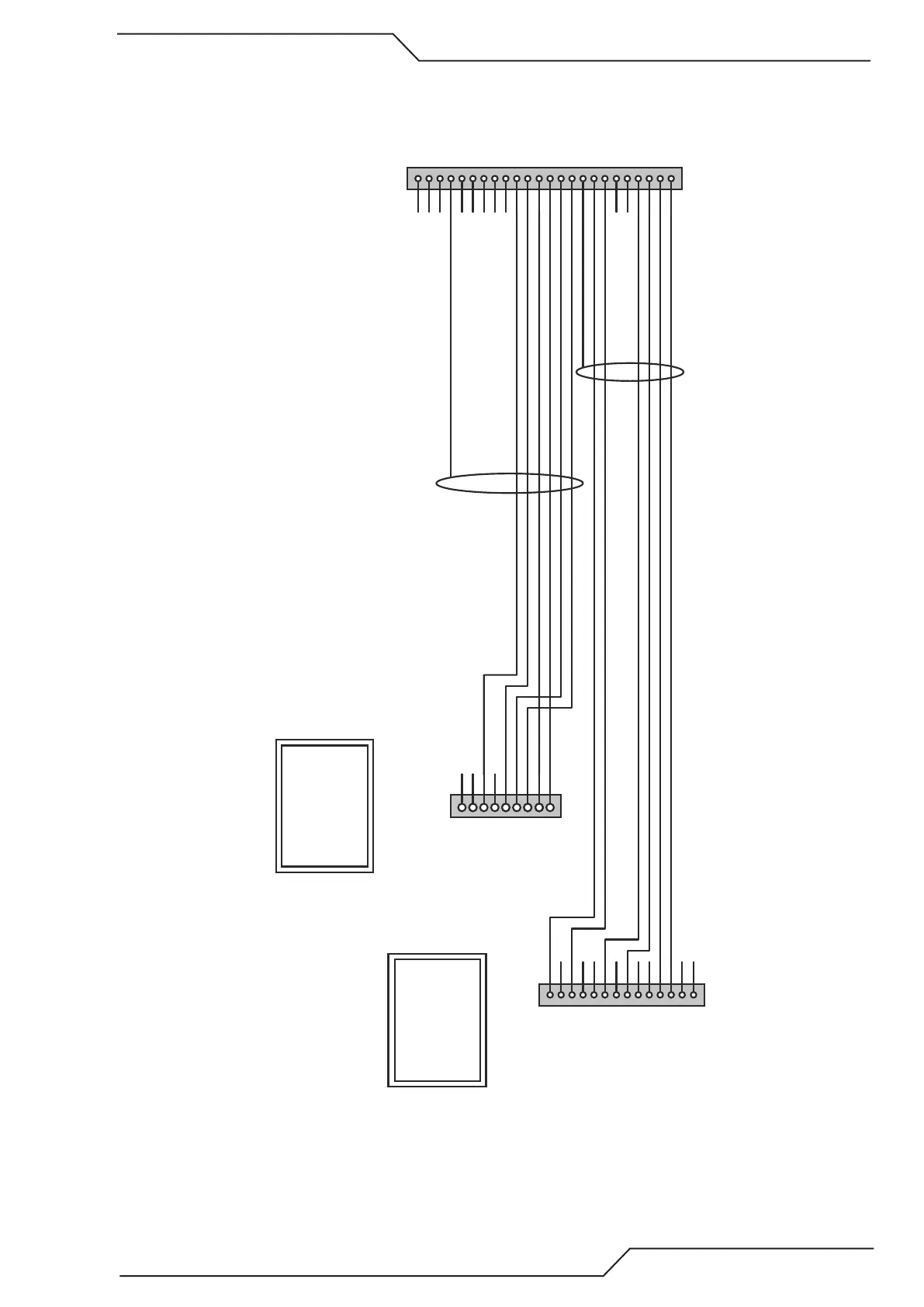

B.4.8 Auto-Cut 200 XT Plasma Adapter Cable
3 x 2 x 0.25mm²
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
J56 - PLASMA ADAPTER
Connector: AMP 206838-2 (24pin Male Receptacle) Pins: AMP 1-66103-8 (pin tin) Cable Clamp: AMP 1-206138-0 (size 23)
Divider Shield
Plasma Start COM
Plasma Start NO
IHS Active NO
IHS Active COM
Marking COM
Marking NO
Input GND
Main Arc In
Arc Voltage-
Arc Voltage+
Sense Relay GND
Sense Relay 24V
Contact GND
Plate Contact In
RS485-TX+
RS485-TX-
RS485-RX-
RS485-RX+
RS485-GND
IO Shield
Wire Colors on J15:
3 - white 4 - brown
7 - green
9 - yellow 12 - grey 14 - pink
1 2 3 4 5 6 7 8 9
J65 - HEIGHT CONTROL
Connector: AMP 206708-2 (9pin Female Plug) Pins: AMP 1-66105-9 (socket tin) Cable Clamp: AMP 206966-9 (size 13)
CNC Start (+) CNC Start (-) Preow ON (+) OK to Move (+) Preow ON (-) OK to Move (-)
Contact Out Contact GND ARC+ ARC- Sense 24V Sense GND
Label: J65 - HEIGHT CONTROL
Label: J15 - CNC
Wire Colors on J65:
1 - white 2 - brown 3 - green 4 - yellow 5 - grey 7 - pink
1 2 3 4 5 6 7 8 9
10 11 12 13 14
J15 - CNC
Connector: AMP 182649-1 (14pin Male Plu
g)
Pins: AMP 1-66103-8 (pin tin) Cable Clamp: AMP 1-206070-0 (size 17)
Shield
Shield
