B.4.11 Ultra-Cut & Auto-Cut blue units (Sanrex) Plasma Adapter Cable
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

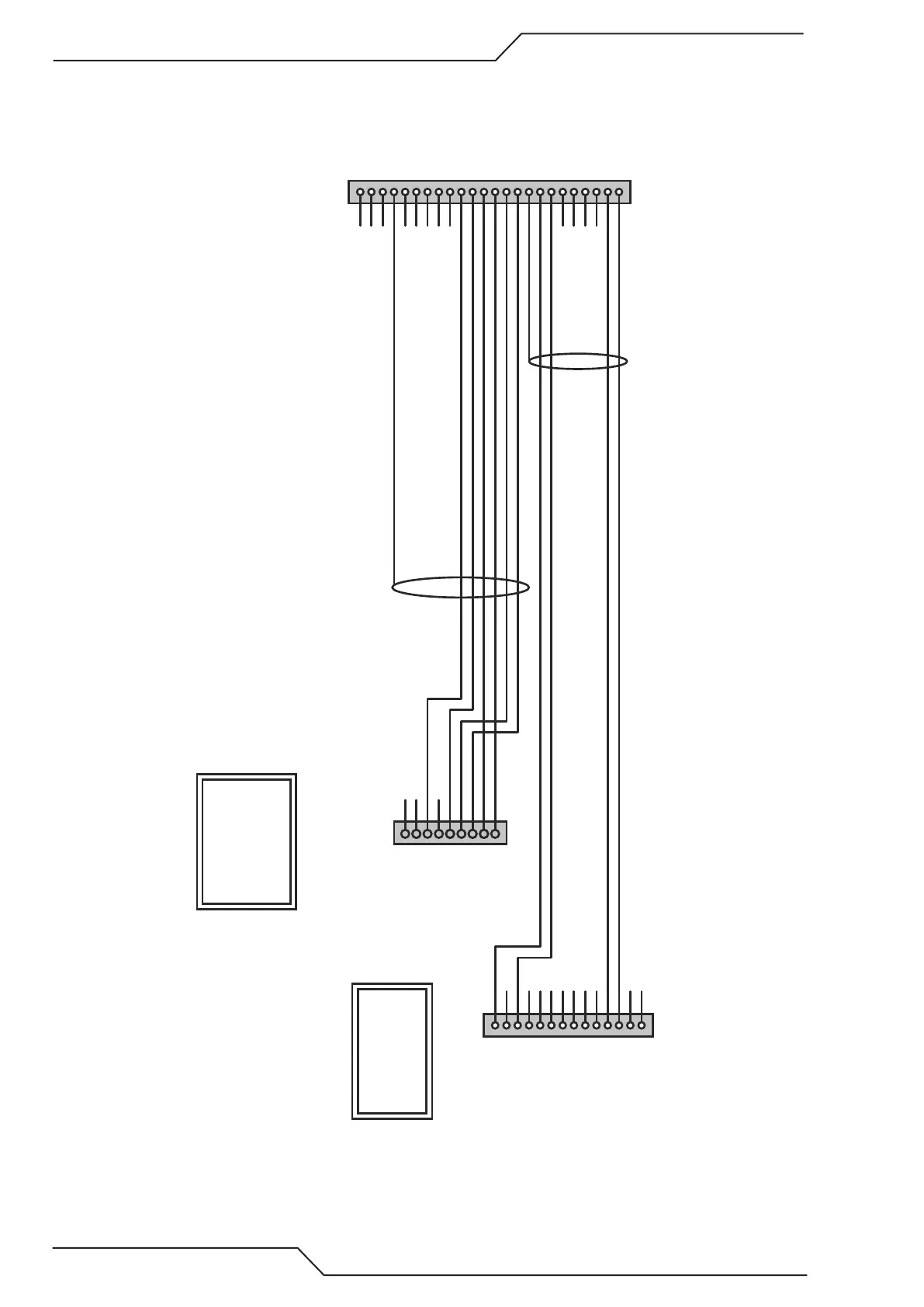

J56 - PLASMA ADAPTER
Connector: AMP 206838-2 (24pin Male Receptacle)
Pins: AMP 1-66103-8 (pin tin)
Cable Clamp: AMP 1-206138-0 (size 23)
Divider Shield
Plasma Start COM
Plasma Start NO
IHS Active NO
IHS Active COM
Marking COM
Marking NO
Input GND
Main Arc In
Arc Voltage-
Arc Voltage+
Sense Relay GND
Sense Relay 24V
Contact GND
Plate Contact In
IO Shield
Wire Colors on J15:
3 - white
4 - brown
12 - grey
14 - pink
Cable shield
1
2
3
4
5
6
7
8
9
J65 - HEIGHT CONTROL
Connector: AMP 206708-2 (9pin Female Plug)
Pins: AMP 1-66105-9 (socket tin)
Cable Clamp: AMP 206966-9 (size 13)
CNC Start (+)
CNC Start (-)
OK to Move (+)
OK to Move (-)
Contact Out
Contact GND
ARC+
ARC-
Sense 24V
Sense GND
Label: J65 - HEIGHT CONTROL
Label: J15 - CNC
Wire Colors on J65:
1 - white
2 - brown
3 - green
4 - yellow
5 - grey
7 - pink
Cable shield
1
2
3
4
5
6
7
8
9
10
11
12
13
14
J15 - CNC
Connector: AMP 182649-1 (14pin Male Plug)
Pins: AMP 1-66103-8 (pin tin)
Cable Clamp: AMP 1-206070-0 (size 17)
3 x 2 x 0.25mm²
