iCNC Performance
7-22 iCNC SETUP Manual 0-5401

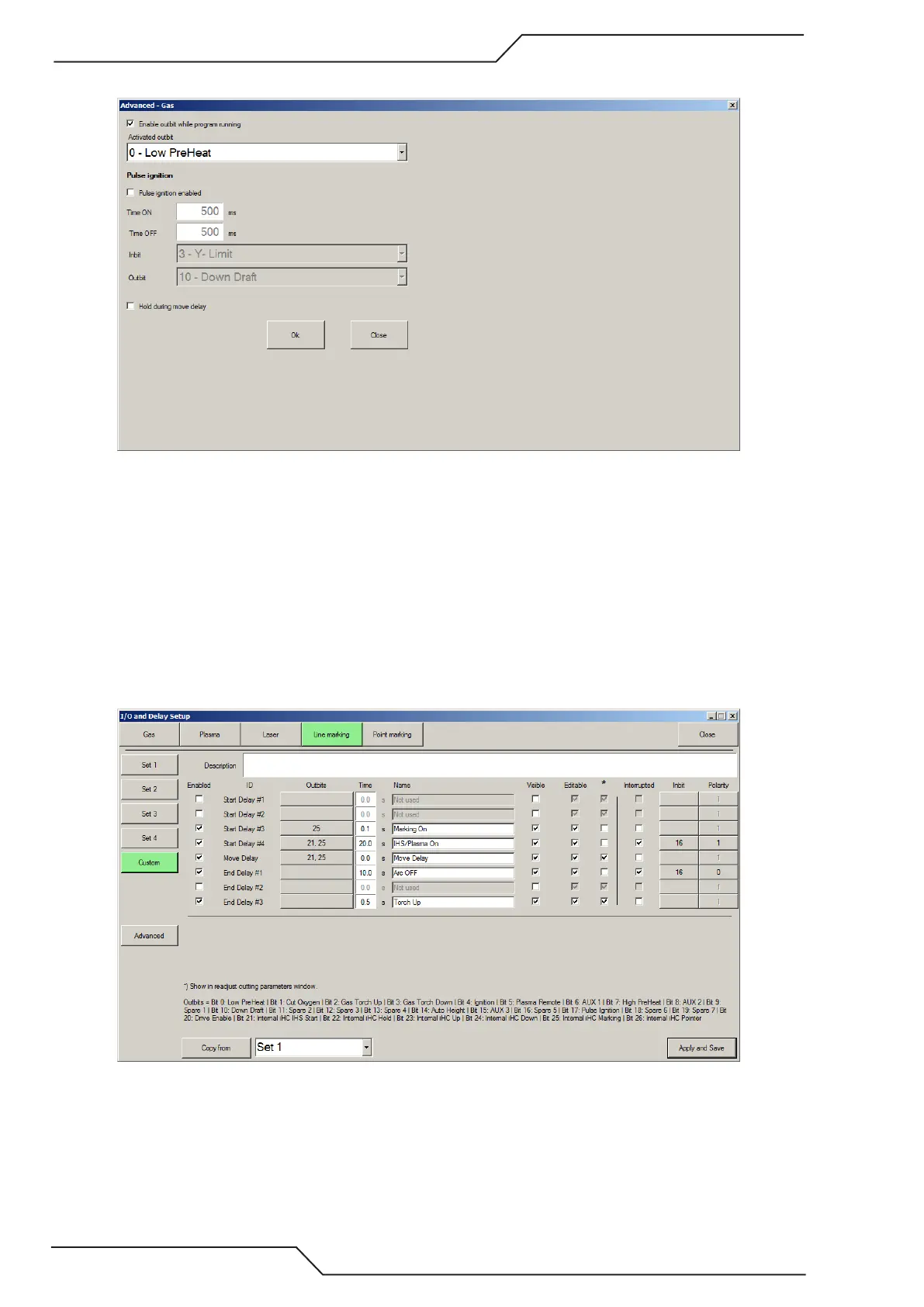

7.5.2.5 Advanced
• Activated outbits during program running with gas process Enable/Disable the feature. This will turn the selected
outbit ON always when gas cutting program is running.
• OutBit Number Outbit that will be turned and kept on when gas cutting process is running
• Pulse ignition Pulse ignition Enabled/Disabled. Pulse ignition will toggle the selected outbit ON/OFF when outbit is
acitvated.
• Time on Time that outbit is ON in ms.
• Time off Time that outbit is OFF in ms.
• Inbit Number Inbit that will activate pulsing.
• Outbit Number Outbit that will be pulsed, pulsing frequency/duty cycle is determined by the ON/OFF times.
7.5.2.6 I/O and Delay Line Marking
