iCNC Performance
Manual 0-5401 iHC 6-1
SECTION 6: iHC
6.1 Lifter Specifications
Arc voltage division 1:80
Arc voltage measurement range 0 - 327VDC
Arc voltage measurement resolution 0.02V
Arc voltage measurement accuracy ± 0.2%
Arc voltage set range 50 - 300VDC
Motor type Oriental Motor PKP266D28A-L
Motor step angle 1.8 °
Motor holding torque 1.4 Nm / 12.391 lb. in
Lifter max speed >5000 mm/min with 5 mm ball screw lead (@ 1000rpm)

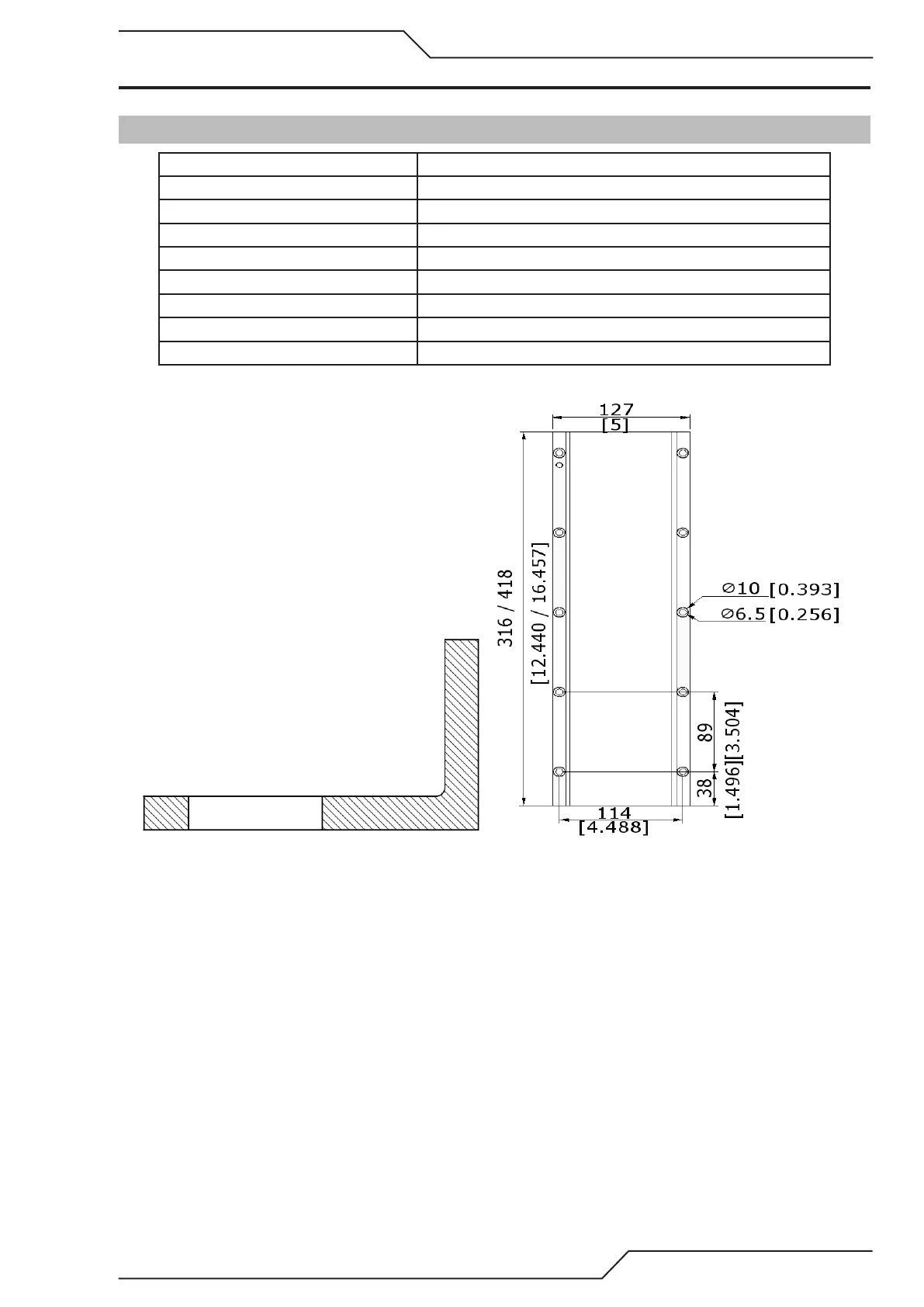

Art# A-12566
Lifter Dimensions
Height: 316/418 mm [12.44/16.47in]
Width: 127 mm [5.00in]
Depth: 100 mm [3.93in]
Collision Sensor
Height: 85 mm [3.35in]
Width: 100 mm [3.93in]
Depth: 125 mm [4.92in]
• Dimensions above are the measurements without motor or other appliances.
• The base plate first mounting holes are 38 mm from the bottom. All other mounting holes are distributed evenly after that with 89
mm spacing in accordance to the hole center line. Horizontally the distance between the holes is 114 mm. Use M6 screws with
the base plate.
• 8 inch stroke base plate is longer (418 mm instead of 316 mm) and it has one more set of mounting holes on top for M6 screws
(again 89 mm up from the pair below).
• Torch holder is available for both 50 mm and 35 mm torch heads.
• Torch holder mounting surface is 100 mm out from the bottom of the Lifter base plate.
