Thermal Dynamics iCNC Performance - 2.6 Connector Locations

iCNC Performance
2-6 SPECIFICATION Manual 0-5401
2.6 Connector Locations

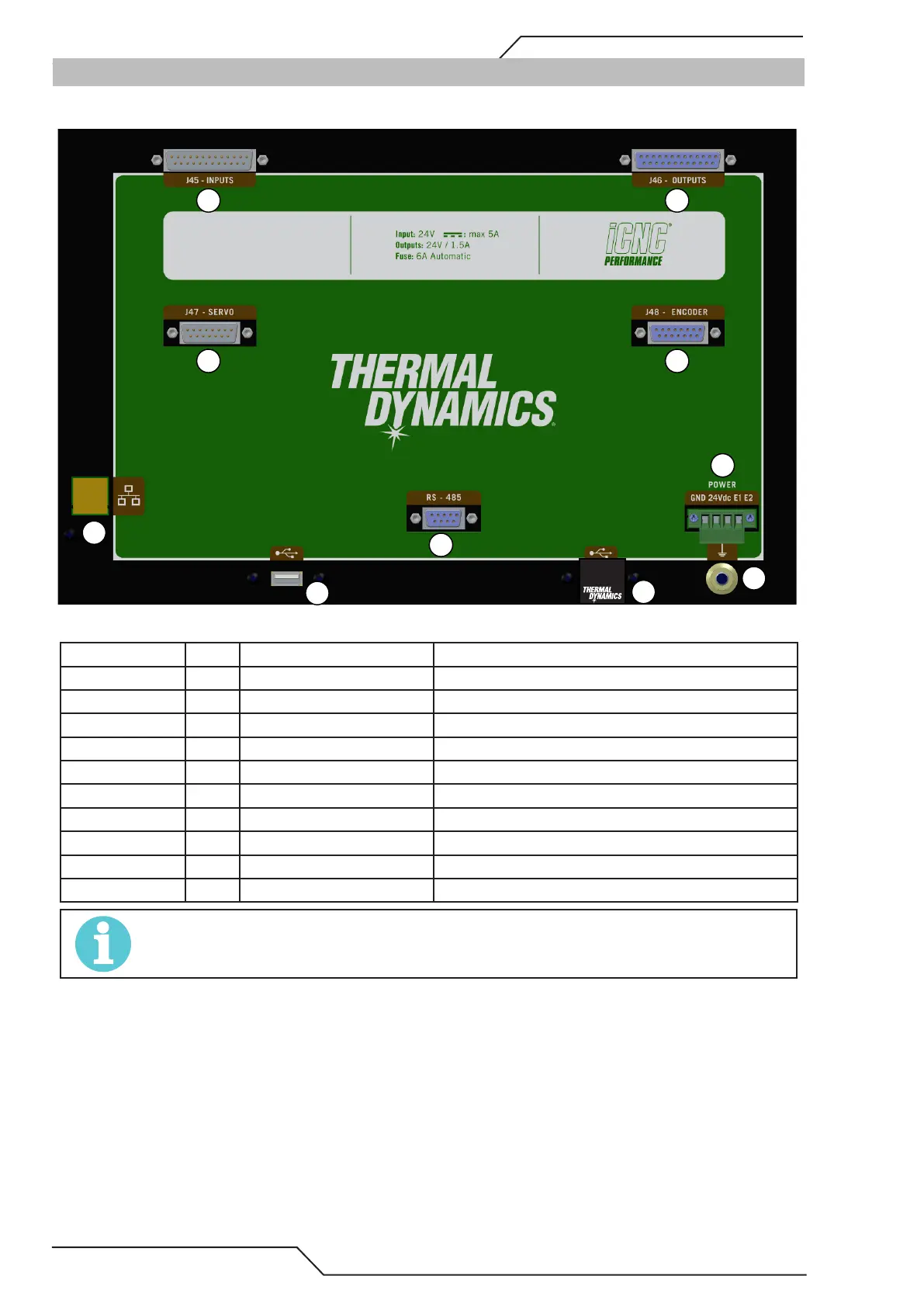

On the back of the iCNC Performance you have connectors for:
1. 2.
3. 4.
7.
5.
9.
10.
8.
6.
®
BACKUP
DO NOT
REMOVE
Picture reference ID Name Mating connector (example)
1 J45 Inputs 25 pin female D-Sub, Wurth 618 025 249 23
2 J46 Outputs 25 pin male D-Sub, Wurth 618 025 248 23
3 J47 Servo 15 pin female D-Sub, Wurth 618 015 249 23
4 J48 Encoder 15 pin male D-Sub, Wurth 618 015 248 23
5 LAN LAN RJ45
6 USB USB USB
7 Serial RS - 485 9 pin male D-Sub, Wurth 618 009 248 23
8 USB Backup USB
9 Power Power WR-TBL Serie 3437, Wurth 691 343 710 004
10 GND PE GND M6/1/4” ring connector
NOTE!
See full connector and pin description from the appropriate connector section.
