iCNC Perfromance
Manual 0-5401 APPENDIX B B-19

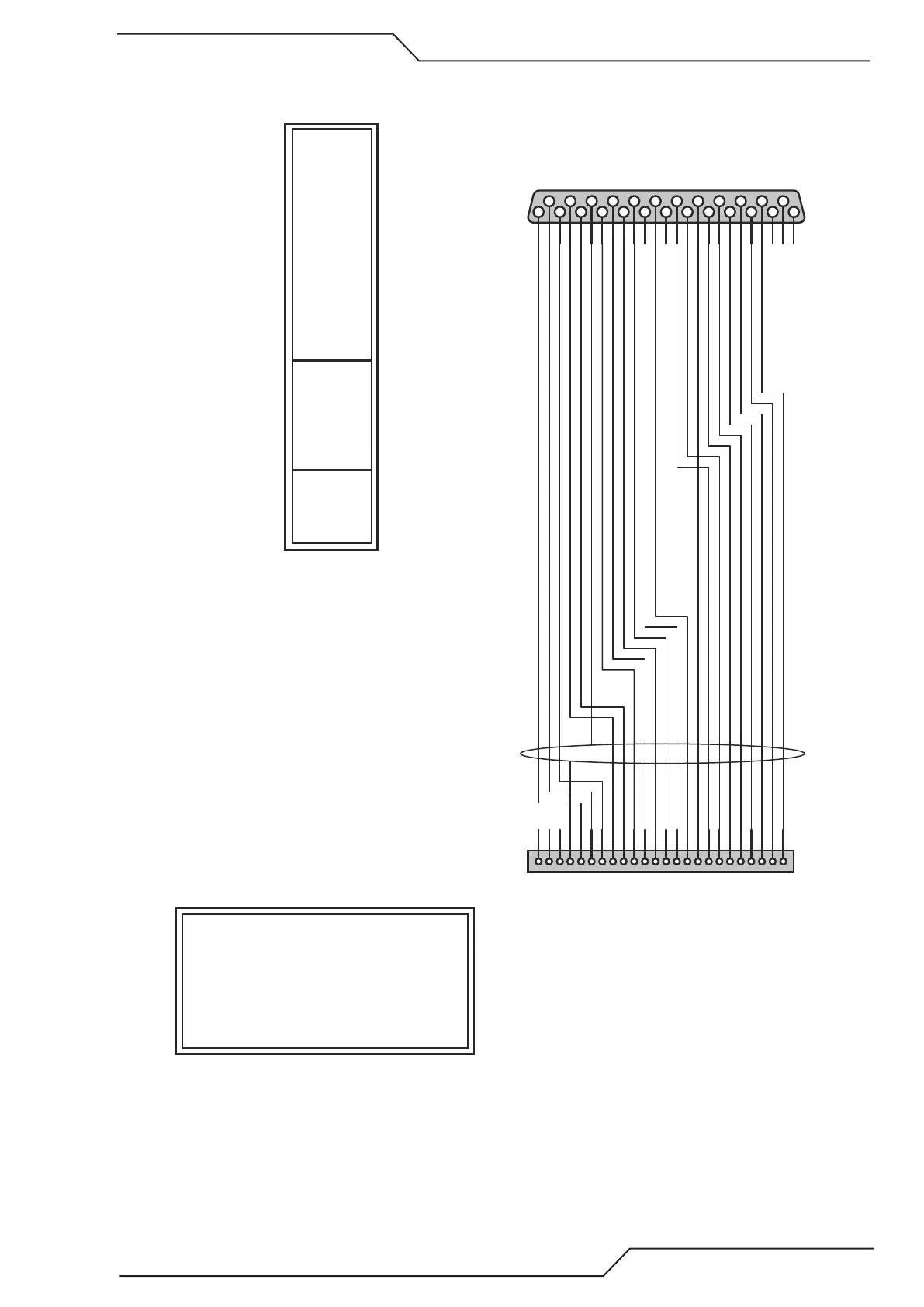

B.4.6 Plasma and VDC Adapter Cable
Wire Colors on J56:
1 - white
2 - brown
3 - green
4 - yellow
5- grey
6 - pink
7 - blue
8 - red
9 - black
20 - violet
10 - grey-pink
11 - red-blue
12 - white-green
13 - brown-green
14 - white-yellow
15 - yellow-brown
16 - white-grey
17 - grey-brown
18 - white-pink
19 - pink-brown
Description Cat Part#
J55 iHC XT Plasma & VDC Cable - 25 ft 15-5023
15-5024
15-5025
15-5026
J55 iHC XT Plasma & VDC Cable - 50 ft
J55 iHC XT Plasma & VDC Cable - 75 ft
J55 iHC XT Plasma & VDC Cable - 100 ft
Cable: Shielded10 x 2 x 0.25mm²
IO Shield
Label: J56 Plasma Adapter
1
14
2
15
3
16
4
17
5
18
6
19
7
20
8
21
9
22
10
23
11
24
12
25
13
J55 - PLASMA
Connector: Wurth 61802524923 (female subD25)
Plastic Hood: Wurth 61802525322
Divider Shield
Plasma Start COM
Plasma Start NO
IHS Active NO
IHS Active COM
Marking COM
Marking NO
Input GND
Main Arc In
Arc Voltage-
Arc Voltage+
Sense Relay GND
Sense Relay 24V
Contact GND
Plate Contact In
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
J56 - PLASMA ADAPTER
Connector: AMP 206837-1 (24pin Female Plug)
Pins: AMP 1-66105-9 (socket tin)
Cable Clamp: AMP 1-206138-0 (size 23)
RS485-TX+
RS485-TX-
RS485-RX-
RS485-RX+
RS485-GND
Divider Shield
Plasma Start COM
Plasma Start NO
IHS Active NO
IHS Active COM
Marking COM
Marking NO
Input GND
Main Arc In
Arc Voltage-
Arc Voltage+
Sense Relay GND
Sense Relay 24V
Contact GND
Plate Contact In
RS485-TX+
RS485-TX-
RS485-RX-
RS485-RX+
RS485-GND
IO Shield
To Next Page
