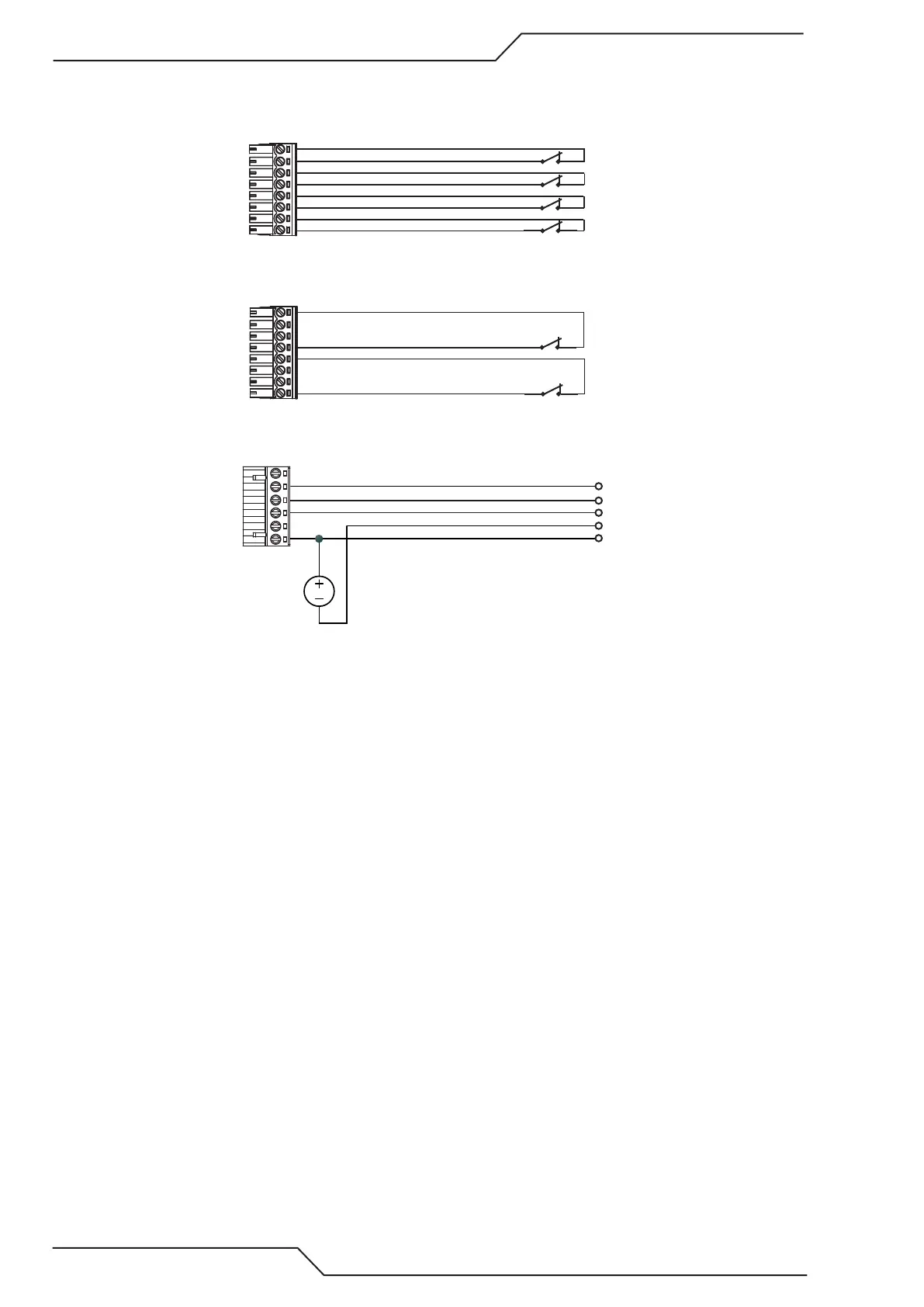

B.1.9 Servo Adapter Card Alternative Connections
1 2
Over travel X+
Limits
Limits1 NC
1 2
Over travel X-
1 2
Over travel Y+
1 2
Over travel Y-
DC Lifter
GND
DC-
A-COM
VCC
DC+
A-NO
24VDC
Supply
motor control
Limits1 COM
Limits2 NC
Limits2 COM
Limits3 NC
Limits3 COM
Limits4 NC
Limits4 COM
Using a single input (In00) with 4 over travel switches
Set limit switches to X-home inputs in the setup, see section 7.5.1
1 2
Over travel X
Limits
Limits1 NC
1 2
Over travel Y
Limits1 COM
Limits2 NC
Limits2 COM
Limits3 NC
Limits3 COM
Limits4 NC
Limits4 COM
Motor control with 24VDC inputs and capacitive height control
Capacitive sensing ON
Torch Up
Torch Down
24VDC
GND
Using a single input (In00) with 2 over travel switches
Set limit switches to X-home inputs in the setup, see section 7.5.1
Closed connection between Limits4 COM and Limits1 NC will activate the input
