Thermal Dynamics iCNC Performance User Manual

iCNC Performance
Manual 0-5401 iHC 6-3

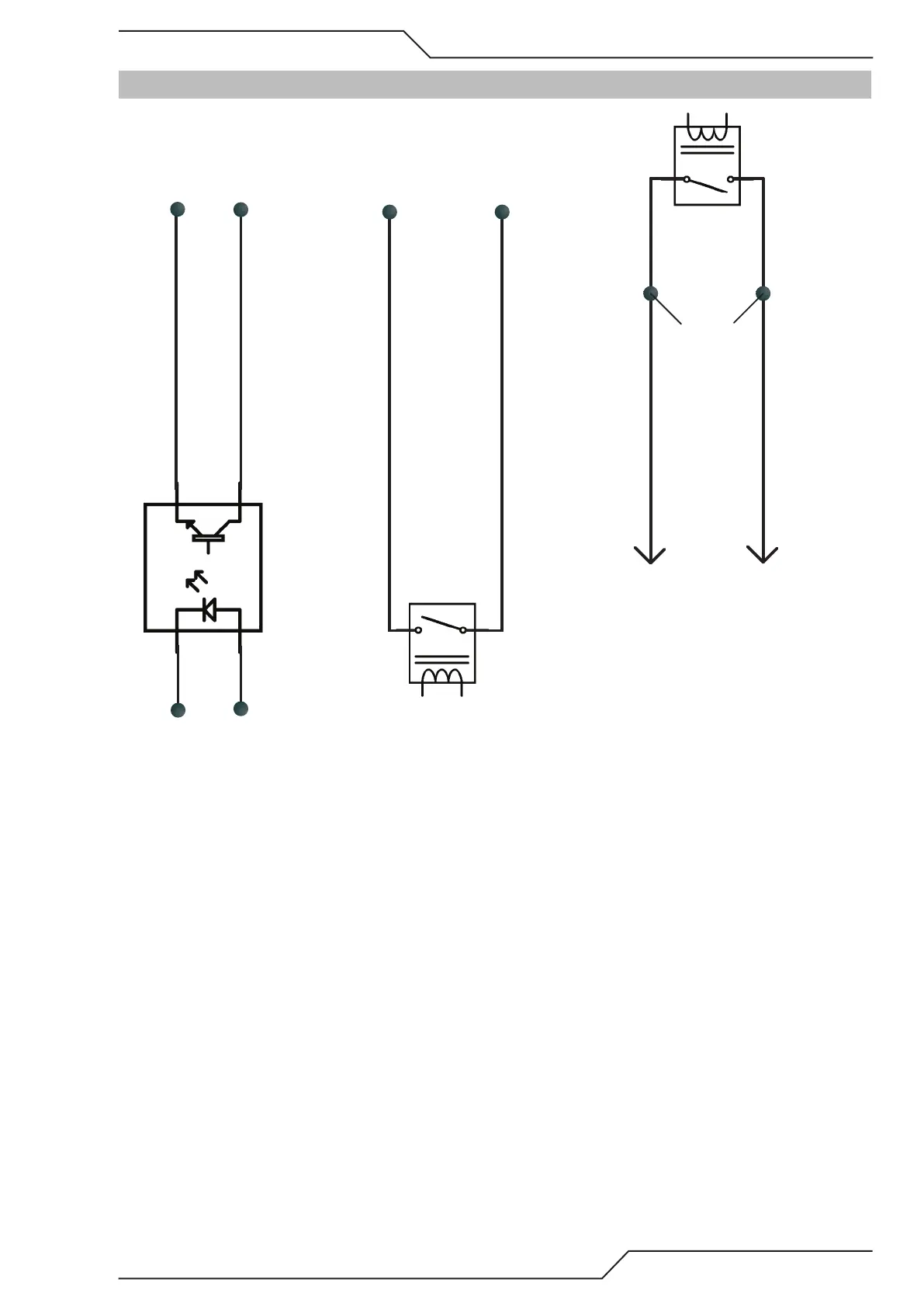

6.3 IO Example Connections
Output example
Input example using a relay
iHC XT Internal Plasma Start Relay
J55 pin #3
J55 pin #15
To plasma power supply start input To plasma power supply start input
Ok to Move Input
J55 pin #19 J55 pin #6
Plasma device controlled external relay
Input example using an optocoupler
Plasma device controlled output
J55 pin #19 J55 pin #6
Ok to Move Input
Input GND
Input
GND
Common Output
