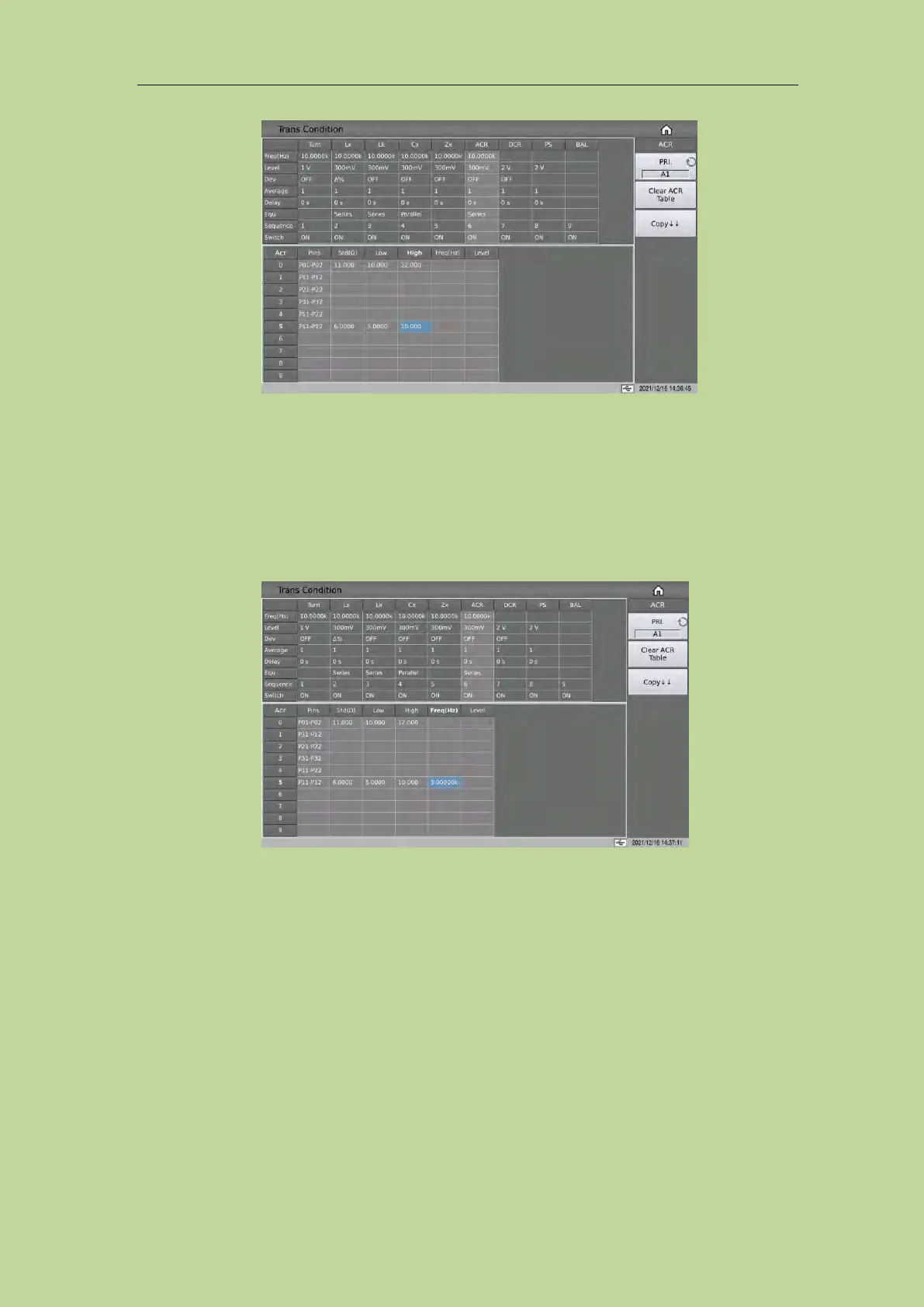

7.11.7.2 ACR Multi-frequency Setup
If the user needs to use different frequencies to test different ACR pins of the transformer, in the
transformer ACR limit setting table, touch or move the cursor to the frequency area of ACR, after
inputting the frequency in this area, the frequency here will be used automatically during the test. If
the parameter is not set, the frequency of the ACR in the test condition table will be used.
7.11.7.3 ACR Multi-level Setup
If the user needs to use different levels to test different ACR pins of the transformer, in the
transformer ACR limit setting table, touch or move the cursor to the ACR level area, after inputting
the level in this area, it will be used automatically during the test. If the parameter is not set, the
ACR level in the test condition table will be used.
