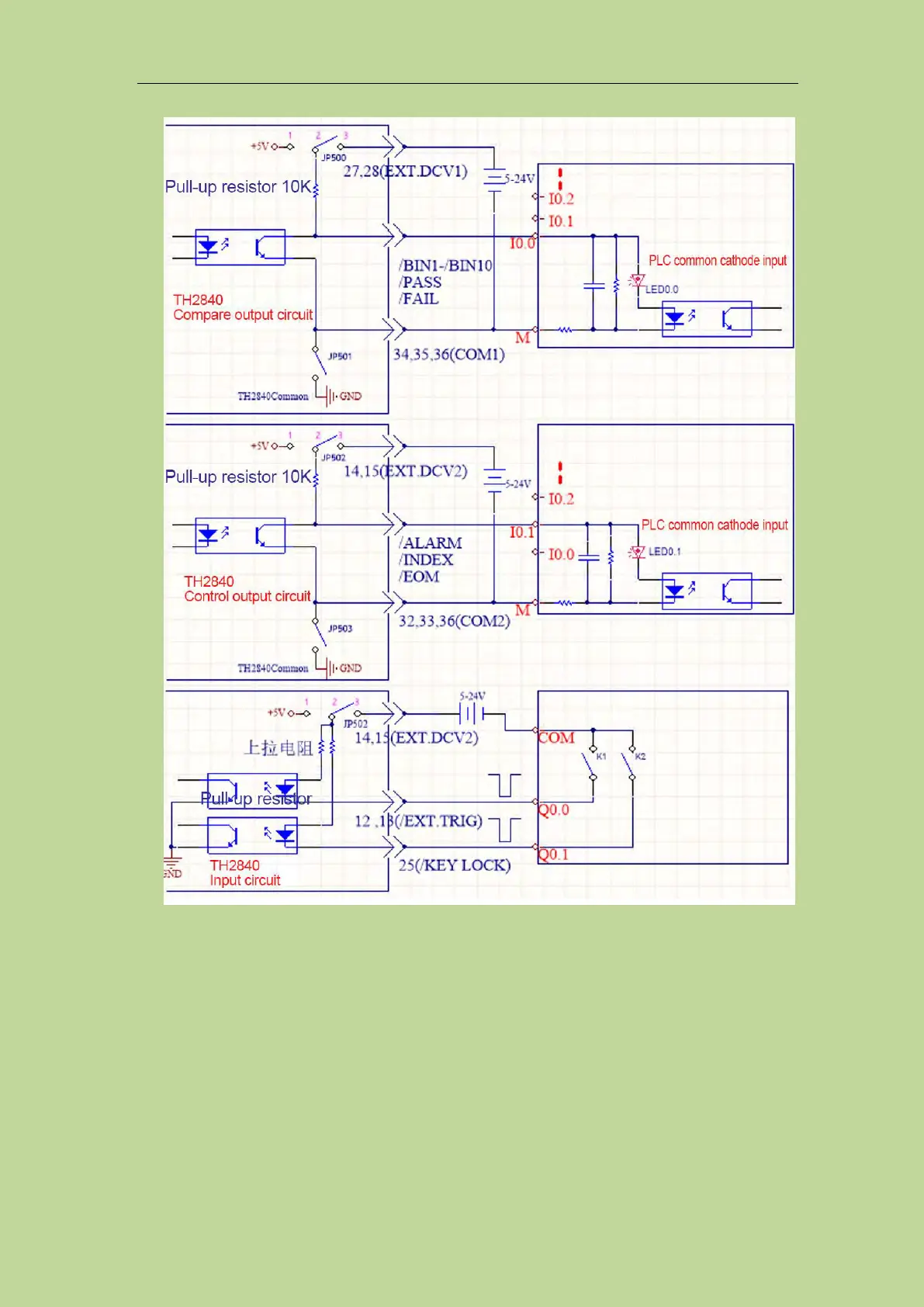

Figure 10-8 PLC wiring diagram where handler interface and input circuit are common cathode
10.1.4 Using Operations
After the HANDLER interface is correctly wired to the PLC, set the limit list to use the comparison
function. Then set the HANDLER interface so that it can OUTPUT/INPUT (output / input) signal.
The following operation process is the steps of using the comparison function of the HANDLER
interface.
Comparison function setting procedure
The following operation steps are the steps of compare functions using the HANDLER interface
(only for the functions of the automatic component analyzer)
To Next Page
