7.10.2 Series Pins Setup
Before setting the transformer series pin, you need to confirm the parameters of the series test. For
example, the Lx inductance needs to set the series pin. You can select the function Lx in the
parameter menu bar, and then input the series pin.

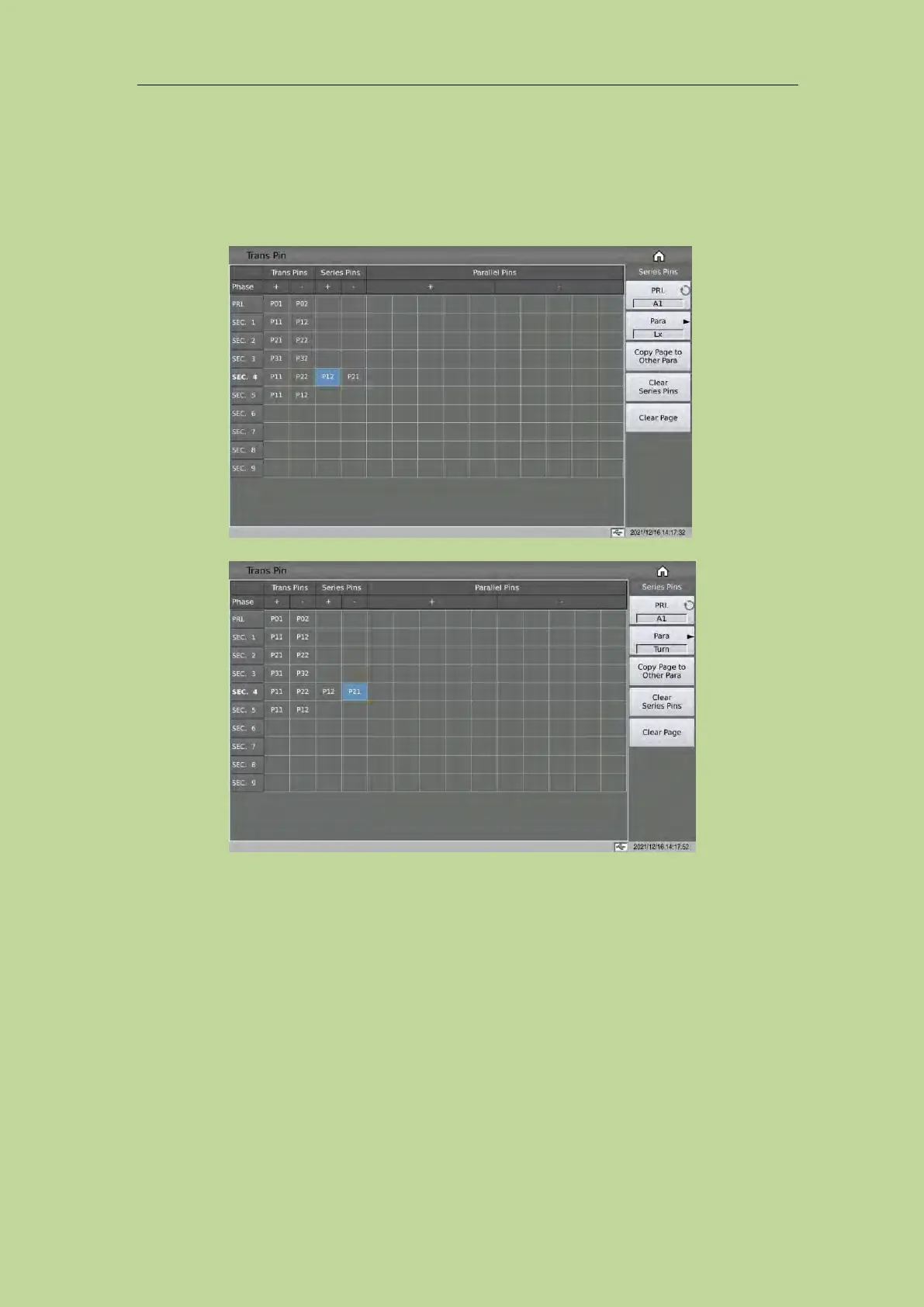

The above is: the short-circuit pin setting when series transformers Ns1 and Ns2 test Lx.
The above is: the short-circuit pin setting when series transformers Ns1 and Ns2 test TURN.
7.10.3 Parallel Pins Setup
Before setting the transformer parallel pins, you need to confirm the parameters for parallel testing.
For example, the TURN turns ratio needs to set the parallel pins. You can select the function Turn in
the parameter menu bar, and then input the parallel pins.
