the pins will be ignored.
3: Input part of continuous numbers and non-continuous numbers "1,2,3,4,5,7,9", the continuous
part is the same as step 2, the discontinuous part is the same as step 1, press ENTER to confirm, and
finally displayed in the table The data is (1~5,7,9).
7.11.5 Cx Test Conditions Setup

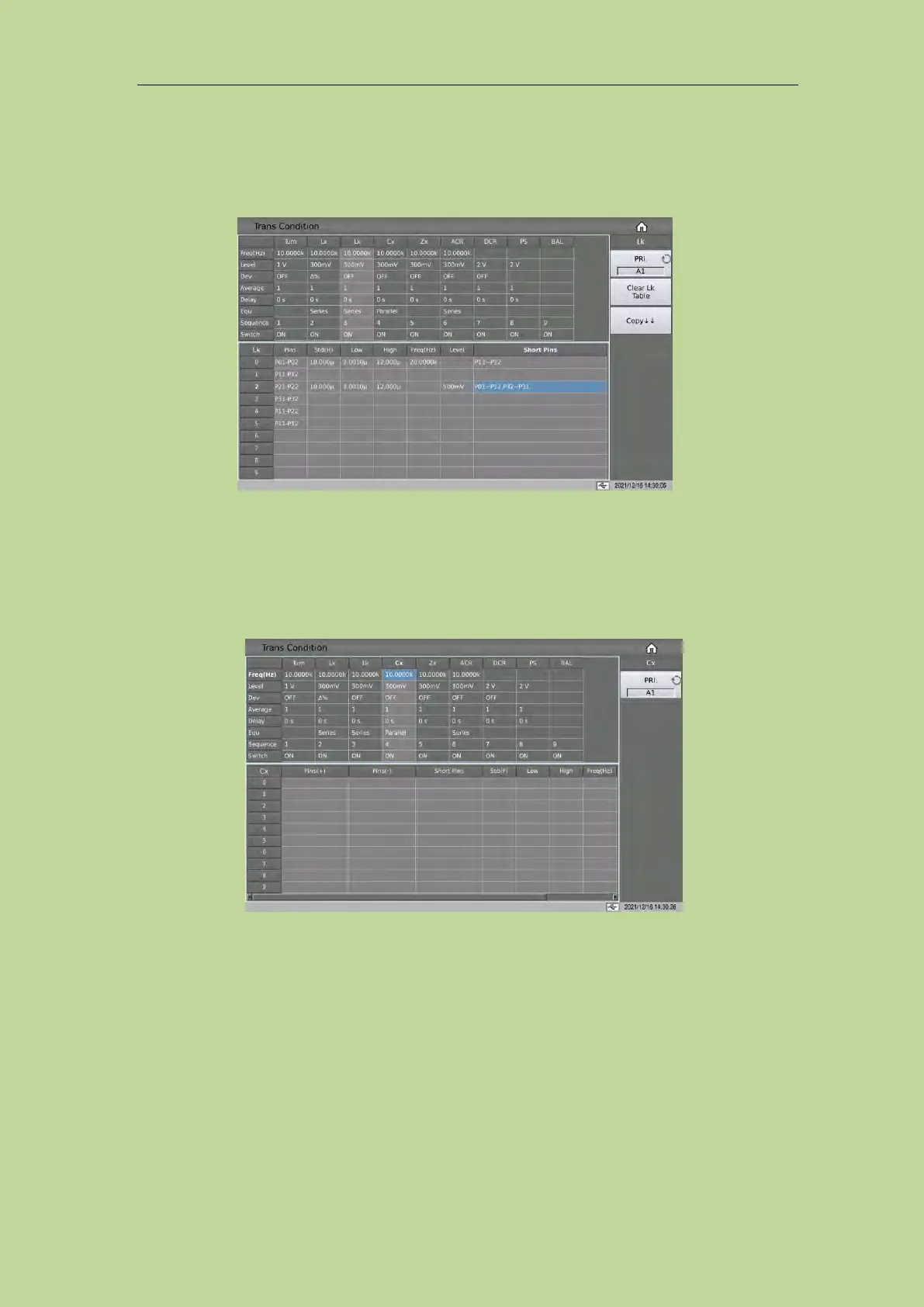

On the <Trans Condition> page, touch or move the cursor to the Cx column of the test condition
table to set the Cx parameters.
7.11.5.1 Cx Limit Setup
The following figure shows the example transformer. Test the capacitance between two turns: Np1
and Np2.
