Tonghui TH2840 Series - Accuracy Factor

124
8.3.11 Accuracy factor

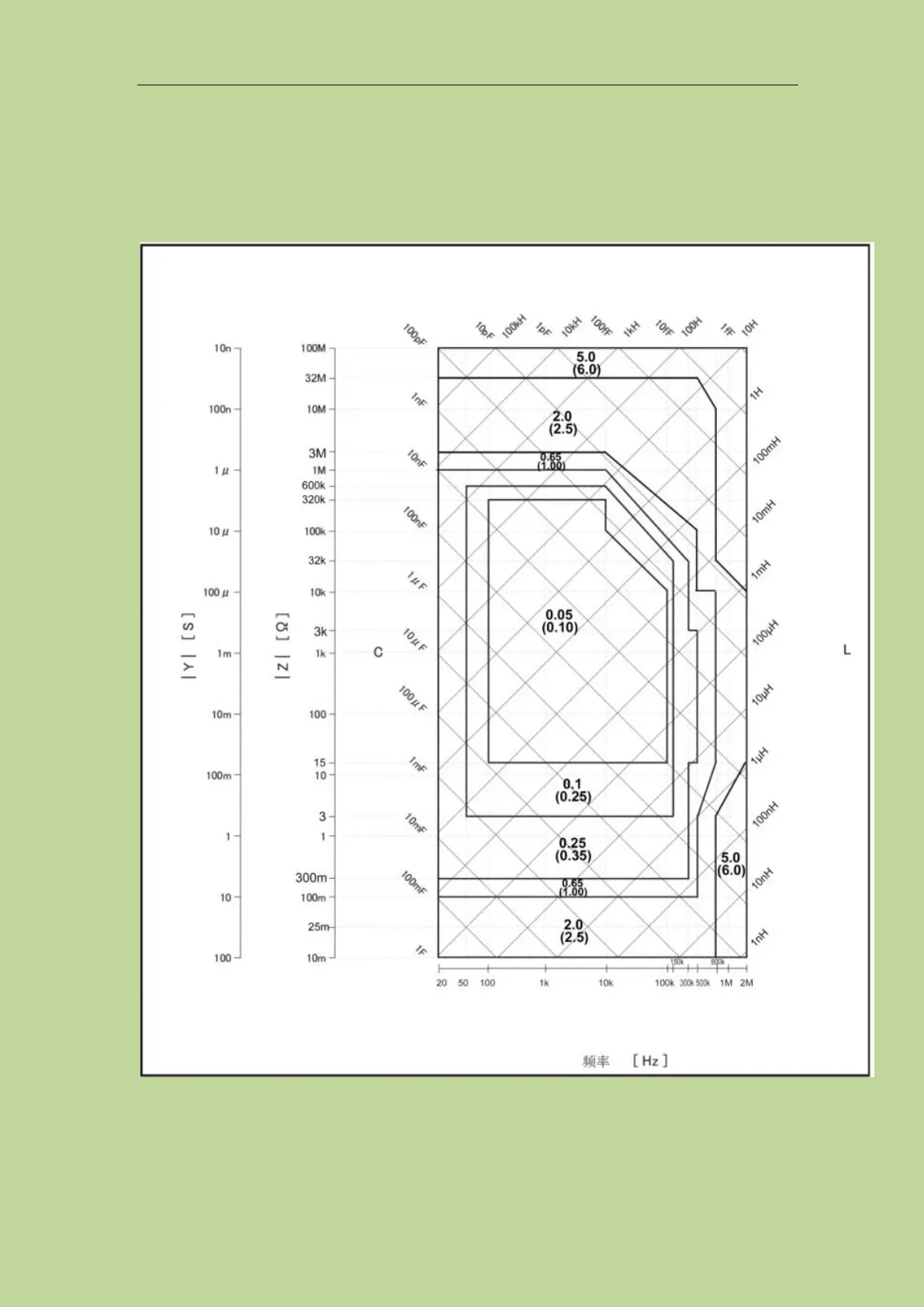

8.3.11.1 Figure A Basic measurement accuracy factor A
In Figure A, on the boundary line, choose the smaller value.
The basic measurement accuracy factor A can be obtained by the following methods:
In figure A, two values of basic measurement accuracy A are included in each frame. For example,
the two values in the middle frame are 0.05(top) / 0.1(bottom).
