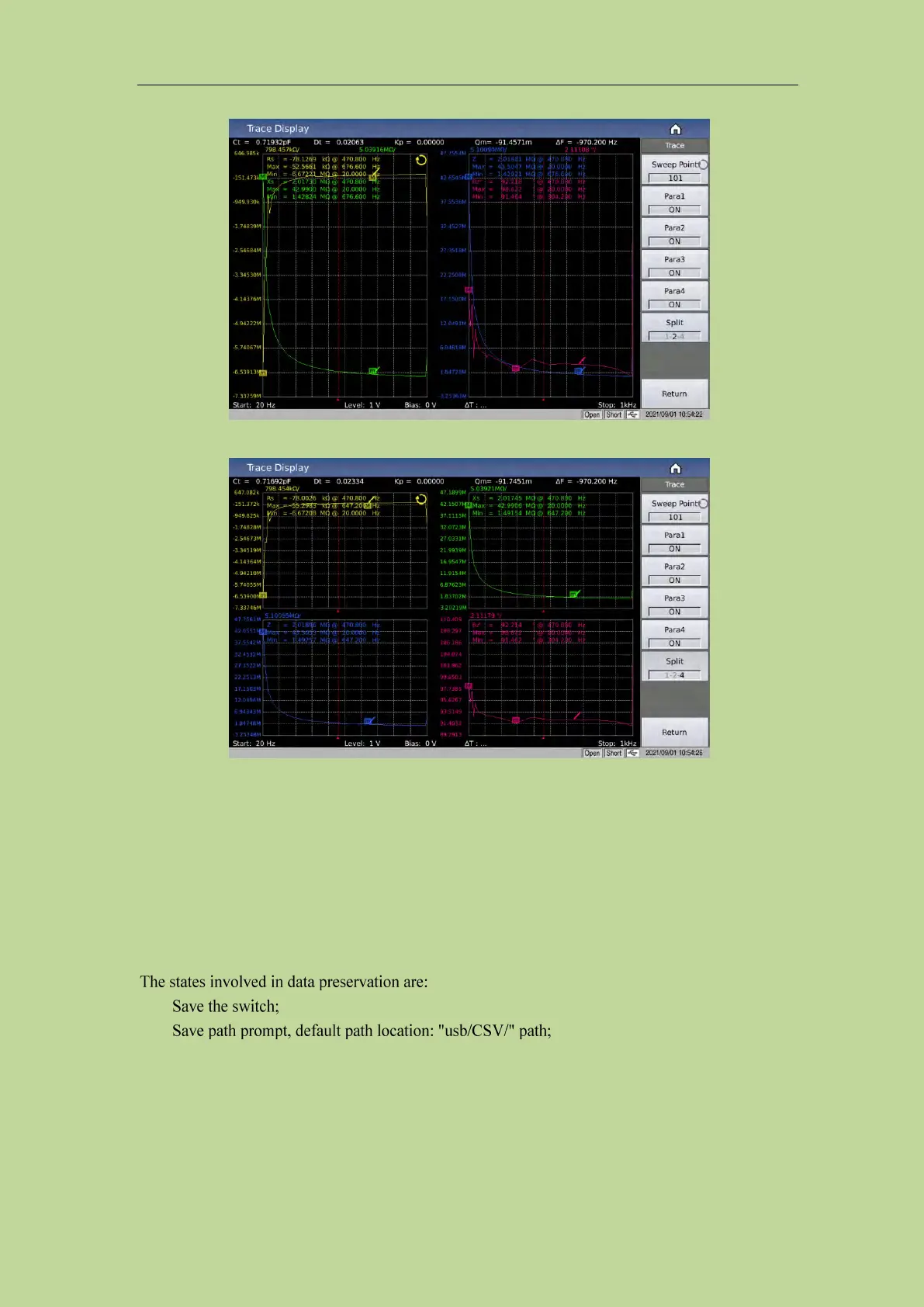

Figure 3-3-4 Display effect of 2-split screen
Figure 3-3-5 Display effectof 4-split screen
3.3.5 USB flash drive data save
Use the USB flash drive to save the test results. The test results and formats that can be saved are as
follows:
Time,pt ,x,P1,P2,P3,P4,COMP
----Respectively correspond to test time, point index, x-axis size, parameter 1~4 result
The naming rule of the file name is rx+machine number+date, such as:
trace-SN12345678-20210811.csv,
it is used to save the curve data to the USB flash drive, the function menu is shown in Figure 3-3-6:
