Tonghui TH2840 Series - Operation Example of Testing Capacitance by Multi-Frequency List Sweep; Test Condition; Operation Steps

58

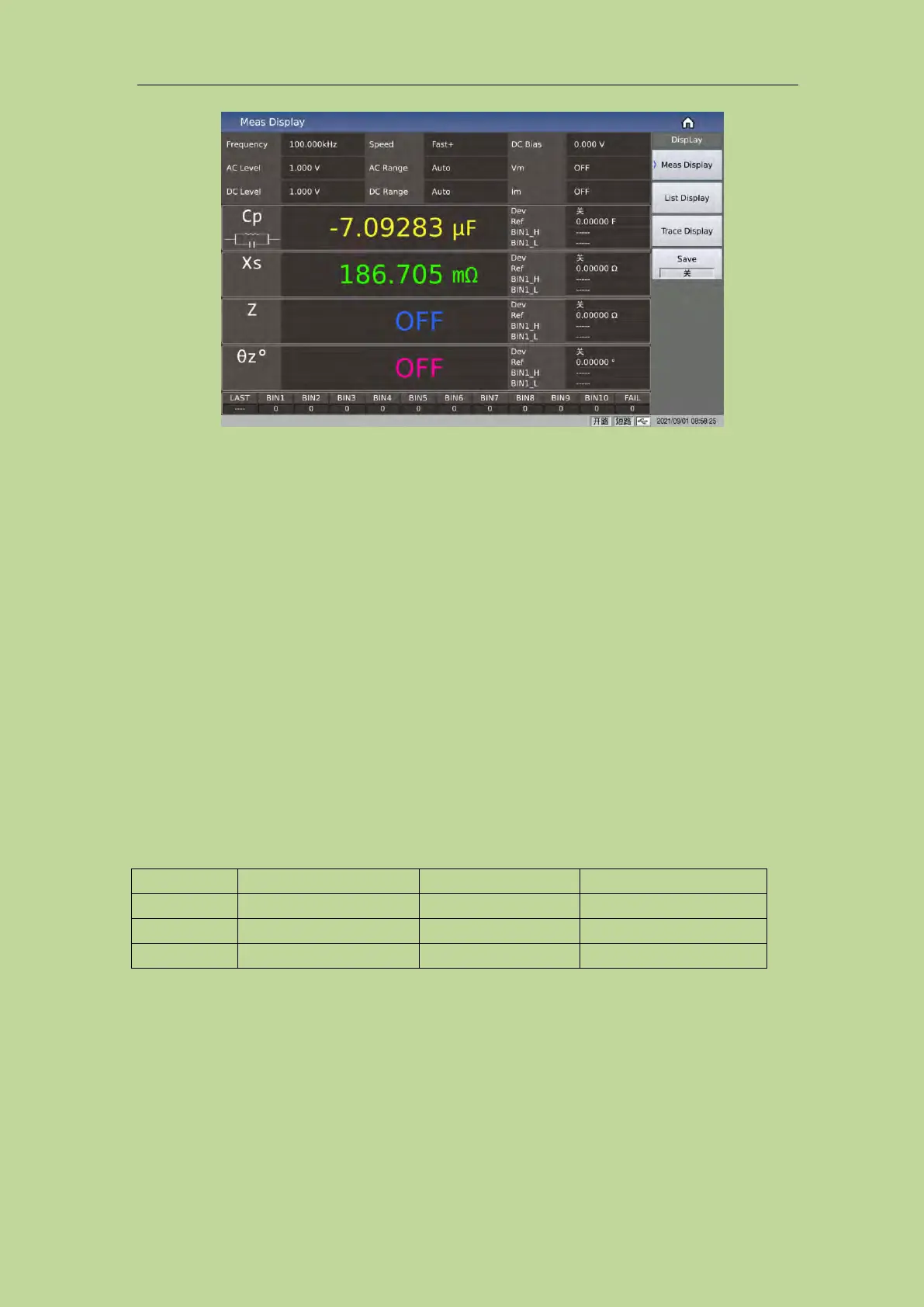

If the test result is obviously incorrect, please check the following items.
a) Check the tested inductance is in good connection with the test fixture or not.
b) Check the test fixture is in good connection with the test terminals of the instrument or not.
c) Redo the open/short correction.
NOTE: When the sweep open/short correction is used, the point-frequency correction function
should be set as OFF. Refer to Correction operation in this chapter.
5.5 Operation example of testing capacitance by multi-frequency list
sweep
5.5.1 Test condition
Function: Cp, D
Level: 1Vrms
Other parameters
Frequency
Compare parameter
Low limit
High limit
1kHz
Cp (capacitance)
325.0nF
333.0nF
10kHz
D（Dissipation）
0.0001
0.0003
100kHz
D（Dissipation）
0.0060
0.0100
Sound: HIGH LONG
Alarm mode: OUT
5.5.2 Operation steps
Turn on the instrument.
