Tonghui TH2840 Series - Test Function

23

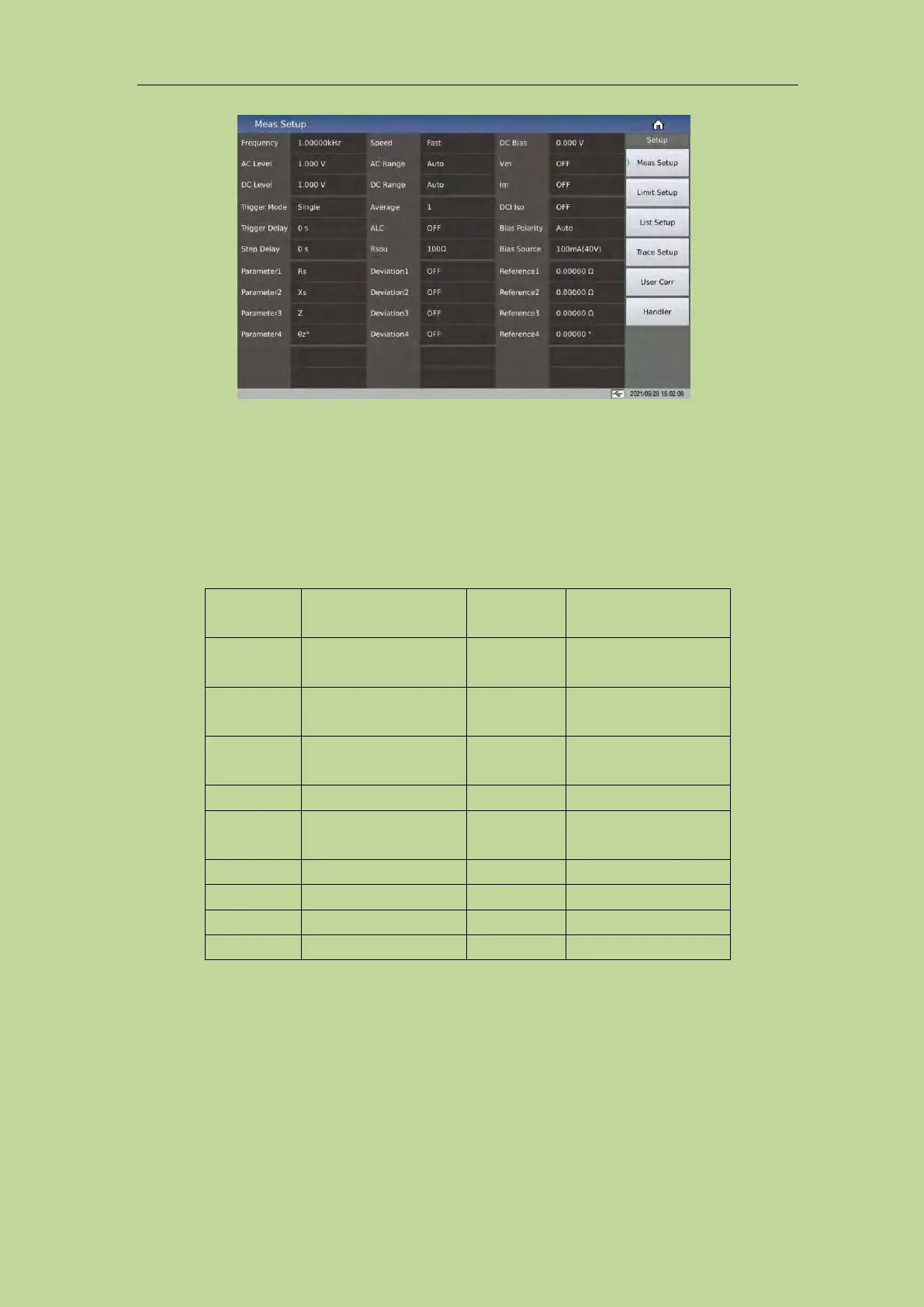

Figure 3-4-1 Measurement setting
3.4.1 Test function
Parameter setting attributes: enumerated type.
The four parameters of the impedance element can be measured at the same time in one
measurement cycle. The measurable parameters are as follows:
Measurement function parameter setting operation steps: touch (or use the cursor keys to move
the cursor to) the parameter name area corresponding to the test result, and select the setting in
the soft key area on the right according to the displayed optional parameters.
There is no restriction on the combination of the four parameters, and the combination can be
selected arbitrarily.
The four parameters can be set with independent display switches: that is, when the display
switch corresponding to the parameter is turned off, the corresponding result area will display
OFF to replace the test result display. The display switch function can be set in the parameter
setting area of the measurement display page.
Parameter
name
Parameter
meaning
Parameter
name
Parameter
meaning
Cp
Equivalent parallel
capacitance
Cs
Equivalent series
capacitance
Lp
Equivalent parallel
inductance
Ls
Equivalent series
inductance
Rp
Equivalent parallel
resistance
Rs
Equivalent series
resistance
Gp
Conductance
Bp
Susceptance
Z
Absolute value of
impedance
Y
Absolute value of
admittance
D
Loss factor
Q
Quality factor
θz°
Impedance degree
θz
Impedance radian
θy°
Admittance degree
θy
Admittance radian
X
Reactance
Rd
DC Resistance
