3.6.5 Parameter function
4 parameter functions, all of which can be set independently, and can also be quickly set to make
one of the conditions relatively consistent;

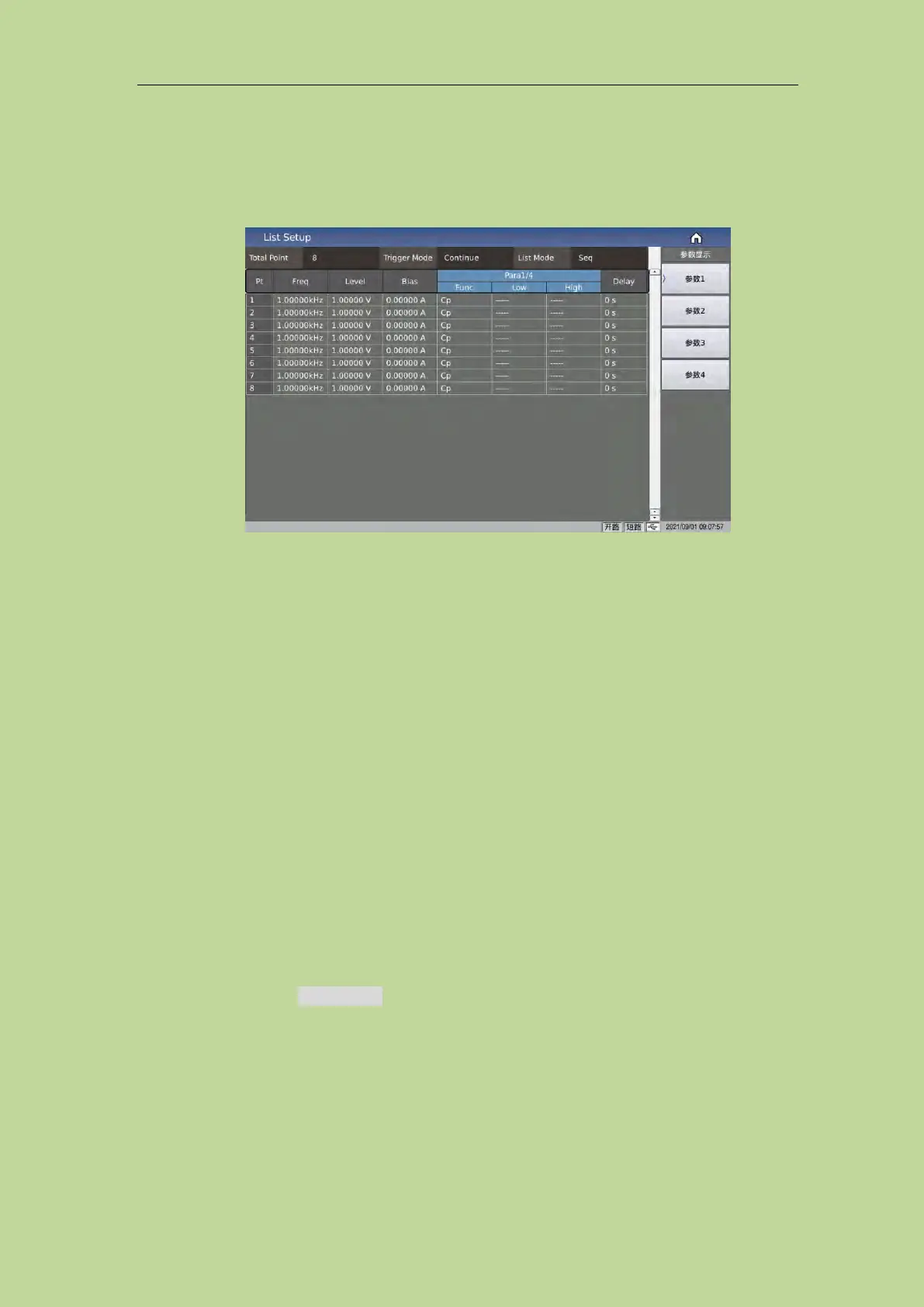

Figure 3-6-2 List parameter display menu
3.6.6 High/low limit
The upper and lower limits of the parameters can be set independently, and can also be set quickly
to make the settings have a certain relationship.
3.6.7 Delay
The delay parameter indicates the delay time from the completion of each sweep step measurement
to the next sweep measurement. It is mainly used to connect an external bias source (such as
TH1778) to adapt to the delay time setting required by the external bias current source. (Note: The
delay here can be accumulated with the delay in the measurement setting interface.)
3.7 Trace Setup
Press [Setup] and then Trace Setup to enter into the <Trace Setup> page as the following figure
shown.
