7.11.9 PS Test Conditions Setup

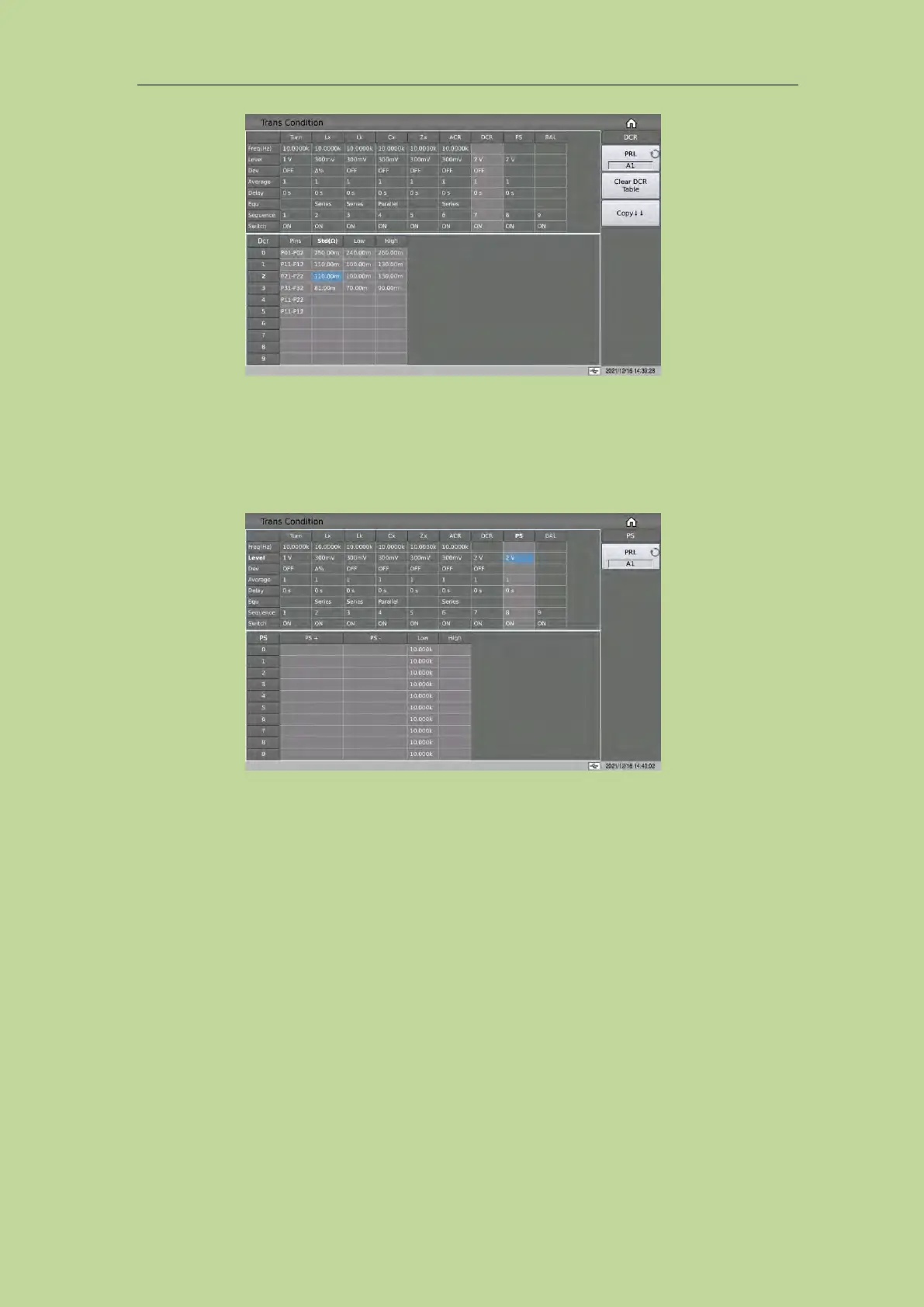

On the <Trans Condition> page of the transformer scan, touch or move the cursor to a column of PS
in the test condition table to set PS parameters.
7.11.9.1 PS Limit Setup
The PS limit setting table is used to set the positive and negative pins and upper and lower limits of
PS.
Touch the PS limit setting table, or move the cursor to the PS limit setting area, and use the numeric
keys, corresponding magnification or [ENTER] key to set.
The magnification corresponding to PS is M, k, μ, m, and the [ENTER] key is x1.
The default lower limit of PS is 10kΩ.
Note: In general testing, the upper limit does not need to be set, that is, there is no upper limit.
