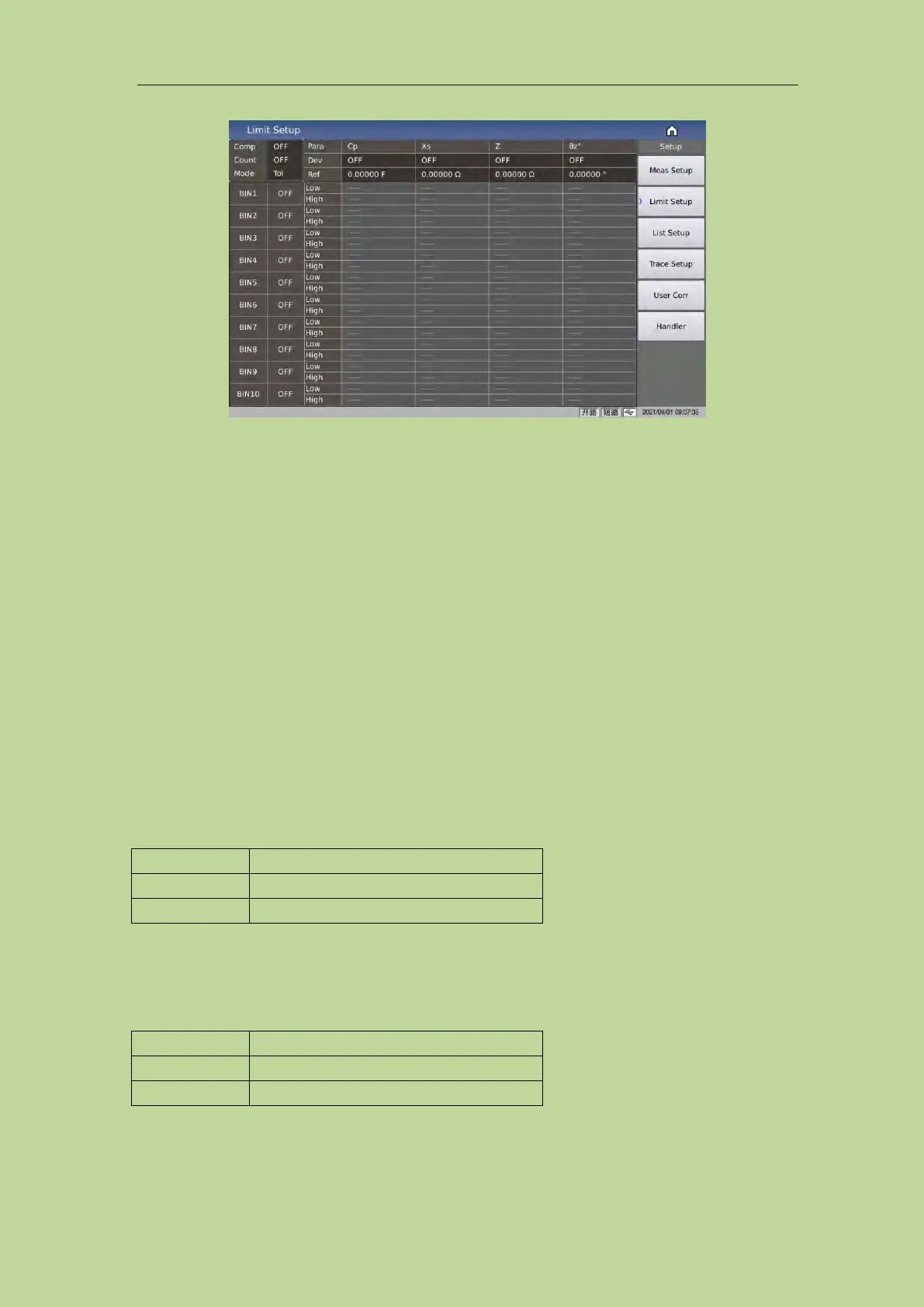

Figure 3-5-1 Limit setup
The comparator function of the instrument can be set on this page.
10 bin limits can be set, and the measured results can be sorted into up to 11 bins (BIN1 to BIN10
and BIN OUT).
Comparison ON/OFF (comparison function switch)
Count ON/OFF (comparison count switch)
Mode (comparison function limit mode)
Parameters (test parameters)
Deviation (deviation mode)
Reference (reference value in deviation mode, namely nominal value)
Switches for each sorting bin
Lower limit value of each BIN (Low)
Upper limit value of each BIN (High)
3.5.1 Compare switch
Parameter setting attributes: enumerated type.
Setting item
Meaning description
OFF
Turn off the compare function
ON
Turn on the compare function
3.5.2 Compare count switch
Parameter setting attributes: enumerated type.
Setting item
Meaning description
OFF
Turn off the compare count function
ON
Turn on the compare count function
