7.11.10 BL Test Conditions Setup

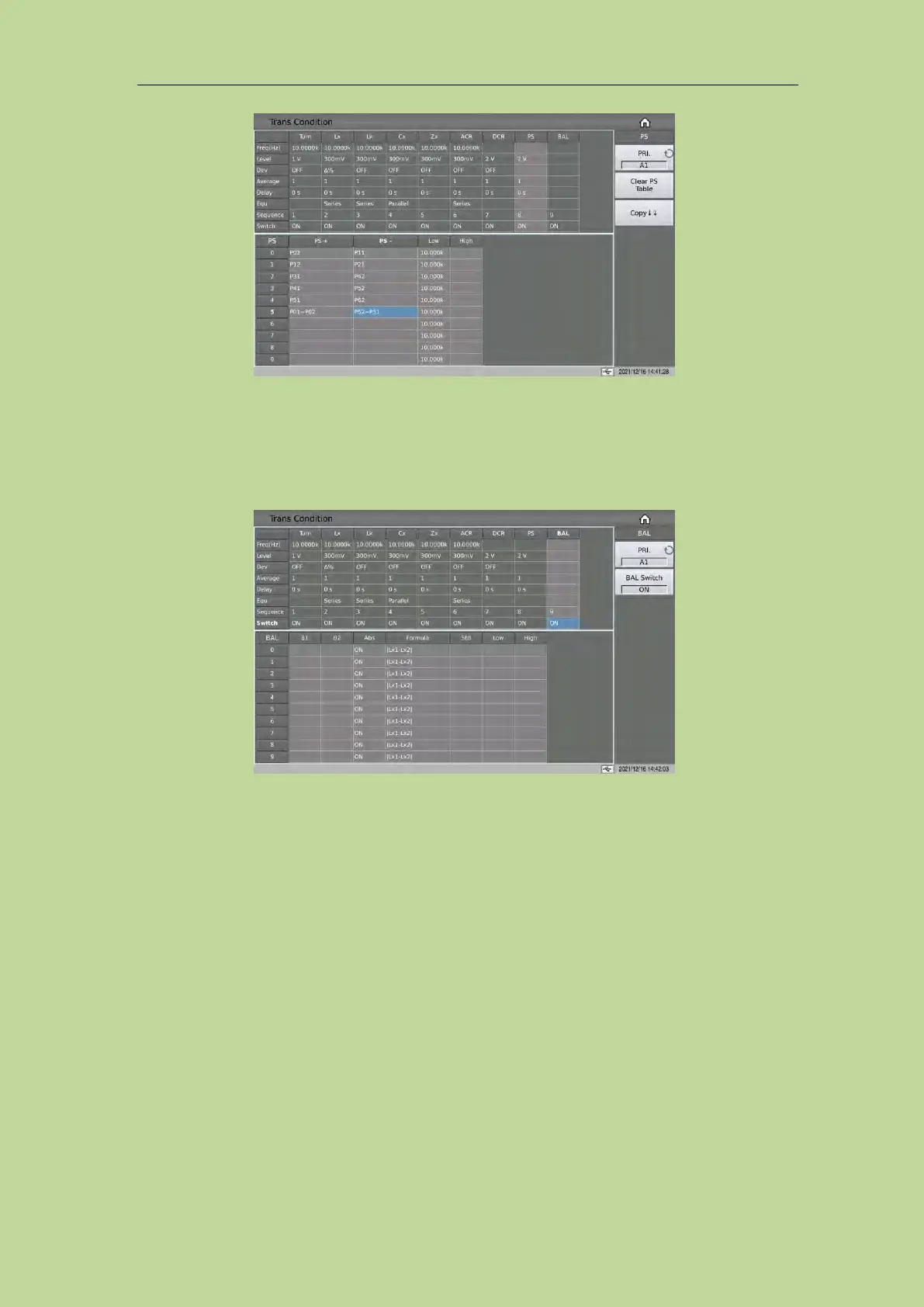

On the <Trans Condition> page of the transformer scan, touch or move the cursor to a column of
BAL in the test condition table to set BAL parameters.
7.11.10.1 BL Test Setup
BAL (balance) is a parameter used to compare the consistency of the two windings of a transformer.
BAL upper and lower limits, balance windings, absolute values, and balance formulas can be set.
Touch the BAL table, or move the cursor to the BAL test setting area, and use the numeric keys,
corresponding magnification or [ENTER] key to set.
The magnification corresponding to BAL is p,n,μ,m, and the [ENTER] key is x1.
