7.11.4.3 Lx multi-level Setup

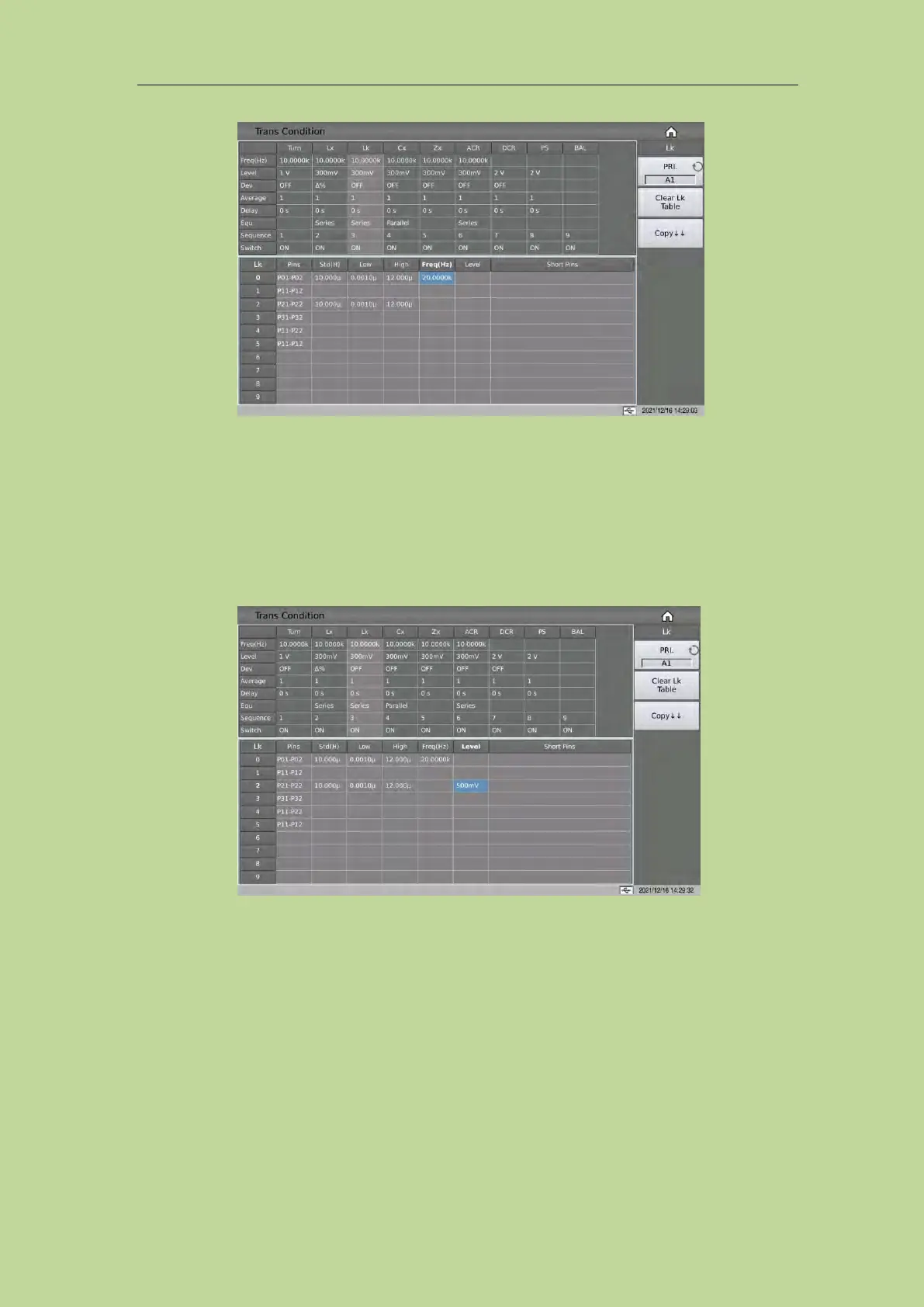

If the user needs to use different levels to test different Lk pins of the transformer, in the transformer
Lk limit setting table, touch or move the cursor to the Lk level area. After inputting the level in this
area, the test will automatically use here. If the parameter is not set, the level of Lk in the test
condition table will be used.
7.11.4.4 Lk Turn-Ratio Short Pins
When setting the leakage inductance short pins, you can use the soft key. and ~ to input multiple
pins, the maximum number of pins can be saved here is 48.
Example:
1: Input a discontinuous number "1, 3, 5, 7, 9" and use the soft key. to separate each number, press
ENTER to confirm, the final data displayed in the table is (1, 3, 5, 7, 9).
2: Input a continuous number of "1,2,3,4,5,6,7,8,9", first input the number "1", then press the soft
key ~, finally input "9", press the ENTER key to confirm After that, the data finally displayed in the
table is (1~9).
Note: The maximum supported number of leakage inductance short pins is 48, and the latter part of
