214

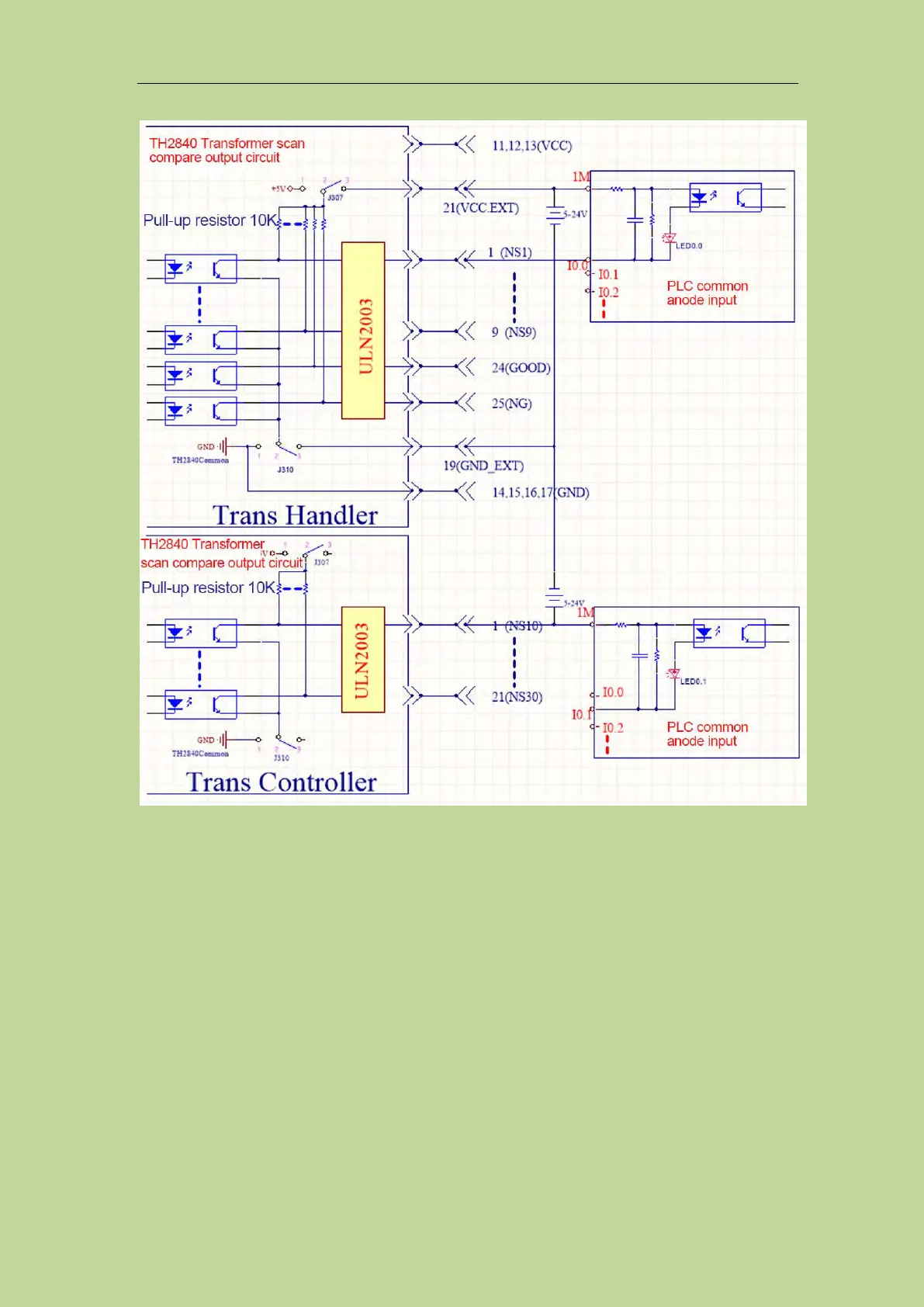

Figure 10-16 PLC wiring diagram where handler interface and input circuit are common anode
Figure 10-16 Description: The wiring method provided in this figure is a typical connection method,
and it needs to be flexibly applied according to the actual situation in practical application.
