Installation
Step 2: Set Up LAN Connection to Strata CTX
Strata CTX Programming - Part 2: CTX WinAdmin Programming 04/03 3-9
Installation
Step 2D: Set Up IP Address of CTX WinAdmin PC NIC
(Windows 2000)
Follow the steps below to set up PC Network settings on your WinAdmin PC.
Note This setup is only for direct connection to the Strata CTX or for simple Hub or LAN connections.
For more complex LAN, WAN or Internet connections, refer to “Wide Area Networks and/or
Internet Connections” on page 3-5.
1. Click Start > Settings > Network and Dial-up
Connections > Local Area Connections.
2. Right click on Local Area Connections to select
Properties.
3. Local Area Connection Properties Connection screen
displays. Ensure Internet Protocol
(TCP/IP) is checked. Highlight TCP/IP, then click the
Properties button.

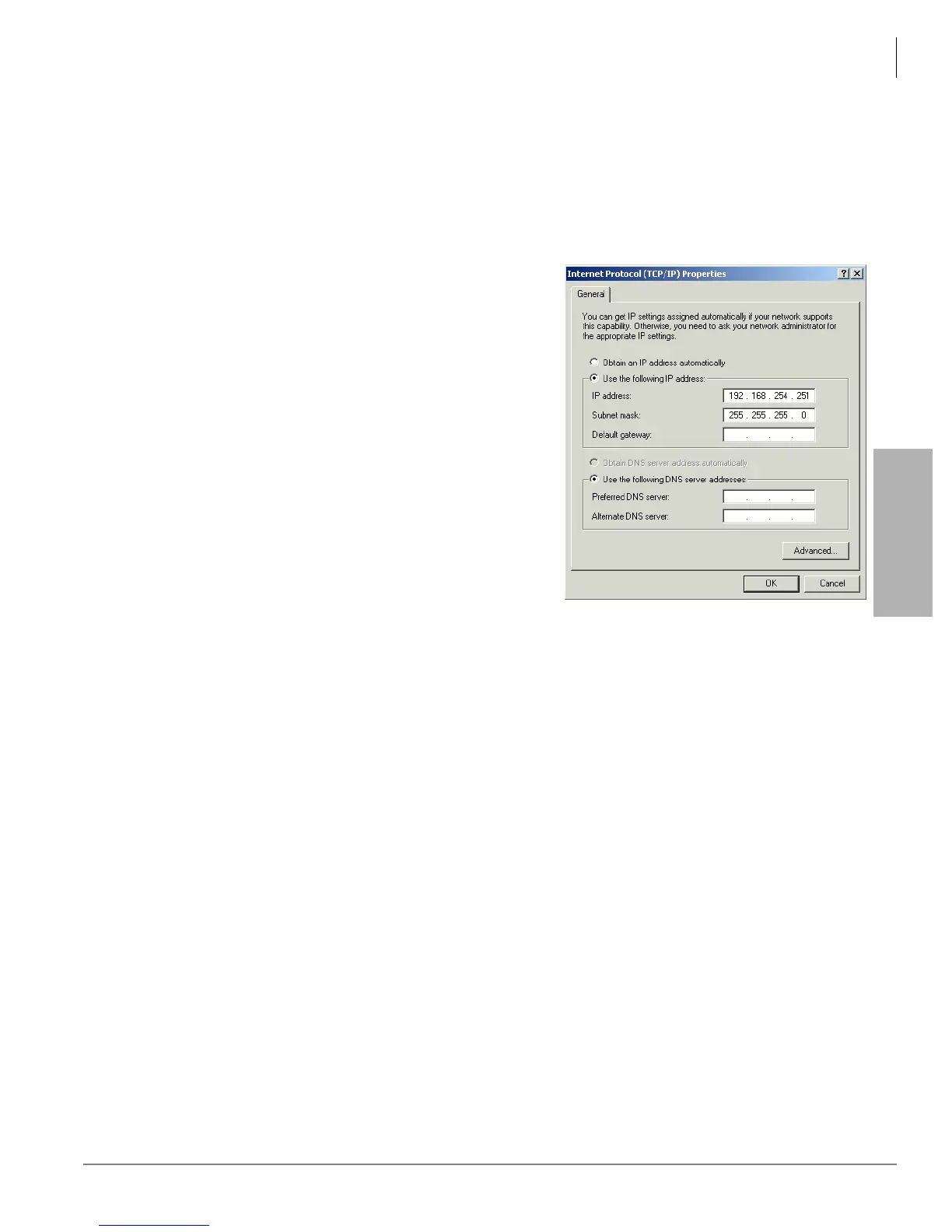

4. On the General tab click the “Use the following IP
Address” radio button (shown right).
5. In the IP address field enter a.b.c.x
where a.b.c = 0~255 and x = 0~252.
Example: 192.168.254.x.
Note The first three octets a.b.c. have to be exactly the
same as the first three octets of the CTX IP address
set in Sub-step 7 of Step 2B. x cannot be 253 or
above and it cannot be equal to octet d of the CTX
TCP/IP address set in Sub-step 7 of Step 2B. This is the static IP Address of your PC.
6. Enter e.f.g.h. in the Subnet Mask field. The Subnet Mask should be exactly the same as the CTX
Subnet Mask set in Sub-step 9 of Step 2B.
Possible Values of Subnet mask octets e.f.g.h = 0~255
Example: 255.255.255.0
7. Leave the DNS Server addresses blank.
8. Click OK (to accept all screens).
9. Go to Step 4: Establish Communication with Strata CTX on page 3-14.
CTX WinAdmin is now ready to communicate and program your Strata CTX System.
