34 • Creating a Removal Torque Test User Guide Ver. 7.1.0 2100 Cap Inspector

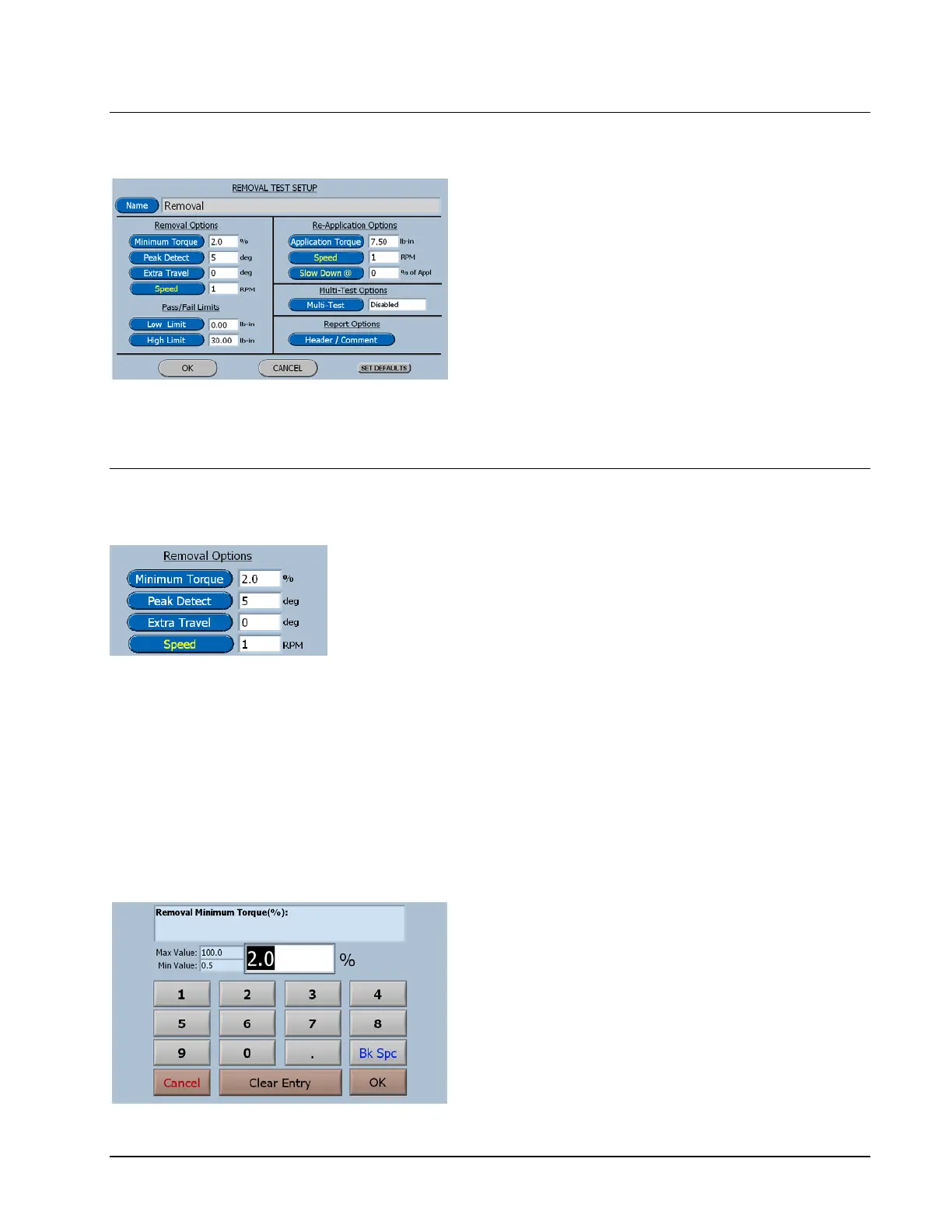

Removal Test Setup Screen
The Removal Test Setup screen is divided into
5 groupings.
1. Removal Options
2. Pass/Fail Limits
3. Re-Application Options
4. Multi-Test Options
5. Report Options
Removal Options
Minimum Torque: The torque value that must be exceeded
before the removal torque is considered valid.
Peak Detect: The number of degrees of rotation after a peak
has been measured for the software to accept this peak as the
removal torque value.
Extra Travel: The distance to drive in the opening direction
to leave the cap loose.
Speed: The drive speed to be used for the test.
Removal Minimum Torque
Observe the minimum and maximum
values.
To input a value, just start typing. The first key
selected will overwrite the first highlighted
value on the screen. When the desired value
has been keyed in press OK to save the new
value.
