Vibrac 2100 - Bridge Pass; Fail Limits

User Guide Ver. 7.1.0 2100 Cap Inspector Creating an ROPP CAP Test • 65

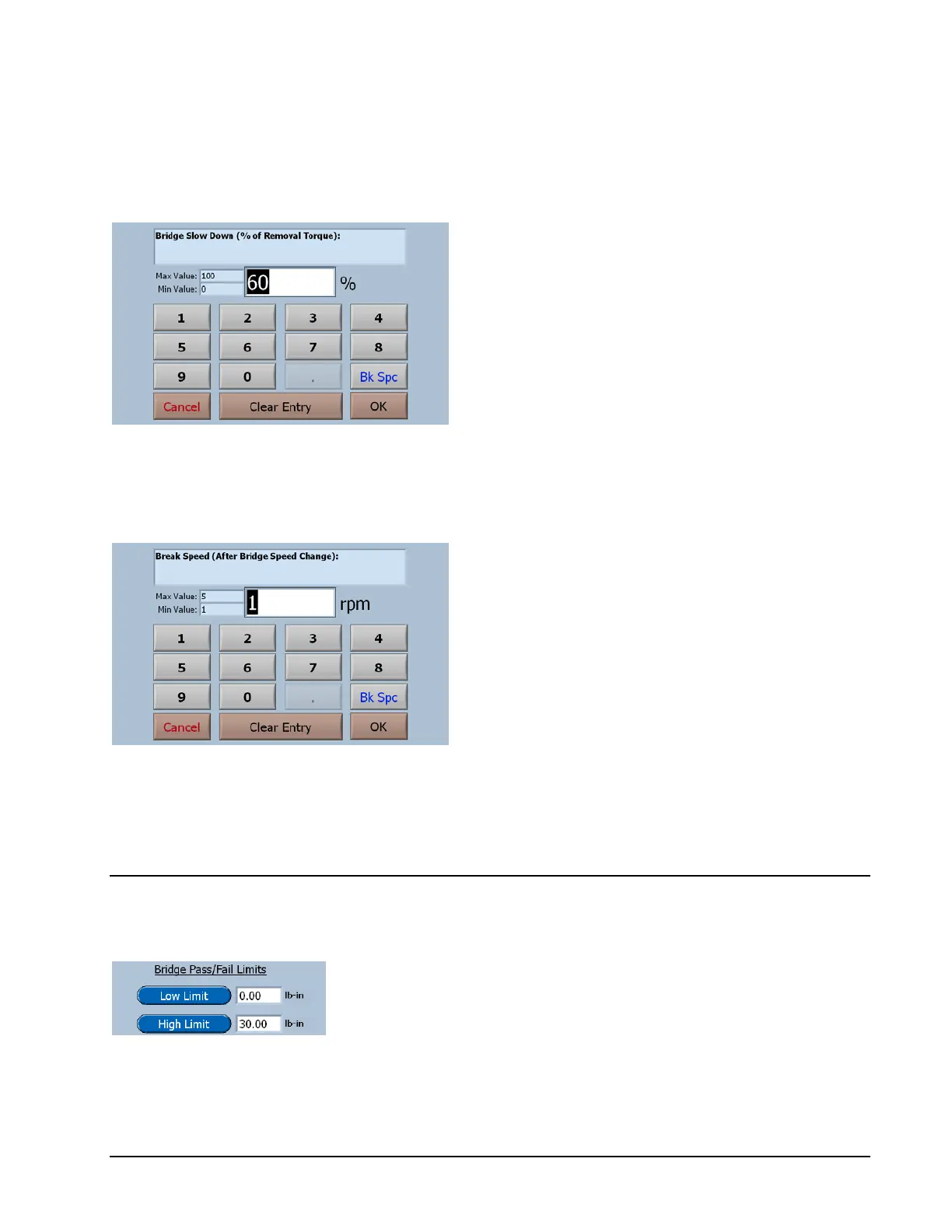

Bridge Change Speed AT
Observe the minimum and maximum
values.
To input a value, just start typing. The first key
selected will overwrite the first highlighted
value on the screen. When the desired value
has been keyed in press OK to save the new
value.
Bridge Break Speed
Observe the minimum and maximum
values.
To input a value, just start typing. The first key
selected will overwrite the first highlighted
value on the screen. When the desired value
has been keyed in press OK to save the new
value.
Bridge Pass / Fail Limits
Low Limit: The Torque value that must be exceeded for the
test to pass.
High Light: The torque value that must not be exceeded for
the test to pass.
