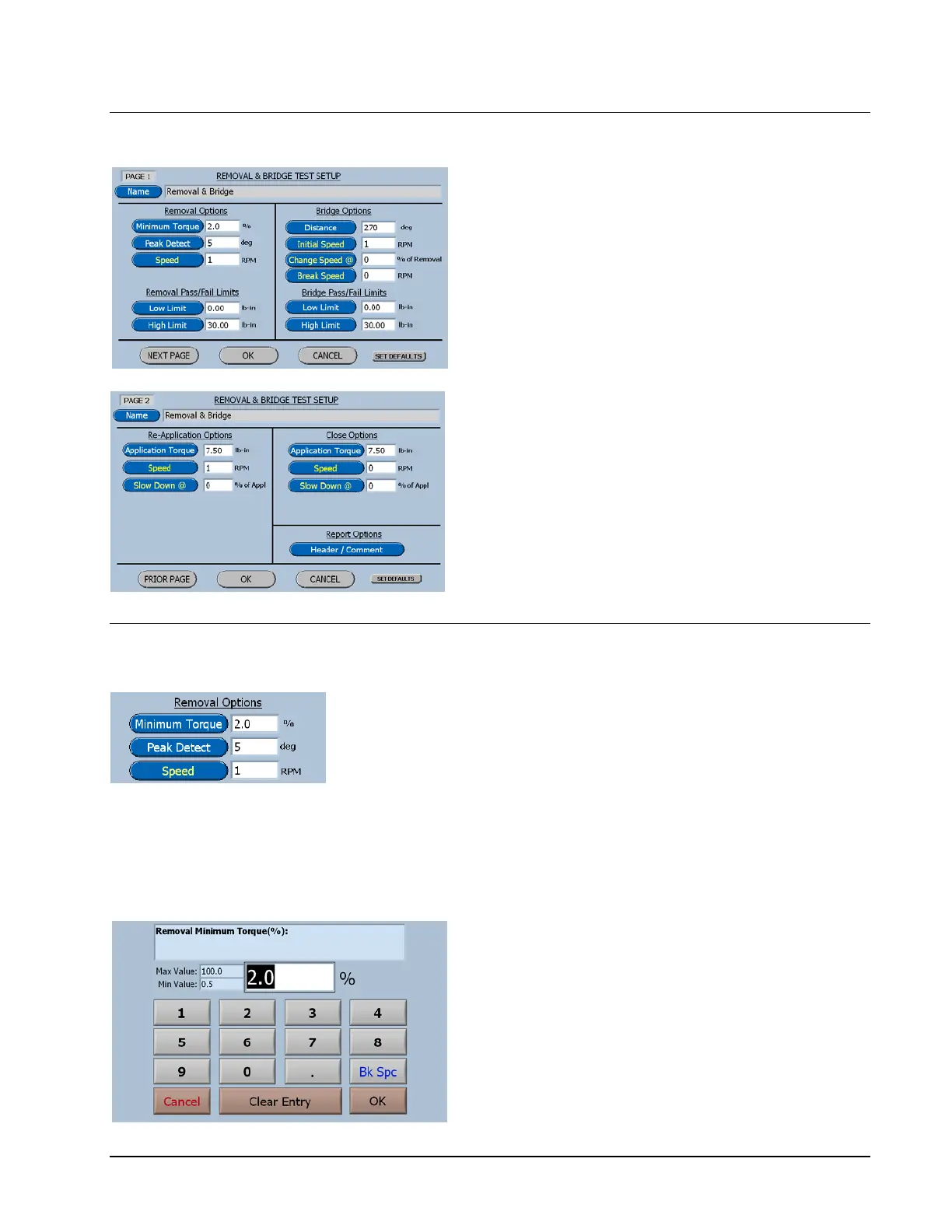

Removal and Bridge Test Setup Screens
The Removal and Bridge test setup screen,
page 1, is divided into 4 groupings.
1. Removal Options
2. Removal Pass / Fail Options
3. Bridge Options
4. Bridge Pass / Fail Options
The Removal and Bridge test setup screen,
page 2, is divided into 3 groupings.
1. Re-Application Option
2. Close Option
3. Report Options
Removal Options
Minimum Torque: The torque value that must be exceeded
before the removal torque is considered valid.
Peak Detect: The number of degrees of rotation after a peak
has been measured for the software to accept this peak as the
removal torque value.
Speed: The drive speed to be used for the test.
Removal Minimum Torque
Observe the minimum and maximum
values.
To input a value, just start typing. The first key
selected will overwrite the first highlighted
value on the screen. When the desired value
has been keyed in press OK to save the new
value.
To Next Page
